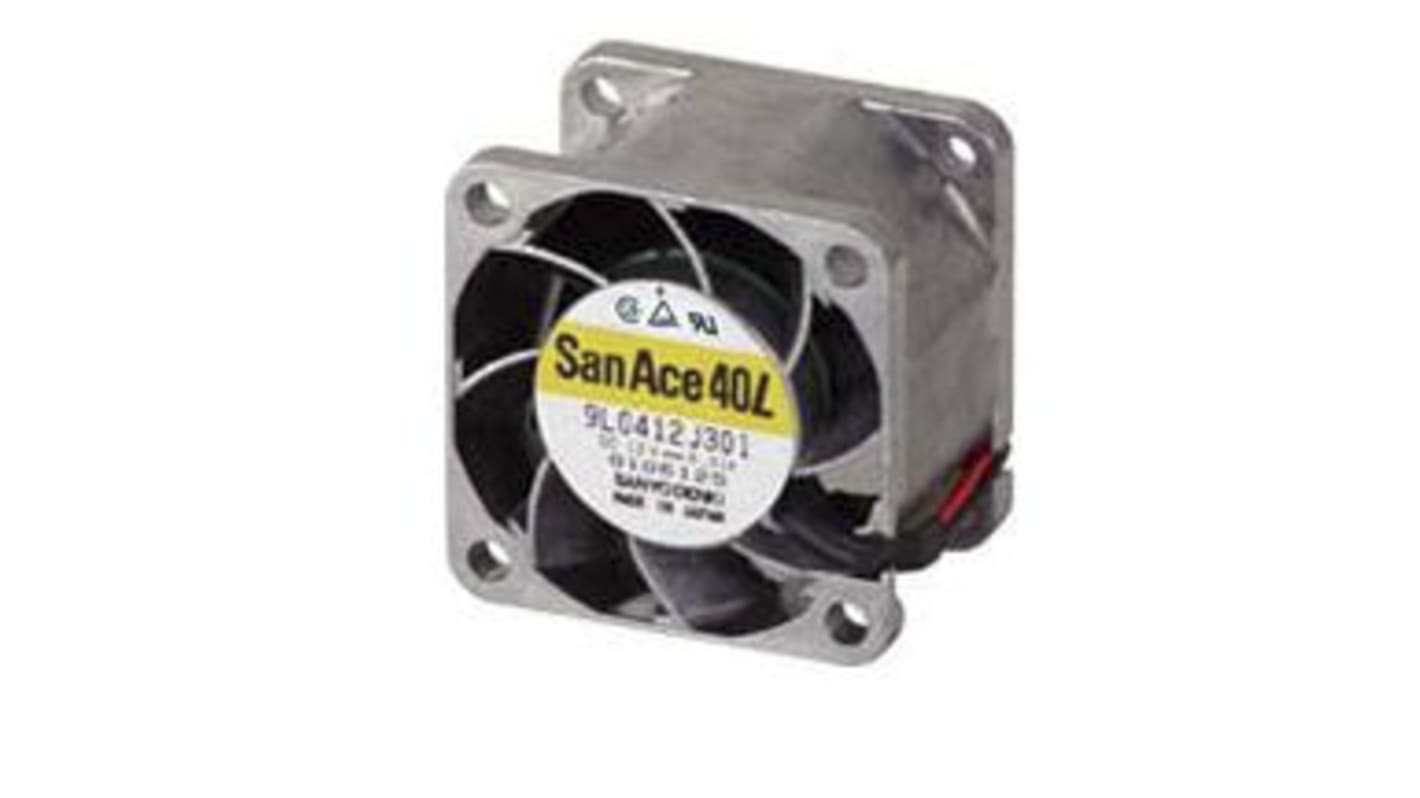

Sanyo Denki 9L Series Axial Fan, 12V dc, 9.6 m³/h, 540 mW, 40 mA Max 28 mm 40mm 40 mm
- RS Stock No.:
- 181-0539
- Distrelec Article No.:
- 301-40-249
- Mfr. Part No.:
- 9L0412M301
- Brand:
- Sanyo Denki
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£20.89
(exc. VAT)
£25.07
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 32 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £20.89 |
| 5 - 9 | £19.63 |
| 10 - 24 | £18.39 |
| 25 - 49 | £17.55 |
| 50 + | £15.88 |
*price indicative
- RS Stock No.:
- 181-0539
- Distrelec Article No.:
- 301-40-249
- Mfr. Part No.:
- 9L0412M301
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Product Type | Axial Fan | |
| Supply Voltage | 12V dc | |
| Power Consumption | 540mW | |
| Maximum Current | 40mA | |
| Air Flow | 9.6m³/h | |
| Noise Level | 19dBA | |
| Fan Speed | 6300rpm | |
| Terminal Type | Screw | |
| Direction of Curve | Backward | |
| Bearing Type | Ball | |
| Fan Frame Type | Square | |
| Fan Frame Size | 40 mm | |
| Depth | 40mm | |
| Series | 9L | |
| Width | 40mm | |
| Standards/Approvals | RoHS | |
| Height | 28mm | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Product Type Axial Fan | ||
Supply Voltage 12V dc | ||
Power Consumption 540mW | ||
Maximum Current 40mA | ||
Air Flow 9.6m³/h | ||
Noise Level 19dBA | ||
Fan Speed 6300rpm | ||
Terminal Type Screw | ||
Direction of Curve Backward | ||
Bearing Type Ball | ||
Fan Frame Type Square | ||
Fan Frame Size 40 mm | ||
Depth 40mm | ||
Series 9L | ||
Width 40mm | ||
Standards/Approvals RoHS | ||
Height 28mm | ||
- COO (Country of Origin):
- PH
Run continuously for more than 20 years, and are well suited for equipment that must operate without maintenance for extended periods. For use with servers, communications equipment and industrial equipment.
