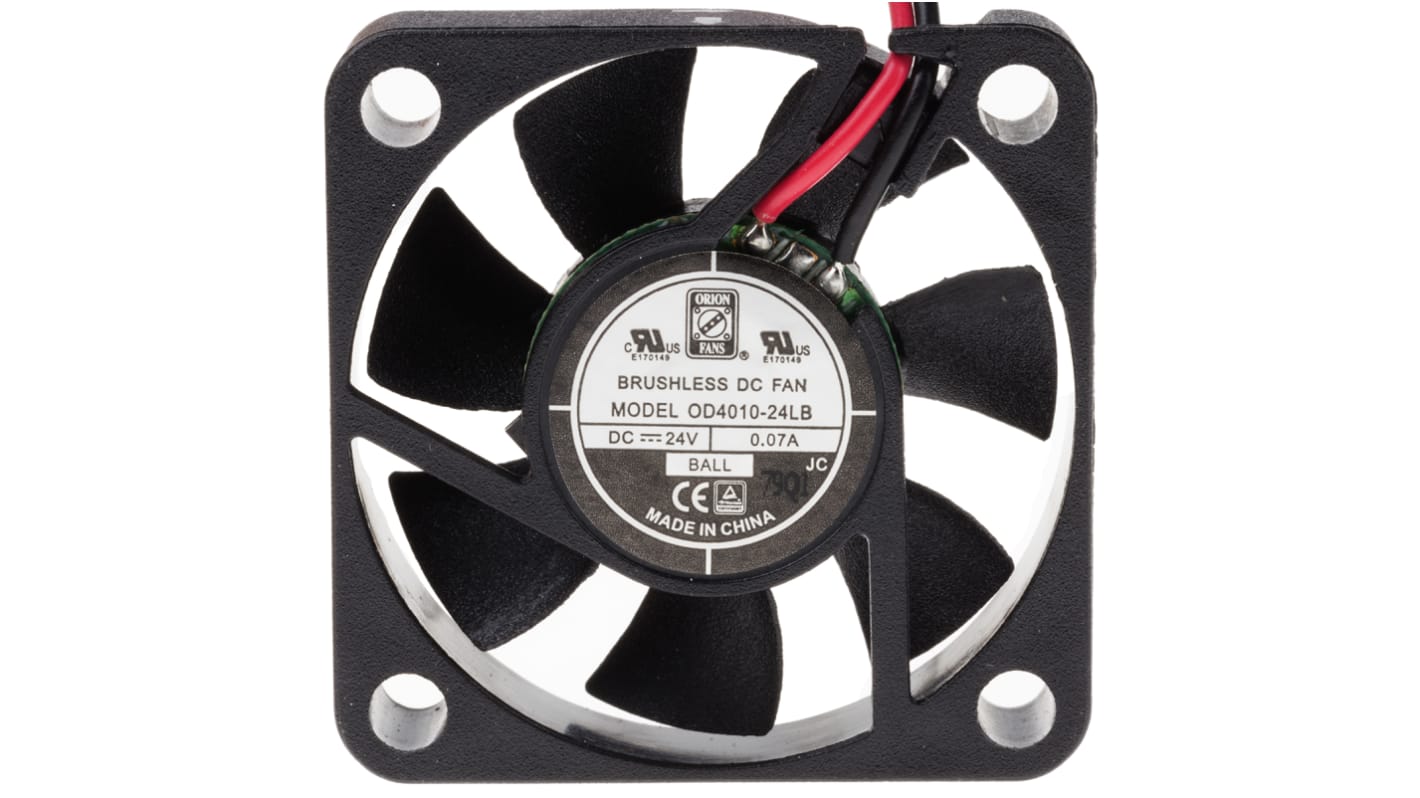

RS PRO Axial Fan, 24 V dc, DC Operation, 8.5m³/h, 1.68W, 70mA Max, 40 x 40 x 10mm

View all Axial Fans
Save 20% when you buy 50 units

Subtotal (1 unit)*

£14.30

(exc. VAT)

£17.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 524 unit(s) ready to ship
  • Plus 94 unit(s) ready to ship from another location
  • Plus 126 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£14.30
5 - 9£13.16
10 - 24£12.59
25 - 49£11.88
50 +£11.37

*price indicative

RS Stock No.:
144-2036
Distrelec Article No.:
304-03-949
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Supply Voltage

24 V dc

Height

40mm

AC or DC Operation

DC

Power Consumption

1.68W

Width

40mm

Maximum Current

70mA

Depth

10.5mm

Dimensions

40 x 40 x 10mm

Termination Type

Lead Wire

Air Flow

8.5m³/h

Noise Level

14dB

Fan Speed

4200rpm

Direction of Curve

Forward

Sensor Type

PWM, Tachometer

Bearing Type

Ball

COO (Country of Origin):
CN

RS PRO DC Axial Fans


Brought to you by RS Pro, these axial fans are a perfect choice for cooling applications. With a fully integrated electronic commutation, this axial fan provides a durable and smooth airflow to the device it is cooling. Establishing the relevant axial fan needed, the RS Pro series of DC Brushless fans are designed to be up there with the best. All models are highly reliable and excellent quality.

Features and Benefits:
• PBT Thermoplastic casing
• Square orientation
• Can be mounted in a horizontal and vertical position
• Low noise levels
• Smooth and efficient air flow

How noisy are these fans?
Due to the low decibel levels these Axial Fans produce, they are non-intrusive in quitter environments. As an example, a whisper would register as 30 dB, the highest decibel level of this entire RS Pro range would register at 51 dB, the lowest being 18. Meaning these can be classed as whisper quiet.

What are axial fans?
Axial fans are a type of fan used within everyday applications, such as air conditioners and computers. They cause both air and gas (depending on the application) to flow directly through it in an axial direction. Allowing the air/gas flow to be axial and both entry and exit. You would find RS Pro axial fans used in everyday devices, such as fridges, engines and PCs.

Do these fans use ball bearings or sleeve bearings?
These axial fans use ball bearings. Ball bearings are usually the most common choice within axial fans. this is mainly due to their reputation of an excellent service life, ball bearing fans are known to run at full speed with no interruptions for many years. If your axial fan needs to be mounted in a position where the blades are facing in an awkward direction, ball bearing internals mean the fan can be mounted in any axial position.

Applications:
• Ceiling fan/ventilation
• Desktop computers
• Motor engines (radiator in a car)
• Generators
• Air compressors

Broad AC fan selection, short lead times, competitive pricing.
