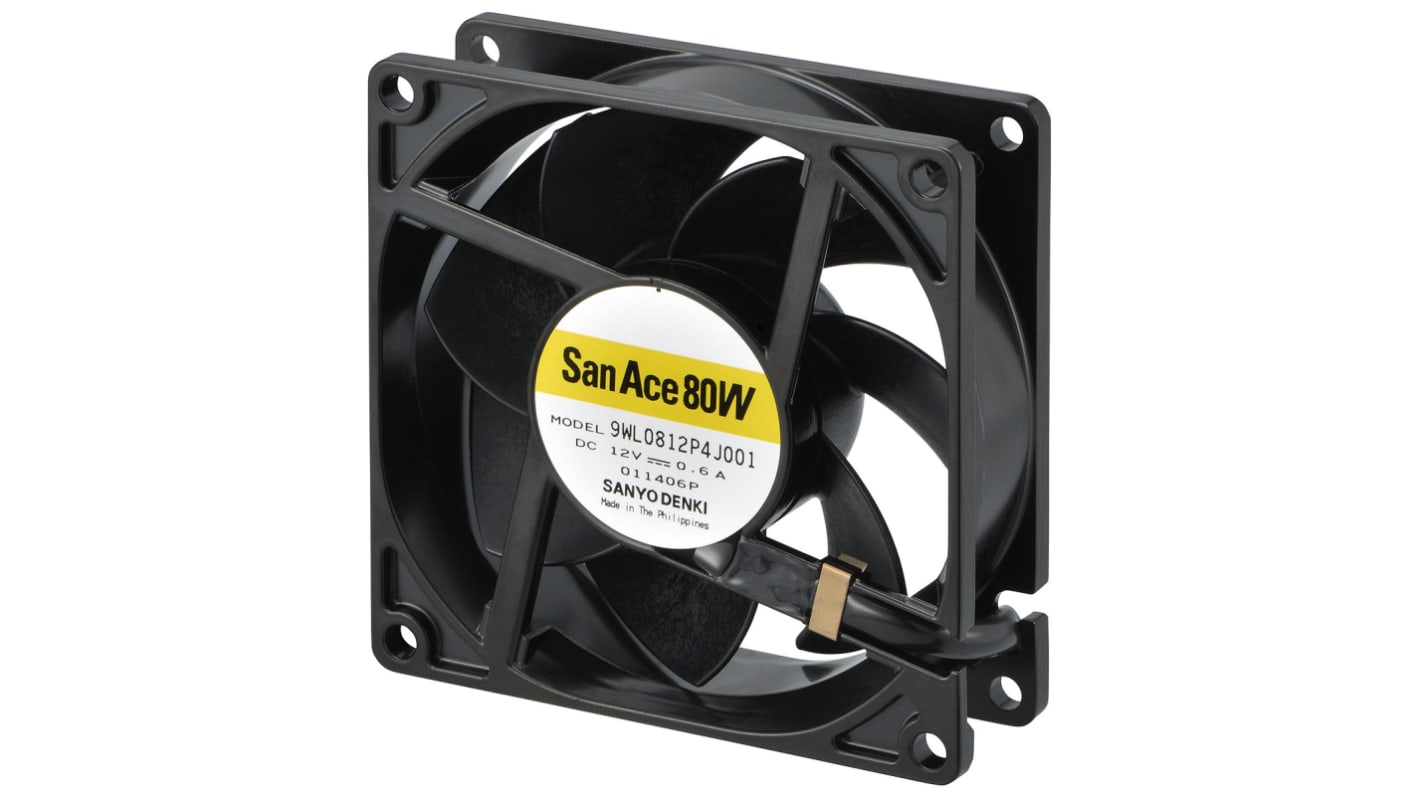

Sanyo Denki San Ace 9WL Series Axial Fan, 12 V dc, DC Operation, 124.2m³/h, 7.2W, 600mA Max, IP68, 80 x 80 x 25mm
- RS Stock No.:
- 124-9429
- Mfr. Part No.:
- 9WL0812P4J001
- Brand:
- Sanyo Denki
Bulk discount available
Subtotal (1 unit)*
£91.86
(exc. VAT)
£110.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 21 unit(s) shipping from 25 November 2025
- Plus 15 unit(s) shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £91.86 |
5 - 9 | £86.34 |
10 - 24 | £80.83 |
25 - 49 | £77.16 |
50 + | £69.81 |
*price indicative
- RS Stock No.:
- 124-9429
- Mfr. Part No.:
- 9WL0812P4J001
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sanyo Denki | |
Supply Voltage | 12 V dc | |
Height | 80mm | |
AC or DC Operation | DC | |
Width | 80mm | |
Power Consumption | 7.2W | |
Maximum Current | 600mA | |
Depth | 25.2mm | |
Termination Type | Lead Wire | |
Air Flow | 124.2m³/h | |
Dimensions | 80 x 80 x 25mm | |
Noise Level | 49dB | |
Fan Speed | 7400rpm | |
Sensor Type | PWM, Tachometer | |
Bearing Type | Ball | |
IP Rating | IP68 | |
Select all | ||
---|---|---|
Brand Sanyo Denki | ||
Supply Voltage 12 V dc | ||
Height 80mm | ||
AC or DC Operation DC | ||
Width 80mm | ||
Power Consumption 7.2W | ||
Maximum Current 600mA | ||
Depth 25.2mm | ||
Termination Type Lead Wire | ||
Air Flow 124.2m³/h | ||
Dimensions 80 x 80 x 25mm | ||
Noise Level 49dB | ||
Fan Speed 7400rpm | ||
Sensor Type PWM, Tachometer | ||
Bearing Type Ball | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- PH
San Ace Long Life IP68 Waterproof DC Fans - 9WL Series
San Ace 9WL series fans have IP68 waterproof protection also protecting against dust. These fans are ideal for equipment that operates without maintenance for long durations.
Features and Benefits
Aluminium frame
Long lifespan
IP68 rated water and dust resistant
High air flow and static pressure
PWM speed control function
Low power consumption
Long lifespan
IP68 rated water and dust resistant
High air flow and static pressure
PWM speed control function
Low power consumption
Standards
IP68
