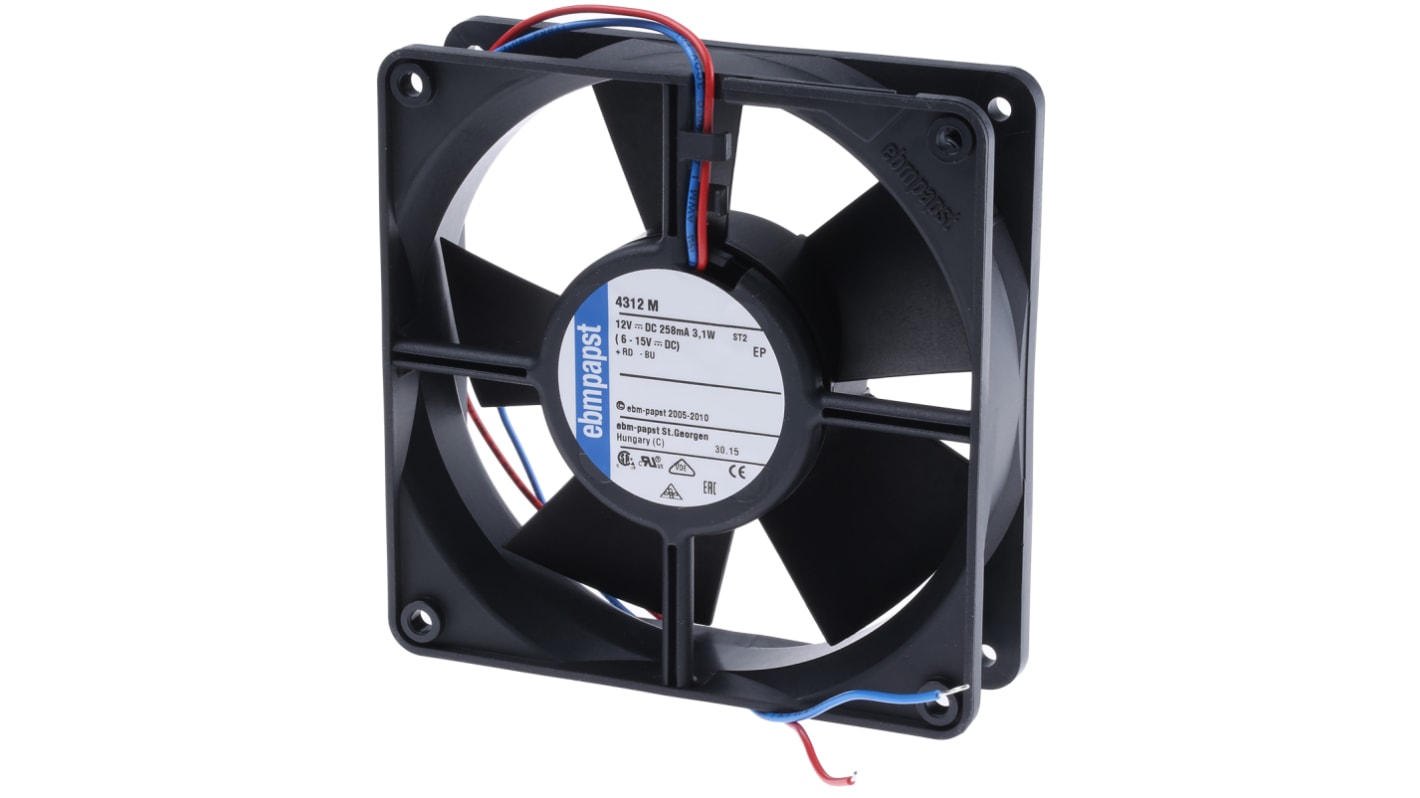

ebm-papst 4300 Series Axial Fan, 12 V dc, DC Operation, 140m³/h, 3.1W, 220mA Max, 119 x 119 x 32mm
- RS Stock No.:
- 581-593
- Distrelec Article No.:
- 154-21-018
- Mfr. Part No.:
- 4312M
- Brand:
- ebm-papst
Bulk discount available
Subtotal (1 unit)*
£37.42
(exc. VAT)
£44.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 338 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £37.42 |
5 - 9 | £34.42 |
10 - 24 | £32.93 |
25 - 49 | £30.68 |
50 + | £28.44 |
*price indicative
- RS Stock No.:
- 581-593
- Distrelec Article No.:
- 154-21-018
- Mfr. Part No.:
- 4312M
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ebm-papst | |
Supply Voltage | 12 V dc | |
AC or DC Operation | DC | |
Height | 119mm | |
Width | 119mm | |
Power Consumption | 3.1W | |
Depth | 32mm | |
Maximum Current | 220mA | |
Dimensions | 119 x 119 x 32mm | |
Air Flow | 140m³/h | |
Noise Level | 39dB | |
Fan Speed | 2300rpm | |
Bearing Type | Ball | |
Select all | ||
---|---|---|
Brand ebm-papst | ||
Supply Voltage 12 V dc | ||
AC or DC Operation DC | ||
Height 119mm | ||
Width 119mm | ||
Power Consumption 3.1W | ||
Depth 32mm | ||
Maximum Current 220mA | ||
Dimensions 119 x 119 x 32mm | ||
Air Flow 140m³/h | ||
Noise Level 39dB | ||
Fan Speed 2300rpm | ||
Bearing Type Ball | ||
- COO (Country of Origin):
- HU
ebm-papst High Performance Ball Bearing Fans
ebm-papst high performance ball bearing fans are an ideal soultion to a wide range of applications, featuring fibreglass-reinforced plastic and completely integrated electronic commutation.
• Material: fibreglass-reinforced plastic
• Fully integrated electronic commutation
• Protected against reverse polarity and locking
• Connected via single strands AWG 24, TR 64. Bared and tin-plated.
• Fully integrated electronic commutation
• Protected against reverse polarity and locking
• Connected via single strands AWG 24, TR 64. Bared and tin-plated.
Approvals
UL; CSA; VDE
