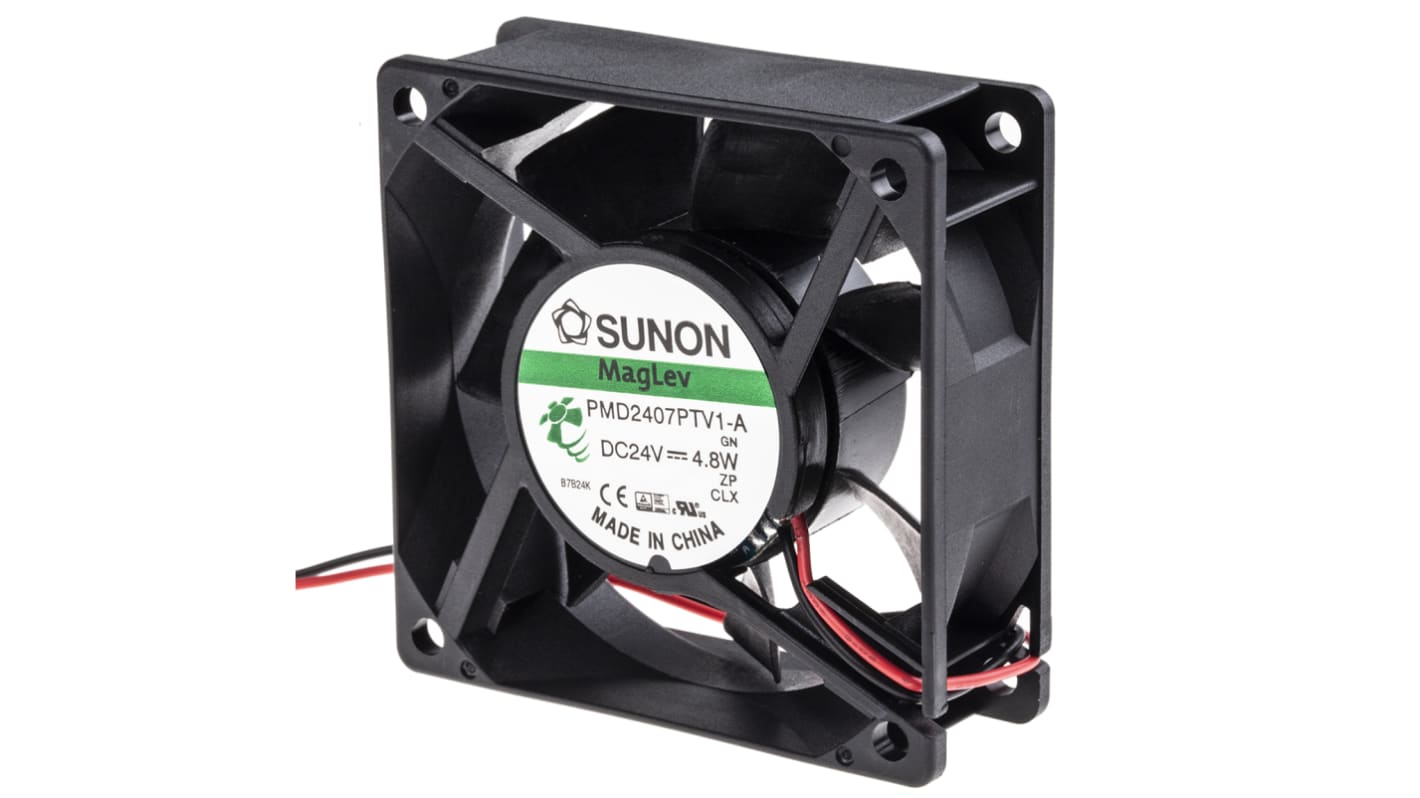

Sunon PMD Series Axial Fan, 24V dc, 83.3 m³/h, 4.8 W, 200 mA Max 70 mm 70mm 25 mm
- RS Stock No.:
- 126-537
- Mfr. Part No.:
- PMD2407PTV1-A.GN
- Brand:
- Sunon
Bulk discount available
Subtotal (1 unit)*
£13.28
(exc. VAT)
£15.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 60 unit(s) ready to ship
- Plus 150 unit(s) shipping from 27 October 2026
- Plus 50 unit(s) shipping from 24 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.28 |
| 5 - 9 | £12.22 |
| 10 - 24 | £11.67 |
| 25 - 49 | £10.88 |
| 50 + | £9.55 |
*price indicative
- RS Stock No.:
- 126-537
- Mfr. Part No.:
- PMD2407PTV1-A.GN
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 4.8W | |
| Maximum Current | 200mA | |
| Air Flow | 83.3m³/h | |
| Noise Level | 44dB | |
| Fan Speed | 5100rpm | |
| Terminal Type | Wire | |
| Bearing Type | Vapo | |
| Fan Frame Type | Square | |
| Fan Frame Size | 70 mm | |
| Height | 70mm | |
| Depth | 25mm | |
| Standards/Approvals | RoHS | |
| Series | PMD | |
| Width | 70mm | |
| Select all | ||
|---|---|---|
Brand Sunon | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 4.8W | ||
Maximum Current 200mA | ||
Air Flow 83.3m³/h | ||
Noise Level 44dB | ||
Fan Speed 5100rpm | ||
Terminal Type Wire | ||
Bearing Type Vapo | ||
Fan Frame Type Square | ||
Fan Frame Size 70 mm | ||
Height 70mm | ||
Depth 25mm | ||
Standards/Approvals RoHS | ||
Series PMD | ||
Width 70mm | ||
Sunon PMD Series High Pressure DC Fans
Sunon's Philosophy of 'Brand, Innovation, and Value' is driven by developing and innovating their core motor technology. The result is a range of reliable fans that are suitable for a wide range of cooling applications. With a long service life and very high airflow performance, the Sunon PMD Series of high pressure fans offers thermal fan solutions for applications in information technology, network communications, optoelectronics and automobile electronics.
Features and Benefits:
• DC Axial suitable for demanding cooling applications
• Airflow and static pressure performance is 30% more effective
• Very high airflow performance and static pressure capabilities
• Long service life
Applications
The PMD series of axial fans have a thin size which makes them well suited cooling specific areas on a PDB, or for any thermal application where space saving is a concern.
Q: Are these fans durable?
A: With a thermoplastic construction, the fans are suited for use in high temperatures. Their quality construction ensures a long working life.
Q: Are the fans easy to use?
A: The PMD series of fans have straight-forward screw in mounting. They also have a pre-fitted wire lead.
Q: Are the accessories available for these fans?
A: There are Sunon brand finger guards available in various sizes. (Example: 544-0548)
Approvals
UL, CE
