Siemens Auxiliary Contact, 4 Contact, 3 NO/1 NC, 3RH29, Snap-On, 10 A, 690V ac, 3RH2911-1GA31
- RS Stock No.:
- 746-0799
- Distrelec Article No.:
- 300-57-501
- Mfr. Part No.:
- 3RH2911-1GA31
- Brand:
- Siemens

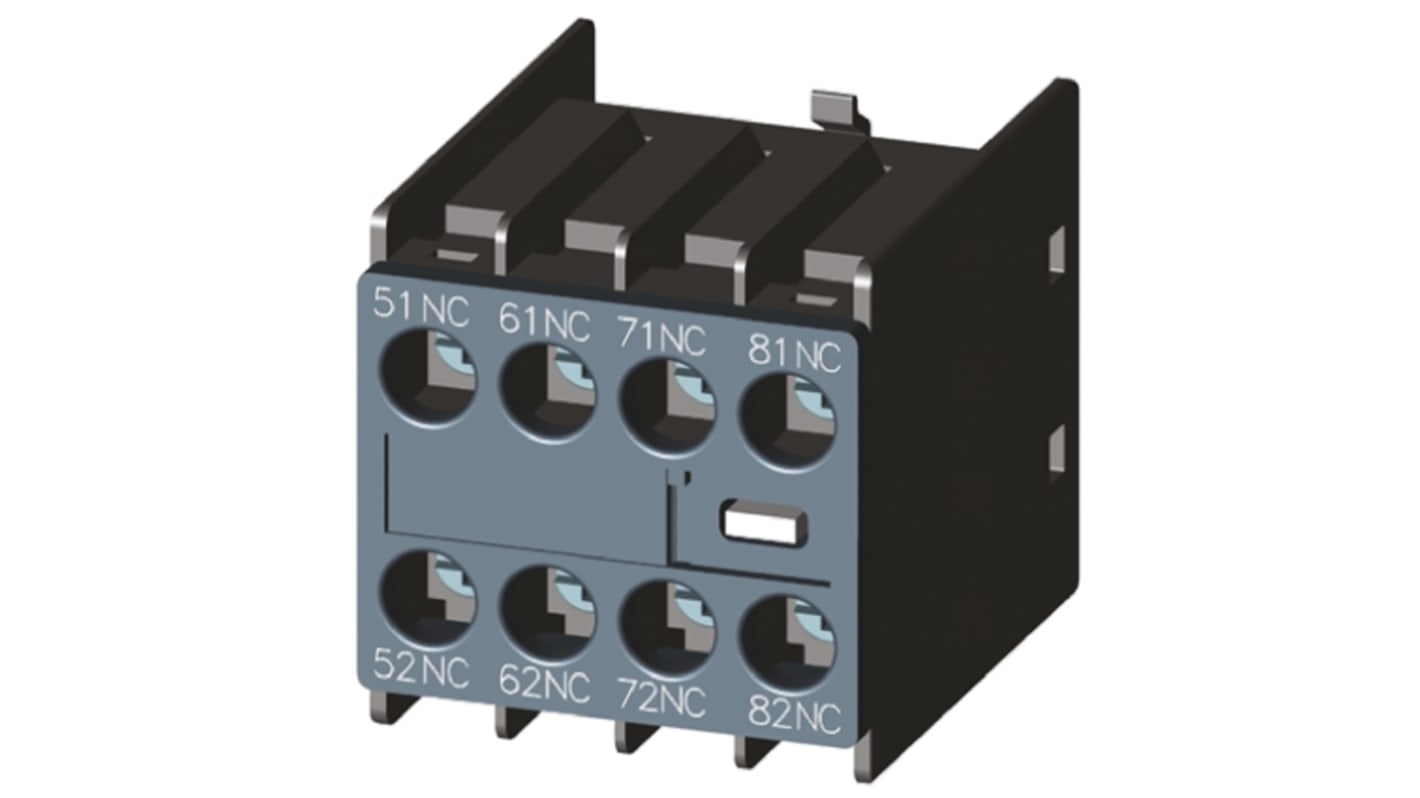

Image representative of range
Subtotal (1 unit)*
£13.60
(exc. VAT)
£16.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 8 unit(s) shipping from 27 April 2026
- Plus 30 unit(s) shipping from 27 April 2026
- Plus 55 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.60 |
*price indicative
- RS Stock No.:
- 746-0799
- Distrelec Article No.:
- 300-57-501
- Mfr. Part No.:
- 3RH2911-1GA31
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Auxiliary Contact | |
| Number of Contacts | 4 | |
| Normal State Configuration | 3 NO/1 NC | |
| Series | 3RH29 | |
| Mount Type | Snap-On | |
| Contact Current | 10A | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | 4 | |
| Contact Voltage | 690V ac | |
| Mounting Location | Front Side | |
| Operational Current Ie | 10A | |
| Minimum Operating Temperature | -25°C | |
| Rated Insulation Voltage Ui | 690V | |
| Mechanical Durability | 10Mcycles | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC 60947, EN 60947-5-1, EN 60947-4-1, DIN 46199-5, EN 50005, EN 50274, EN 50012 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Auxiliary Contact | ||
Number of Contacts 4 | ||
Normal State Configuration 3 NO/1 NC | ||
Series 3RH29 | ||
Mount Type Snap-On | ||
Contact Current 10A | ||
Terminal Type Screw | ||
Pole and Throw Configuration 4 | ||
Contact Voltage 690V ac | ||
Mounting Location Front Side | ||
Operational Current Ie 10A | ||
Minimum Operating Temperature -25°C | ||
Rated Insulation Voltage Ui 690V | ||
Mechanical Durability 10Mcycles | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC 60947, EN 60947-5-1, EN 60947-4-1, DIN 46199-5, EN 50005, EN 50274, EN 50012 | ||
- Accessories Data Sheet
- 3RH2911-1GA31 Auxiliary Switch Block
- Switching Devices for Load Feeders
- Datasheet
- Sirius Innovation Accessory Guide
- Sirius Innovation Catalogue
- Sirius Innovations Switching Devices
- Solutions for frequent switching or soft starting
- Basic Information
- Siemens Sirius Migration
- Sirius: Migrating From Classic to Innovation
- Environmental Product Declaration - Overview
- Environmental Product Declaration
- COO (Country of Origin):
- CZ
Auxiliary Contacts - 3RH Range
Siemens range of auxiliary contact bloacks to suit the 3RH contactors.
Front mounting position
Current rating; 6A
Accepts cables up to 2 x 2.5mm2
1 x block per contactor, 1 x block per relay
Note
* These are make before break contacts
