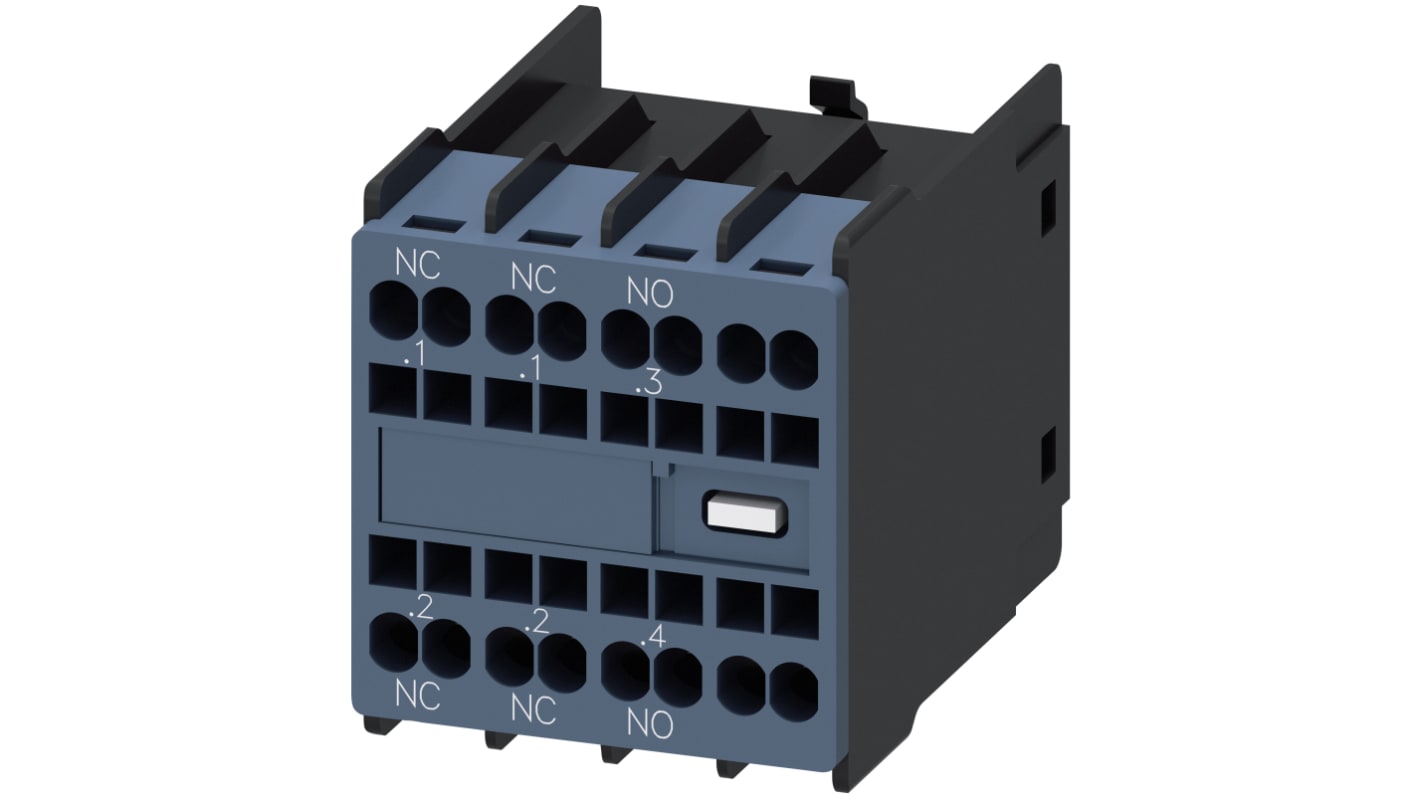

Siemens Auxiliary Contact, 3 Contact, 1 NO/2 NC, SIRIUS, Snap-On, 6 A, 690V ac, 3RH2911-2HA12
- RS Stock No.:
- 706-0977
- Distrelec Article No.:
- 304-23-372
- Mfr. Part No.:
- 3RH2911-2HA12
- Brand:
- Siemens
Subtotal (1 unit)*
£11.05
(exc. VAT)
£13.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.05 |
*price indicative
- RS Stock No.:
- 706-0977
- Distrelec Article No.:
- 304-23-372
- Mfr. Part No.:
- 3RH2911-2HA12
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Contacts | 3 | |
| Product Type | Auxiliary Contact | |
| Normal State Configuration | 1 NO/2 NC | |
| Series | SIRIUS | |
| Mount Type | Snap-On | |
| Contact Current | 6A | |
| Terminal Type | Spring Loaded | |
| Pole and Throw Configuration | 3PST | |
| Contact Voltage | 690V ac | |
| Mounting Location | Front Side | |
| Operational Current Ie | 6A | |
| Rated Insulation Voltage Ui | 690V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE/UL/CSA/CCC | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Contacts 3 | ||
Product Type Auxiliary Contact | ||
Normal State Configuration 1 NO/2 NC | ||
Series SIRIUS | ||
Mount Type Snap-On | ||
Contact Current 6A | ||
Terminal Type Spring Loaded | ||
Pole and Throw Configuration 3PST | ||
Contact Voltage 690V ac | ||
Mounting Location Front Side | ||
Operational Current Ie 6A | ||
Rated Insulation Voltage Ui 690V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE/UL/CSA/CCC | ||
Aux Contacts & Contactor Accessories
Siemens auxiliary contacts and accessories for the Siemens contactors range.
