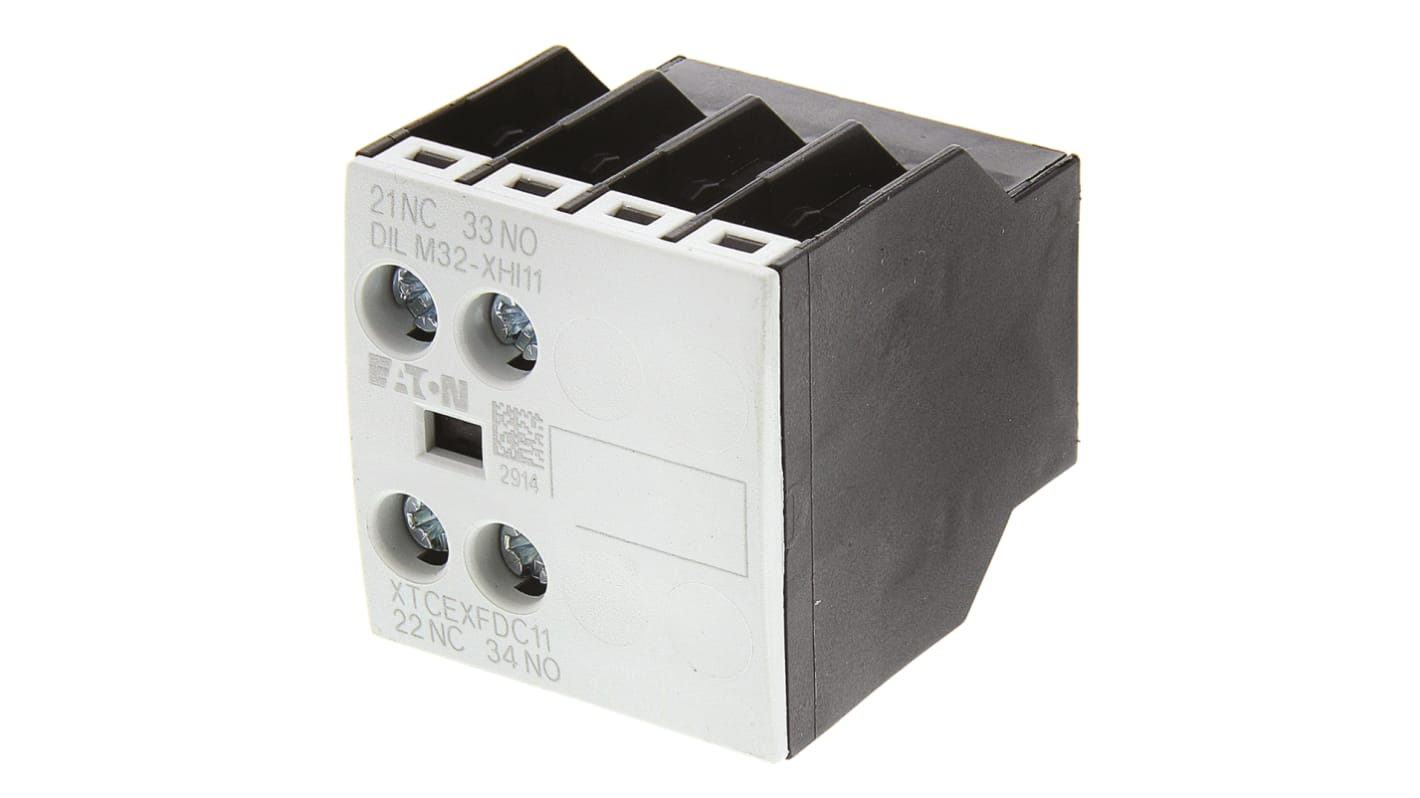

Eaton Auxiliary Contact, 2 Contact, 1 NO/1 NC, DILM7 - DILM38, Front, 16 A, 500V ac, 277376 DILM32-XHI11
- RS Stock No.:
- 493-0624
- Mfr. Part No.:
- 277376 DILM32-XHI11
- Brand:
- Eaton
Subtotal (1 unit)*
£10.08
(exc. VAT)
£12.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 23 unit(s) ready to ship
- Plus 27 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.08 |
*price indicative
- RS Stock No.:
- 493-0624
- Mfr. Part No.:
- 277376 DILM32-XHI11
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Auxiliary Contact | |
| Number of Contacts | 2 | |
| Normal State Configuration | 1 NO/1 NC | |
| Series | DILM7 - DILM38 | |
| Mount Type | Front | |
| Contact Current | 16A | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | 2P | |
| Contact Voltage | 500V ac | |
| Operational Current Ie | 4A | |
| Rated Insulation Voltage Ui | 690V | |
| Minimum Operating Temperature | -25°C | |
| Mechanical Durability | 1300000Operations | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, IEC/EN 60947-4-1, CSA-C22.2 No. 14-05, CE, IEC/EN 60947, VDE 0660, UL 508, CSA | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Auxiliary Contact | ||
Number of Contacts 2 | ||
Normal State Configuration 1 NO/1 NC | ||
Series DILM7 - DILM38 | ||
Mount Type Front | ||
Contact Current 16A | ||
Terminal Type Screw | ||
Pole and Throw Configuration 2P | ||
Contact Voltage 500V ac | ||
Operational Current Ie 4A | ||
Rated Insulation Voltage Ui 690V | ||
Minimum Operating Temperature -25°C | ||
Mechanical Durability 1300000Operations | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, IEC/EN 60947-4-1, CSA-C22.2 No. 14-05, CE, IEC/EN 60947, VDE 0660, UL 508, CSA | ||
RoHS Status: Exempt
Eaton Auxiliary Contact, Screw Terminals, Interlocked Opposing Contacts - DILM Series - 277376 DILM32-XHI11
Keen to take on more switching tasks without replacing your contactor? Let this two-pole auxiliary contact from Eaton give you a helping hand. As it clips onto your DILM contactor, it's a quick way to upgrade your device. The contacts have a NO/NC configuration and mirror your contactor. As the opposing contacts are interlocked, they can't be in the same position at the same time. This boosts the safety and reliability of switching operations where induction motors, pumps and fans are involved. You'll also find this unit handy in low-voltage switching applications such as signalling with lights or remote system monitoring.
Features & Benefits
• Climatic proofing means it works reliably in temperatures between -25°C and +60°C
• Electrical durability of 1.3 million operations for a long service life
• Screw terminals keep your wire connections dependable, even under vibration
• Accepts solid and flexible conductors sized between 0.75 and 2.5mm² for wiring flexibility
How much space does this module take up?
As this auxiliary contact is front mounting and has compact dimensions of 38 (L) x 36 (W) x 45mm (D), it doesn't take up much space.
Note
Eaton formerly known as Moeller
