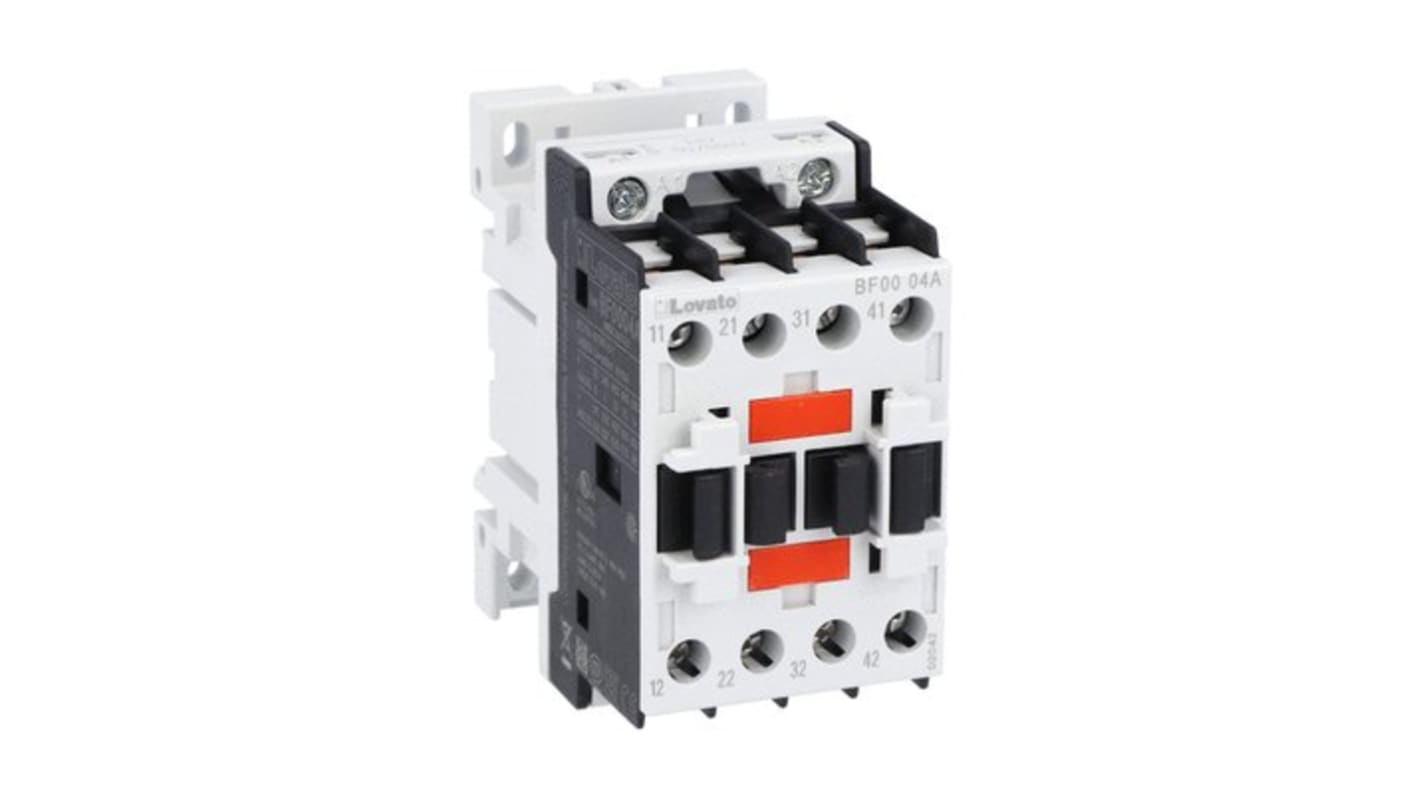

Lovato Auxiliary Contact, 4 Contact, 4 NC, BF00, DIN, 10 A, 48V, BF0004A048
- RS Stock No.:
- 274-0609
- Mfr. Part No.:
- BF0004A048
- Brand:
- Lovato
Subtotal (1 unit)*
£49.91
(exc. VAT)
£59.89
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.91 |
*price indicative
- RS Stock No.:
- 274-0609
- Mfr. Part No.:
- BF0004A048
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Number of Contacts | 4 | |
| Product Type | Auxiliary Contact | |
| Normal State Configuration | 4 NC | |
| Series | BF00 | |
| Mount Type | DIN | |
| Contact Current | 10A | |
| Terminal Type | Power Terminal | |
| Pole and Throw Configuration | 4 | |
| Contact Voltage | 48V | |
| Rated Insulation Voltage Ui | 690V | |
| Operational Current Ie | 3A | |
| Minimum Operating Temperature | -50°C | |
| Mechanical Durability | 20Mcycles | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL 60947-1, CSA C22.2 n° 60947-5-1, CSA C22.2 n° 60947-1, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-5-1 | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Number of Contacts 4 | ||
Product Type Auxiliary Contact | ||
Normal State Configuration 4 NC | ||
Series BF00 | ||
Mount Type DIN | ||
Contact Current 10A | ||
Terminal Type Power Terminal | ||
Pole and Throw Configuration 4 | ||
Contact Voltage 48V | ||
Rated Insulation Voltage Ui 690V | ||
Operational Current Ie 3A | ||
Minimum Operating Temperature -50°C | ||
Mechanical Durability 20Mcycles | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL 60947-1, CSA C22.2 n° 60947-5-1, CSA C22.2 n° 60947-1, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-5-1 | ||
The Lovato control relay with dc coil and four number of poles has maximum two number of wires simultaneously connectable. The maximum tightening torque for terminals is 1.8 Nm.
Pollution degree 3
EMC compatible
