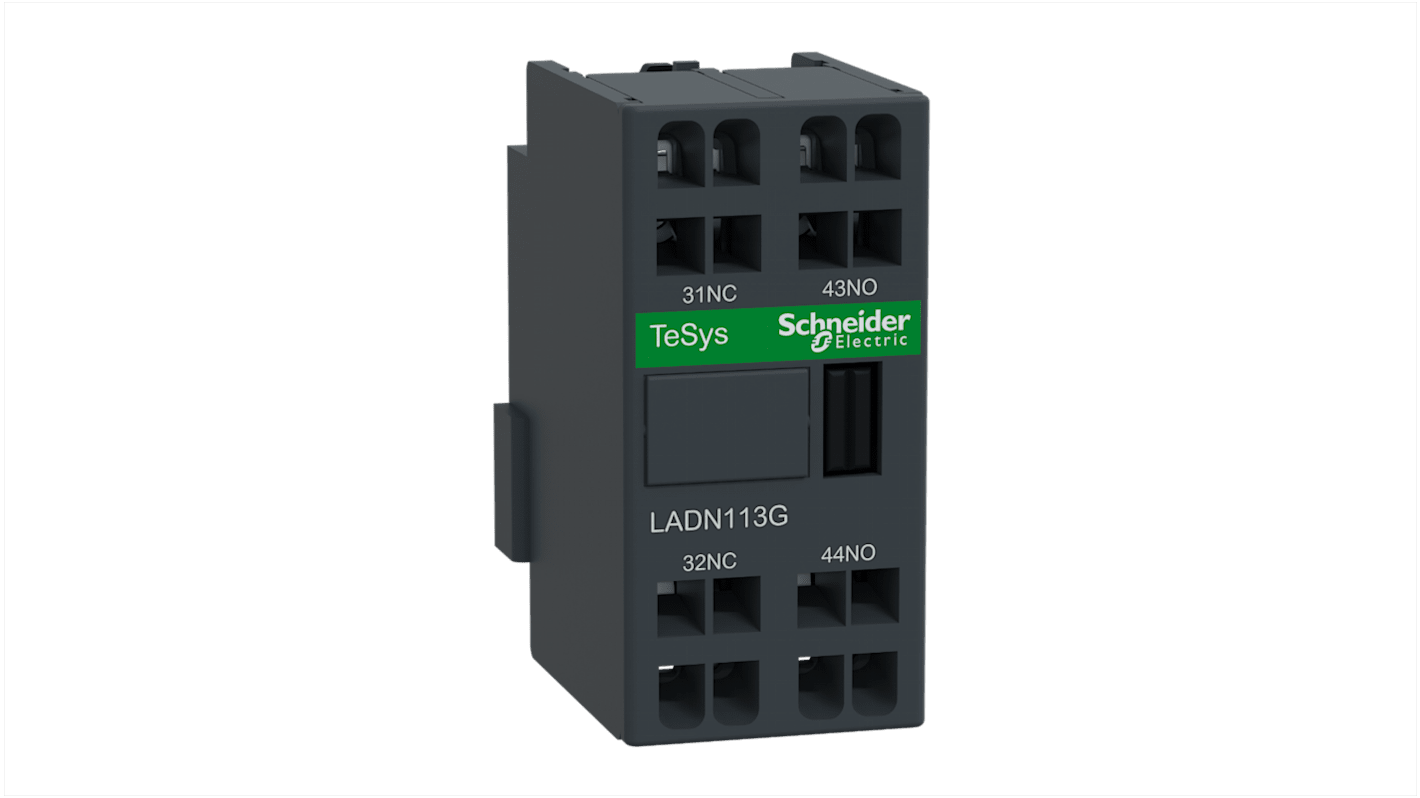

Schneider Electric Auxiliary Contact Block, 2 Contact, 1 NO/1 NC, LADN, Front, 10 A, 690V, LADN113G
- RS Stock No.:
- 256-4224
- Mfr. Part No.:
- LADN113G
- Brand:
- Schneider Electric
Unavailable
RS will no longer stock this product.
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 256-4224
- Mfr. Part No.:
- LADN113G
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Contacts | 2 | |
| Product Type | Auxiliary Contact Block | |
| Normal State Configuration | 1 NO/1 NC | |
| Series | LADN | |
| Contact Current | 10A | |
| Mount Type | Front | |
| Terminal Type | Spring Loaded Clamp | |
| Contact Voltage | 690V | |
| Mounting Location | Front | |
| Minimum Operating Temperature | -5°C | |
| Rated Insulation Voltage Ui | 690V | |
| Mechanical Durability | 30Mcycles | |
| Operational Current Ie | 10A | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CSA C22.2 No 60947-5-1, EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1 | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Contacts 2 | ||
Product Type Auxiliary Contact Block | ||
Normal State Configuration 1 NO/1 NC | ||
Series LADN | ||
Contact Current 10A | ||
Mount Type Front | ||
Terminal Type Spring Loaded Clamp | ||
Contact Voltage 690V | ||
Mounting Location Front | ||
Minimum Operating Temperature -5°C | ||
Rated Insulation Voltage Ui 690V | ||
Mechanical Durability 30Mcycles | ||
Operational Current Ie 10A | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CSA C22.2 No 60947-5-1, EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1 | ||
Better World Product Yes | ||
The Schneider Electric Adapter terminal block has separate mounting of LR2D1 to LR3D1.
RoHS compliant
Net weight 0.10 Kg
