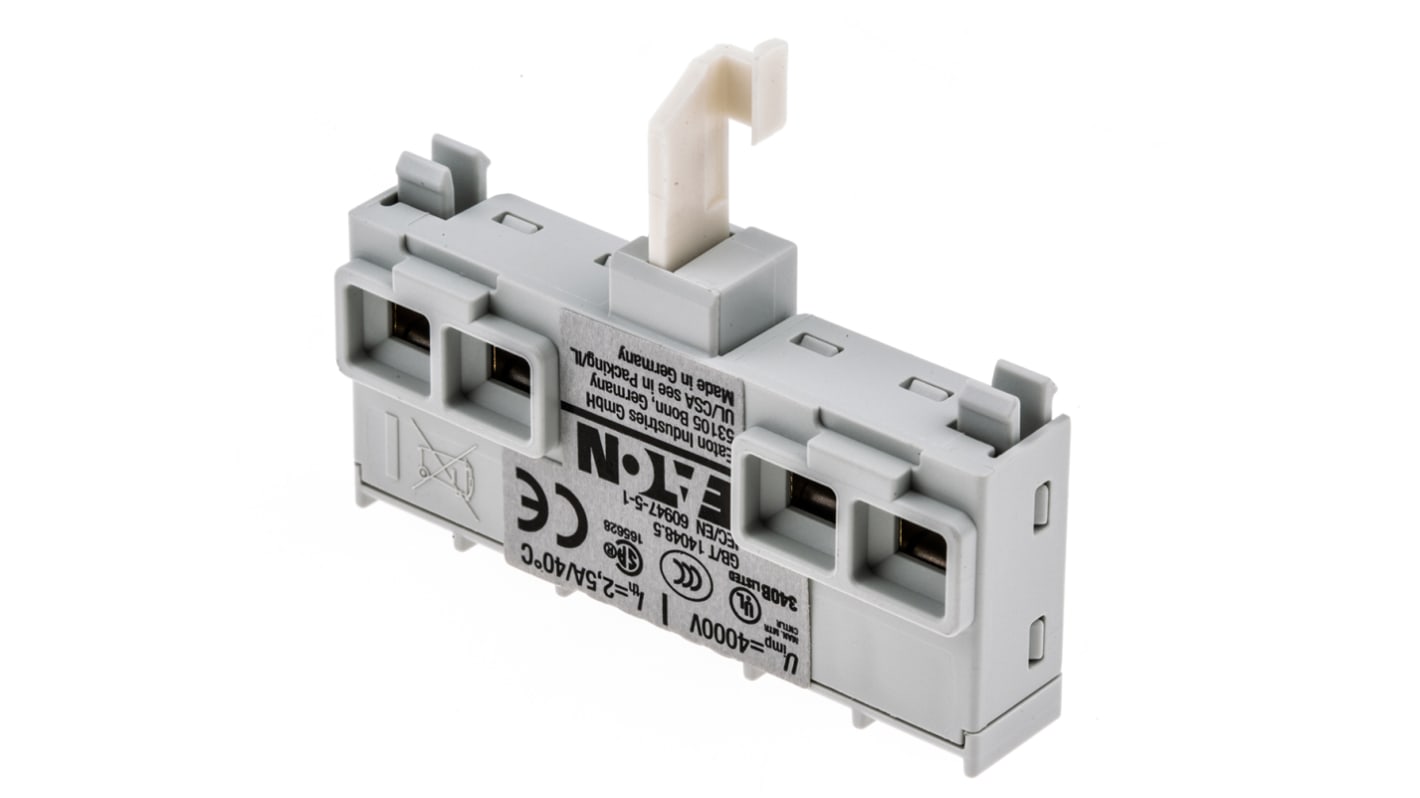

Eaton Auxiliary Contact, 2 Contact, 1 NO/1 NC, NHI-E, Top, 1 A, 24 V dc, 240V ac, 082882 NHI-E-11-PKZ0
- RS Stock No.:
- 244-0107
- Distrelec Article No.:
- 136-22-504
- Mfr. Part No.:
- 082882 NHI-E-11-PKZ0
- Brand:
- Eaton
Subtotal (1 unit)*
£13.58
(exc. VAT)
£16.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 92 unit(s) ready to ship
- Plus 106 unit(s) ready to ship from another location
- Plus 70 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.58 |
*price indicative
- RS Stock No.:
- 244-0107
- Distrelec Article No.:
- 136-22-504
- Mfr. Part No.:
- 082882 NHI-E-11-PKZ0
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Contacts | 2 | |
| Product Type | Auxiliary Contact | |
| Normal State Configuration | 1 NO/1 NC | |
| Series | NHI-E | |
| Mount Type | Top | |
| Contact Current | 1A | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | DPST | |
| Contact Voltage | 24, 240V dc | |
| Mounting Location | Front Fasten | |
| Minimum Operating Temperature | -25°C | |
| Minimum Load | 5.4mA | |
| Mechanical Durability | 0.1Mcycles | |
| Rated Insulation Voltage Ui | 690V | |
| Operational Current Ie | 1A | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CE, UL, IEC6094741, CSAC. . 14 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Contacts 2 | ||
Product Type Auxiliary Contact | ||
Normal State Configuration 1 NO/1 NC | ||
Series NHI-E | ||
Mount Type Top | ||
Contact Current 1A | ||
Terminal Type Screw | ||
Pole and Throw Configuration DPST | ||
Contact Voltage 24, 240V dc | ||
Mounting Location Front Fasten | ||
Minimum Operating Temperature -25°C | ||
Minimum Load 5.4mA | ||
Mechanical Durability 0.1Mcycles | ||
Rated Insulation Voltage Ui 690V | ||
Operational Current Ie 1A | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CE, UL, IEC6094741, CSAC. . 14 | ||
- COO (Country of Origin):
- DE
Eaton Auxiliary Contact, Screw Termination, 440V AC / 250V DC Maximum Rated Voltage - NHI Series - 082882 NHI-E-11-PKZ0
When there's no space to fit an auxiliary contact at the side of your motor protection device, pop this handy version from Eaton on the front. Thanks to the plastic arm, it simply clips in, so you don't need to fiddle about with tools. Compact dimensions of 12 (L) x 45 (W) x 35mm (D) mean it takes up minimal space and fits flush on the face of PKZ and PKE series' motor protective circuit breakers. This allows you to create a motor starter combination unit that's conveniently streamlined.
Features & Benefits
• Electrical and mechanical lifespan of 100,000 operations makes it a durable choice
• Wide operating temperature range between -25°C and +55°C to handle harsh conditions
• Screw terminals securely attach your conductors to keep circuits reliable
Is this auxiliary contact electrically isolated?
Yes, this auxiliary contact has a safe isolation of 440V between the auxiliary and main contacts to protect you from electric shocks.
What's the rated impulse withstand voltage of this auxiliary contact?
The unit has a 4,000V AC rated impulse withstand voltage, so you know it can handle high electrical peaks such as power surges.
Note
Eaton formerly known as Moeller
