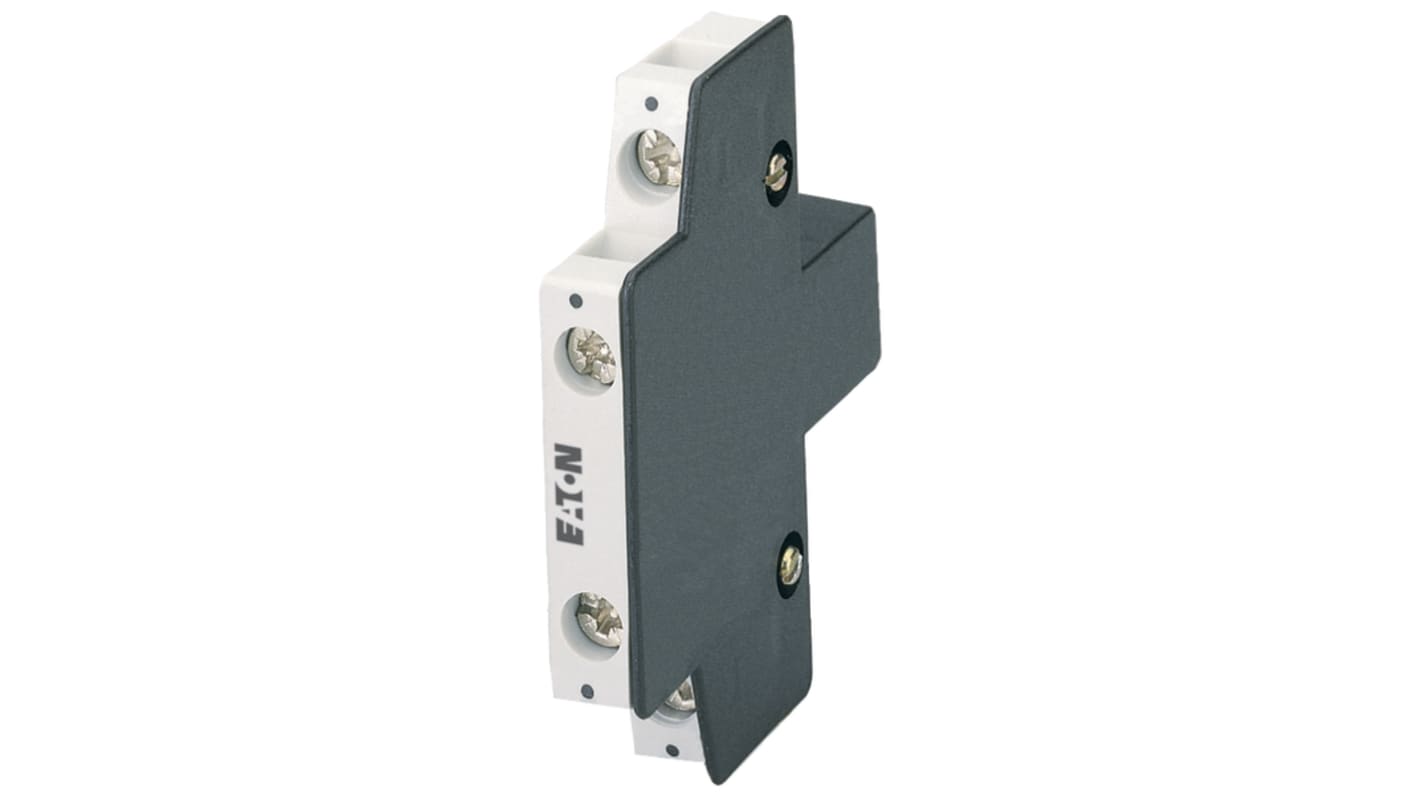

Eaton Auxiliary Contact, 2 Contact, 1 NO/1 NC, DILM, Side, 10 A, 500V, 208282 DILM820-XHI11-SA
- RS Stock No.:
- 230-4464
- Mfr. Part No.:
- 208282 DILM820-XHI11-SA
- Brand:
- Eaton
Subtotal (1 unit)*
£23.58
(exc. VAT)
£28.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 12 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.58 |
*price indicative
- RS Stock No.:
- 230-4464
- Mfr. Part No.:
- 208282 DILM820-XHI11-SA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Auxiliary Contact | |
| Number of Contacts | 2 | |
| Normal State Configuration | 1 NO/1 NC | |
| Series | DILM | |
| Contact Current | 10A | |
| Mount Type | Side | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | 2P | |
| Contact Voltage | 500V | |
| Rated Insulation Voltage Ui | 690V | |
| Mechanical Durability | 1.3Mcycles | |
| Mounting Location | Side | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 6A | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC/EN 60947, UL, VDE 0660, CSA | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Auxiliary Contact | ||
Number of Contacts 2 | ||
Normal State Configuration 1 NO/1 NC | ||
Series DILM | ||
Contact Current 10A | ||
Mount Type Side | ||
Terminal Type Screw | ||
Pole and Throw Configuration 2P | ||
Contact Voltage 500V | ||
Rated Insulation Voltage Ui 690V | ||
Mechanical Durability 1.3Mcycles | ||
Mounting Location Side | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 6A | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC/EN 60947, UL, VDE 0660, CSA | ||
The Eaton Auxiliary contact module comes with interlocked opposing contacts. It works with an voltage rating of 500 volts and current rating of 10 ampere.
1 normally open contacts
1 normally closed contacts
Screw terminals connection technique
Note
Eaton formerly known as Moeller
