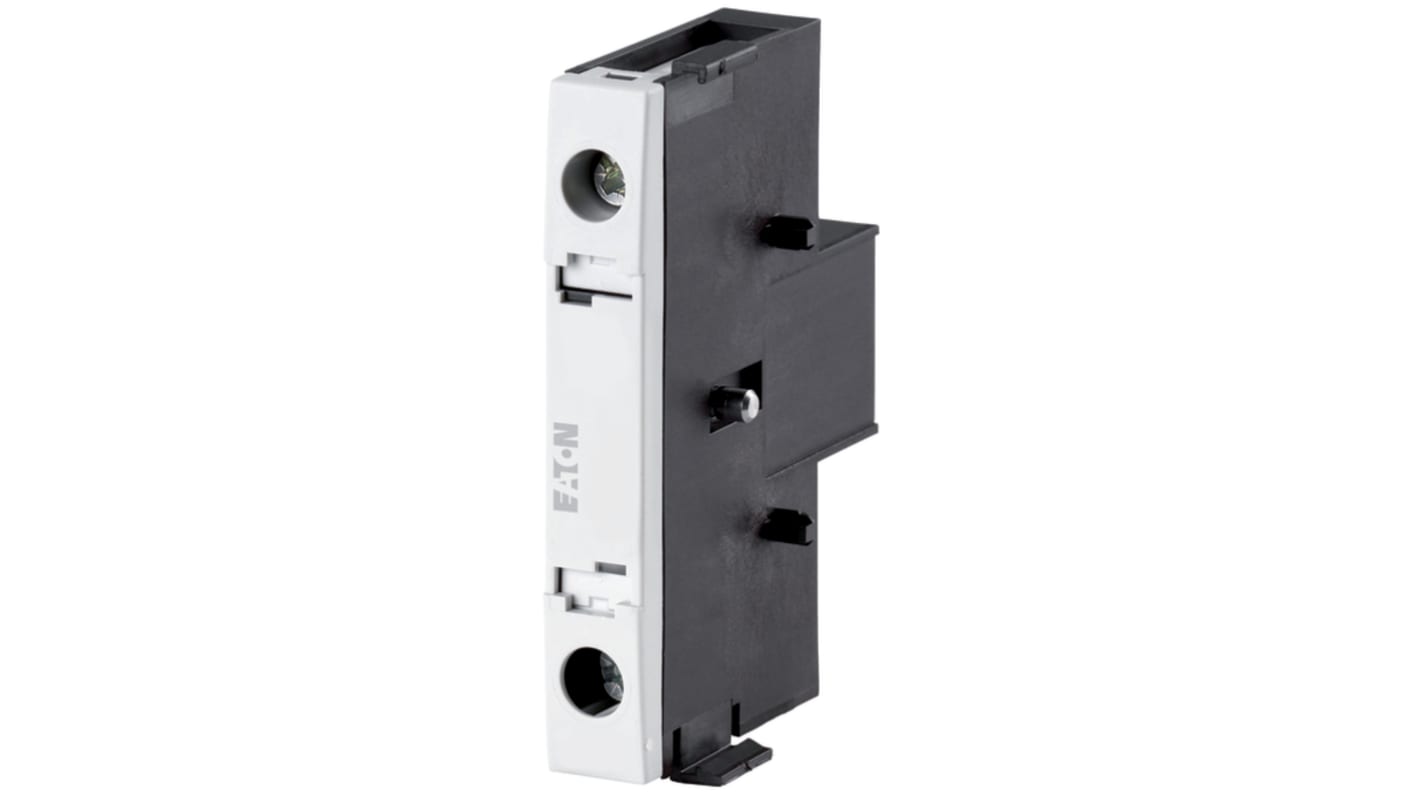

Eaton Auxiliary Contact Module, 1 Contact, 1 NC, DILA, Side, 16 A, 500V, 115949 DILA-XHI01-S
- RS Stock No.:
- 229-9367
- Mfr. Part No.:
- 115949 DILA-XHI01-S
- Brand:
- Eaton
Subtotal (1 unit)*
£13.16
(exc. VAT)
£15.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 31 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.16 |
*price indicative
- RS Stock No.:
- 229-9367
- Mfr. Part No.:
- 115949 DILA-XHI01-S
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Auxiliary Contact Module | |
| Number of Contacts | 1 | |
| Normal State Configuration | 1 NC | |
| Series | DILA | |
| Mount Type | Side | |
| Contact Current | 16A | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | 1P | |
| Contact Voltage | 500V | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 4A | |
| Mounting Location | Side | |
| Rated Insulation Voltage Ui | 690V | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, CSA, VDE 0660, IEC/EN 60947 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Auxiliary Contact Module | ||
Number of Contacts 1 | ||
Normal State Configuration 1 NC | ||
Series DILA | ||
Mount Type Side | ||
Contact Current 16A | ||
Terminal Type Screw | ||
Pole and Throw Configuration 1P | ||
Contact Voltage 500V | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 4A | ||
Mounting Location Side | ||
Rated Insulation Voltage Ui 690V | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, CSA, VDE 0660, IEC/EN 60947 | ||
The Eaton 1 pole auxiliary contact module has 16 amp current rating. It has 1NC contacts.
Operating temperature range is from -25 °C to 60 °C
IP20 protection class
Note
Eaton formerly known as Moeller
