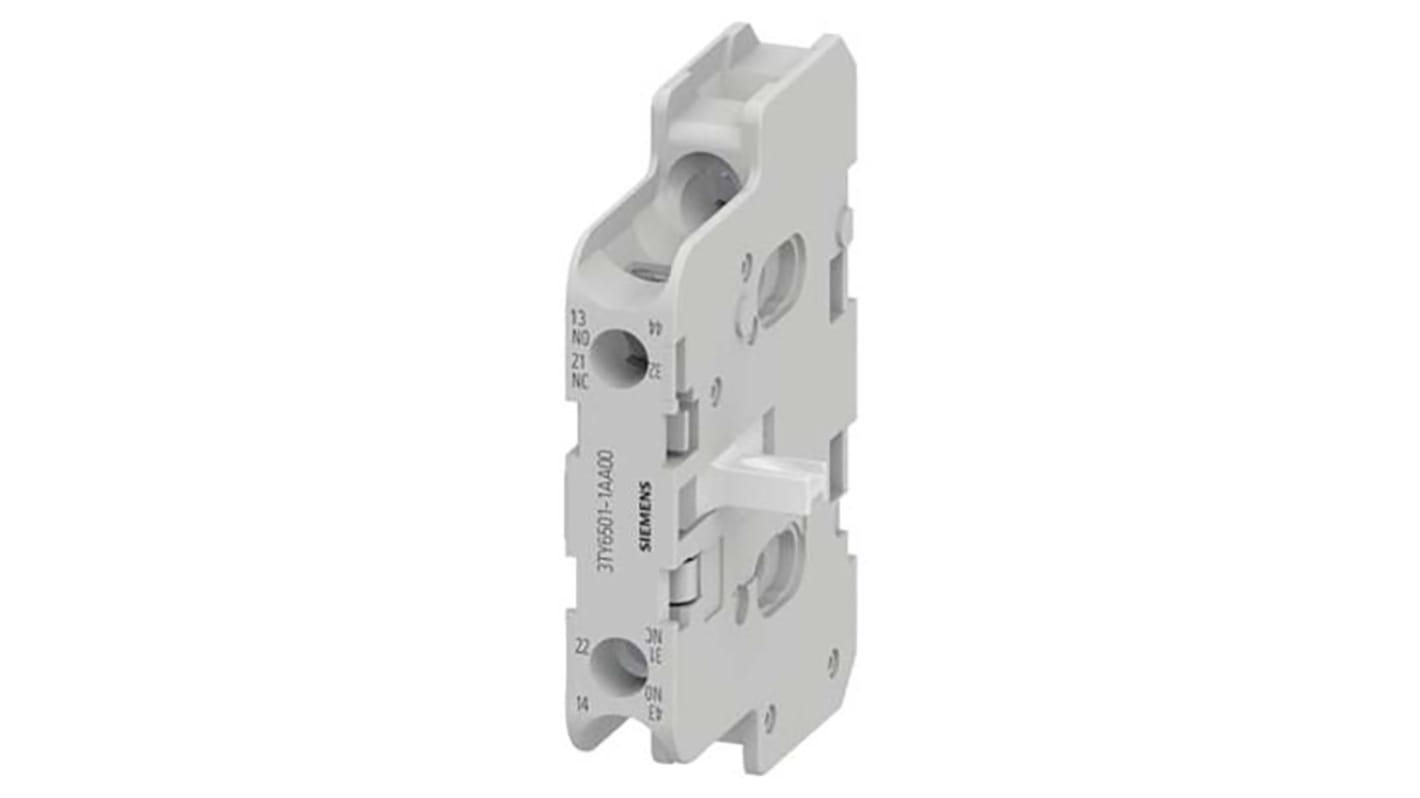

Siemens Auxiliary Contact, 2 Contact, 1 NO/1 NC, 3TB44-50, 3TC4, Snap-On, 10 A, 690V, 3TY6501-1AA00
- RS Stock No.:
- 203-3892
- Mfr. Part No.:
- 3TY6501-1AA00
- Brand:
- Siemens
Subtotal (1 unit)*
£23.52
(exc. VAT)
£28.22
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.52 |
*price indicative
- RS Stock No.:
- 203-3892
- Mfr. Part No.:
- 3TY6501-1AA00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Contacts | 2 | |
| Product Type | Auxiliary Contact | |
| Normal State Configuration | 1 NO/1 NC | |
| Series | 3TB44-50, 3TC4 | |
| Mount Type | Snap-On | |
| Contact Current | 10A | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | DPDT | |
| Contact Voltage | 690V | |
| Minimum Operating Temperature | -25°C | |
| Rated Insulation Voltage Ui | 690V | |
| Mounting Location | Left Side, Right Side | |
| Mechanical Durability | 10Mcycles | |
| Operational Current Ie | 10A | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Contacts 2 | ||
Product Type Auxiliary Contact | ||
Normal State Configuration 1 NO/1 NC | ||
Series 3TB44-50, 3TC4 | ||
Mount Type Snap-On | ||
Contact Current 10A | ||
Terminal Type Screw | ||
Pole and Throw Configuration DPDT | ||
Contact Voltage 690V | ||
Minimum Operating Temperature -25°C | ||
Rated Insulation Voltage Ui 690V | ||
Mounting Location Left Side, Right Side | ||
Mechanical Durability 10Mcycles | ||
Operational Current Ie 10A | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- TR
The Siemens auxiliary switch for contactor used screw type of terminal and snap-on mounting type. It is mounting on the left or on the right. It is suitable use for contactor relay and power contactor.
Ambient temperature is -25 °C to 55°C
Its height is 70mm
