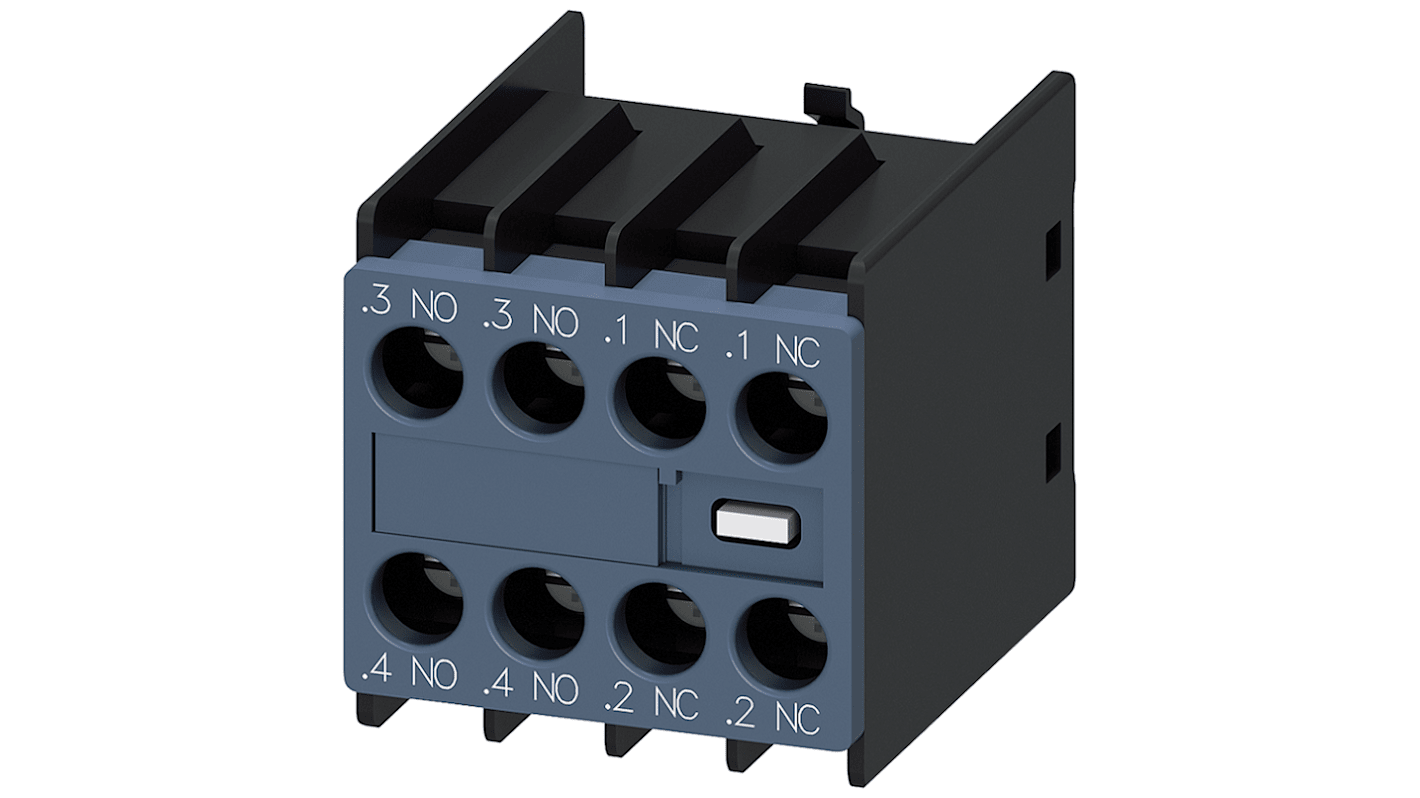

Siemens Auxiliary Contact, 4 Contact, 2 NC/2 NO, 3RH, Snap-On, 10 A, 690V, 3RH2911-1FA22-0MA0
- RS Stock No.:
- 203-2173
- Mfr. Part No.:
- 3RH2911-1FA22-0MA0
- Brand:
- Siemens
Subtotal (1 unit)*
£13.60
(exc. VAT)
£16.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 92 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.60 |
*price indicative
- RS Stock No.:
- 203-2173
- Mfr. Part No.:
- 3RH2911-1FA22-0MA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Auxiliary Contact | |
| Number of Contacts | 4 | |
| Normal State Configuration | 2 NC/2 NO | |
| Series | 3RH | |
| Mount Type | Snap-On | |
| Contact Current | 10A | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | DPDT | |
| Contact Voltage | 690V | |
| Mechanical Durability | 10Mcycles | |
| Operational Current Ie | 10A | |
| Mounting Location | Front Side | |
| Rated Insulation Voltage Ui | 690V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Auxiliary Contact | ||
Number of Contacts 4 | ||
Normal State Configuration 2 NC/2 NO | ||
Series 3RH | ||
Mount Type Snap-On | ||
Contact Current 10A | ||
Terminal Type Screw | ||
Pole and Throw Configuration DPDT | ||
Contact Voltage 690V | ||
Mechanical Durability 10Mcycles | ||
Operational Current Ie 10A | ||
Mounting Location Front Side | ||
Rated Insulation Voltage Ui 690V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Siemens 3RH Series Auxiliary Contact, 2NC + 2NO, 10A Contact Current Rating - 3RH2911-1FA22-0MA0
This auxiliary contact enhances the functionalities of contactors and relay devices, managing multiple current paths and making it suitable for a range of industrial applications.
Features & Benefits
• 4 contacts enhance functional capabilities and flexibility
• Snap-on mounting style facilitates installation and maintenance
• Screw terminal design provides secure and straightforward connections
• Operating temperature range of -25 to 60°C supports diverse applications
• 10A contact current rating caters to various operational needs
• 690V contact voltage rating meets electrical requirements
Applications
• Used with 3RT2 contactors for expanded switching functions
• Integrates with 3RH2 contactor relays in control circuits
• Suitable for automation environments with strict electrical demands
• Employed in industrial sectors needing auxiliary switching
What types of contactors can be integrated with this component?
It is compatible with 3RT2 series contactors for enhanced functionality.
How easy is it to install this contact?
The snap-on mounting style allows for quick and efficient installation.
Can it accommodate different conductor sizes?
Yes, it supports conductor cross-sections from 0.5mm² to 2.5mm².
What is the expected service life of this auxiliary contact?
It has a typical mechanical service life of 10 million operating cycles.
