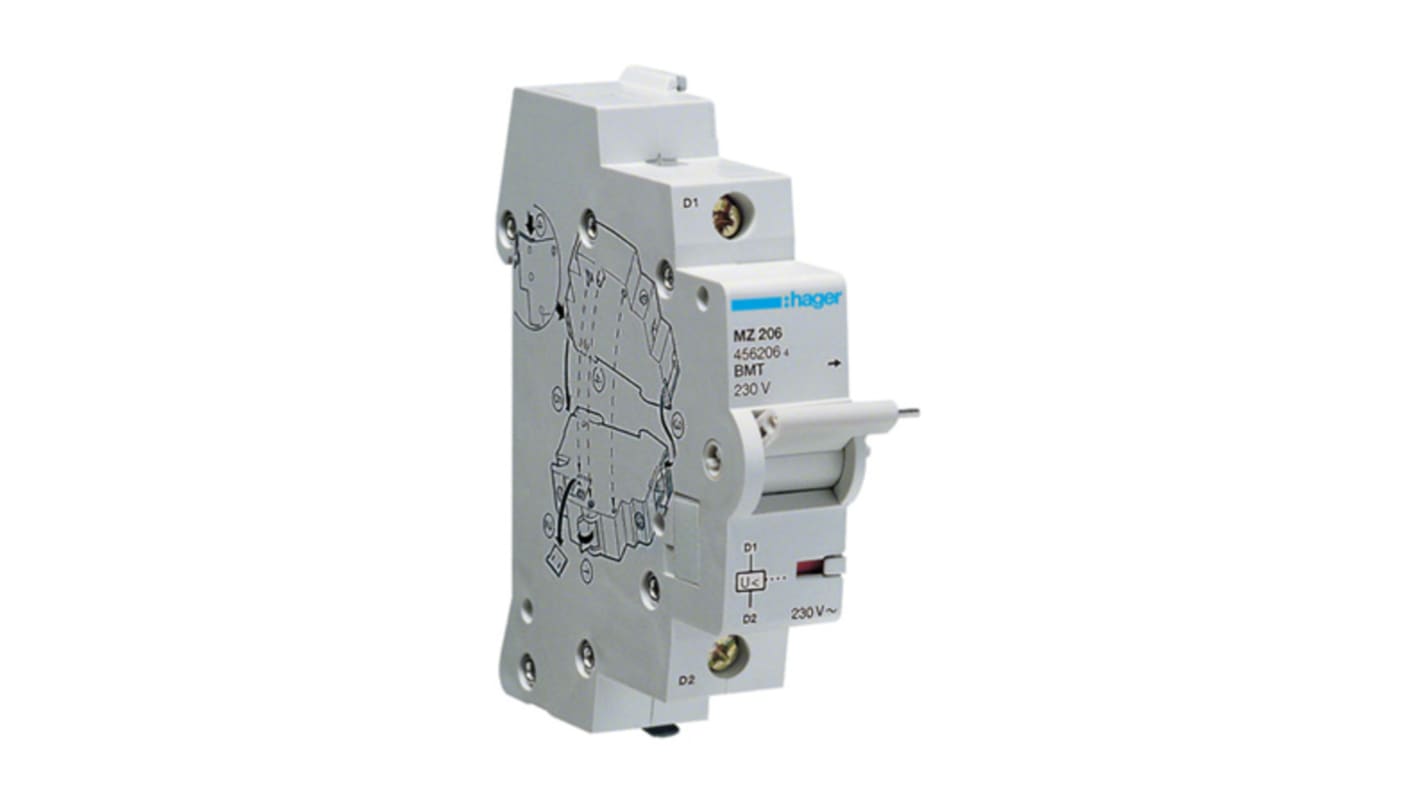

Hager Undervoltage Release, MZ, DIN Rail, 50 mA, 230V ac, MZ206
- RS Stock No.:
- 144-4960
- Mfr. Part No.:
- MZ206
- Brand:
- Hager
Subtotal (1 unit)*
£94.76
(exc. VAT)
£113.71
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £94.76 |
*price indicative
- RS Stock No.:
- 144-4960
- Mfr. Part No.:
- MZ206
- Brand:
- Hager
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hager | |
| Product Type | Undervoltage Release | |
| Series | MZ | |
| Contact Current | 50mA | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Contact Voltage | 230V ac | |
| Operational Current Ie | 50mA | |
| Rated Insulation Voltage Ui | 4kV | |
| Mechanical Durability | 12000Cycles | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Hager | ||
Product Type Undervoltage Release | ||
Series MZ | ||
Contact Current 50mA | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Contact Voltage 230V ac | ||
Operational Current Ie 50mA | ||
Rated Insulation Voltage Ui 4kV | ||
Mechanical Durability 12000Cycles | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Hager RCCB Undervoltage Release
Common to both single and multi-pole 10 kA circuit breakers and RCCBs.
Features and Benefits
• Allows RCCB to be closed, only when voltage is above 85% of Un
• RCCB will automatically trip when voltage falls to between 70-35% of Un (230 V)
• Operation of the release is indicated by a flag on the switch
• 48 V dc or 230 V ac
• Screw terminals
• DIN Rail mountable
