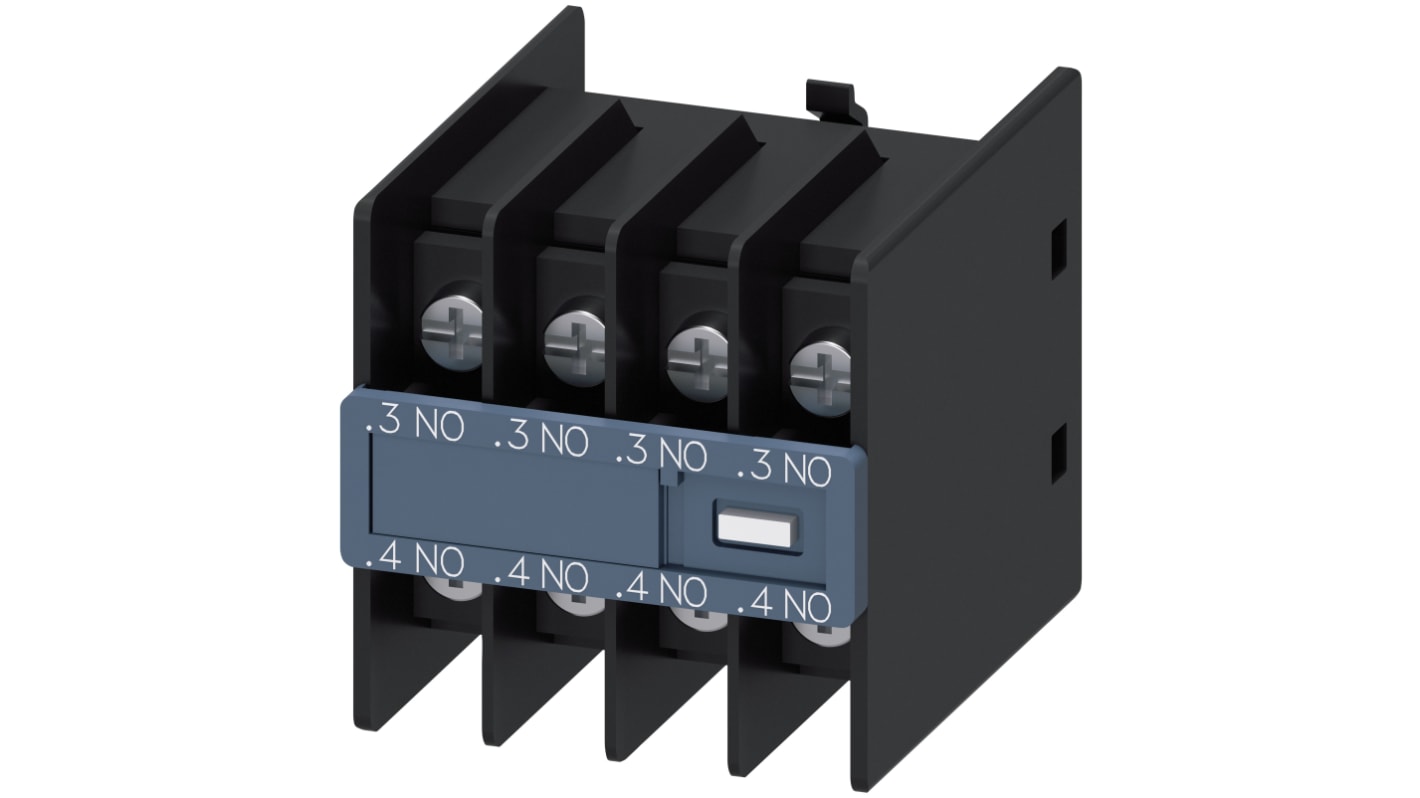

Siemens Auxiliary Switch Block, 4 Contact, 4 NO, SIRIUS, Snap-On, 10 A, 690V ac, 3RH2911-4FA40
- RS Stock No.:
- 136-3697
- Mfr. Part No.:
- 3RH2911-4FA40
- Brand:
- Siemens
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£13.60
(exc. VAT)
£16.32
(inc. VAT)
- RS Stock No.:
- 136-3697
- Mfr. Part No.:
- 3RH2911-4FA40
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Auxiliary Switch Block | |
| Number of Contacts | 4 | |
| Normal State Configuration | 4 NO | |
| Series | SIRIUS | |
| Contact Current | 10A | |
| Mount Type | Snap-On | |
| Terminal Type | Ring Terminal | |
| Pole and Throw Configuration | 4PST | |
| Contact Voltage | 690V ac | |
| Mounting Location | Front | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 1A | |
| Mechanical Durability | 10000000Cycles | |
| Rated Insulation Voltage Ui | 690V | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC 60947-5-1, IEC 60947-4-1 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Auxiliary Switch Block | ||
Number of Contacts 4 | ||
Normal State Configuration 4 NO | ||
Series SIRIUS | ||
Contact Current 10A | ||
Mount Type Snap-On | ||
Terminal Type Ring Terminal | ||
Pole and Throw Configuration 4PST | ||
Contact Voltage 690V ac | ||
Mounting Location Front | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 1A | ||
Mechanical Durability 10000000Cycles | ||
Rated Insulation Voltage Ui 690V | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC 60947-5-1, IEC 60947-4-1 | ||
- COO (Country of Origin):
- CZ
Auxiliary Contacts - 3RH Range
Siemens range of auxiliary contact bloacks to suit the 3RH contactors.
Front mounting position
Current rating; 6A
Accepts cables up to 2 x 2.5mm2
1 x block per contactor, 1 x block per relay
Note
* These are make before break contacts
Warning
This product is in obsolescence mode and is due for discontinuation by the manufacturer. We recommend that you review the alternative highlighted by the manufacturer. Alternatively, refer to the cross reference list in the Technical Reference section which highlights the upgrade path for your current generation of products.
