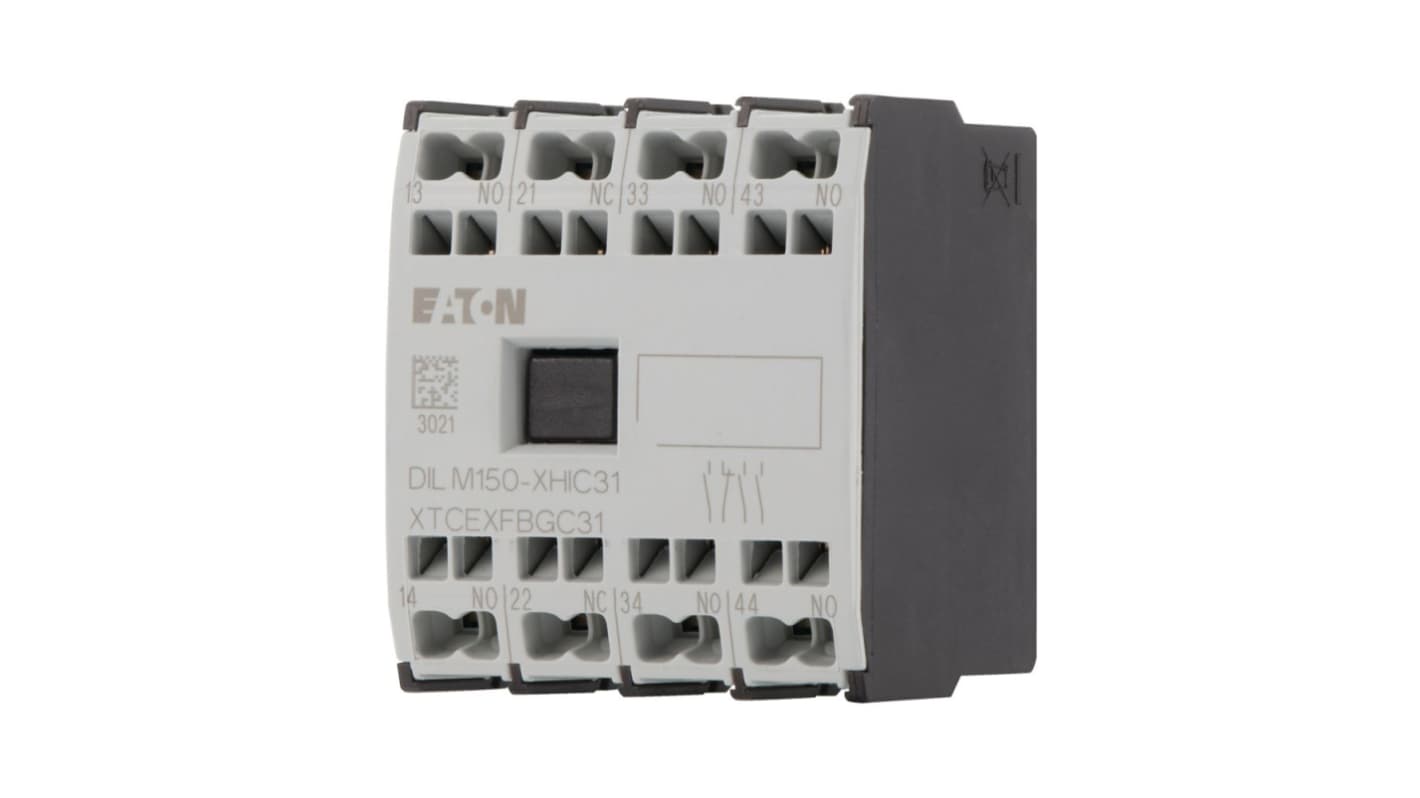

Eaton Auxiliary Contact, 4 Contact, 3 NO/3 NC, Front, 278045 DILM150-XHIC31
- RS Stock No.:
- 259-172
- Mfr. Part No.:
- 278045 DILM150-XHIC31
- Brand:
- Eaton
Subtotal (1 unit)*
£23.31
(exc. VAT)
£27.97
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 12 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.31 |
*price indicative
- RS Stock No.:
- 259-172
- Mfr. Part No.:
- 278045 DILM150-XHIC31
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Auxiliary Contact | |
| Number of Contacts | 4 | |
| Normal State Configuration | 3 NO/3 NC | |
| Series | Eaton Moeller | |
| Mount Type | Front | |
| Terminal Type | Spring Loaded | |
| Operational Current Ie | 6A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS, UL, UL 508, CSA, VDE 0660, CSA File No.: 012528, VDE, EN 60947-4-1, CSA Std. C22.2 No. 14-05, UL Category Control No.: NKCR, IEC/EN 60947, CSA Class No.: 3211-03, IEC 60947-4-1, IEC/EN 60947-4-1, CSA-C22.2 No. 14-05, UL File No.: E29184, CE | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Auxiliary Contact | ||
Number of Contacts 4 | ||
Normal State Configuration 3 NO/3 NC | ||
Series Eaton Moeller | ||
Mount Type Front | ||
Terminal Type Spring Loaded | ||
Operational Current Ie 6A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS, UL, UL 508, CSA, VDE 0660, CSA File No.: 012528, VDE, EN 60947-4-1, CSA Std. C22.2 No. 14-05, UL Category Control No.: NKCR, IEC/EN 60947, CSA Class No.: 3211-03, IEC 60947-4-1, IEC/EN 60947-4-1, CSA-C22.2 No. 14-05, UL File No.: E29184, CE | ||
- COO (Country of Origin):
- RO
The Eaton Auxiliary Contact Module is engineered for durability under rigorous conditions, it offers an impressive lifecycle performance with interlocked opposing contacts to enhance safety in electrical systems. Emitting superior versatility, this product seamlessly integrates with various configurations, making it ideal for a multitude of applications. Its robust design ensures compliance with key standards, providing peace of mind in critical environments.
User friendly spring loaded terminals facilitate quick and secure connections
Compact dimensions ensure optimal space utilisation for efficient installations
Features interlocked opposing contacts for enhanced operational safety
Engineered for high durability with an impressive lifecycle rating
Excellent ingress protection rated at IP20 to guard against dust and foreign objects
