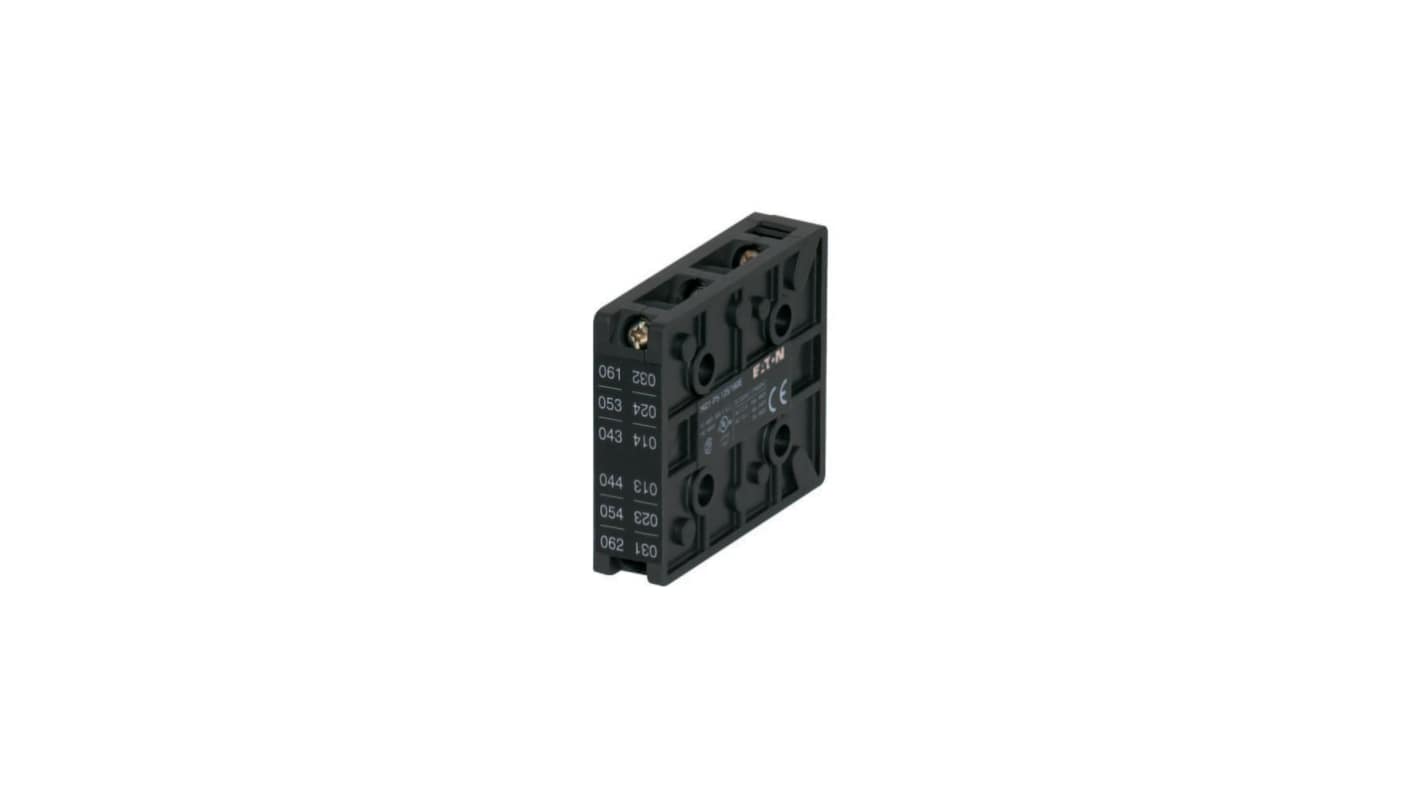

Eaton Auxiliary Contact, 3 Contact, 1 NC, Rear, 280964 HI21-P5-125/160Z
- RS Stock No.:
- 258-014
- Mfr. Part No.:
- 280964 HI21-P5-125/160Z
- Brand:
- Eaton
Subtotal (1 unit)*
£43.05
(exc. VAT)
£51.66
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.05 |
*price indicative
- RS Stock No.:
- 258-014
- Mfr. Part No.:
- 280964 HI21-P5-125/160Z
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Contacts | 3 | |
| Product Type | Auxiliary Contact | |
| Normal State Configuration | 1 NC | |
| Series | Eaton Moeller | |
| Mount Type | Rear | |
| Terminal Type | Screw | |
| Operational Current Ie | 6A | |
| Rated Insulation Voltage Ui | 500V | |
| Minimum Operating Temperature | -25°C | |
| Mounting Location | Left, Right | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | EN 60947-5 CSA Std. C22.2 No. 14-05 UL 508 IEC 60947-5 CSA File No.:223805 CSA-C22.2 No. 14-05 IEC/EN 60947-5 UL Category Control No.:NLRV, NLRV7 UL File No.:E36332 CSA CE CSA Class No.:3211-03 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Contacts 3 | ||
Product Type Auxiliary Contact | ||
Normal State Configuration 1 NC | ||
Series Eaton Moeller | ||
Mount Type Rear | ||
Terminal Type Screw | ||
Operational Current Ie 6A | ||
Rated Insulation Voltage Ui 500V | ||
Minimum Operating Temperature -25°C | ||
Mounting Location Left, Right | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals EN 60947-5 CSA Std. C22.2 No. 14-05 UL 508 IEC 60947-5 CSA File No.:223805 CSA-C22.2 No. 14-05 IEC/EN 60947-5 UL Category Control No.:NLRV, NLRV7 UL File No.:E36332 CSA CE CSA Class No.:3211-03 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Eaton Auxiliary Contact is designed for high performance applications, providing reliable operation with its dual normally open and single normally closed configurations. Tailored for seamless integration in P5 installations with a robust rear-mounting feature, this accessory ensures optimal functionality with equipment rated for 125A. It showcases precise dimensions that facilitate easy installation while maintaining excellent space efficiency.
CE marked for assurance of quality and safety
Designed to operate efficiently within a broad temperature range
Offers easy side mounting for seamless integration into existing systems
Supports screw connection type ensuring secure wiring
Robust mechanical function verified through rigorous testing
Minimal heat dissipation ensures efficient operation
