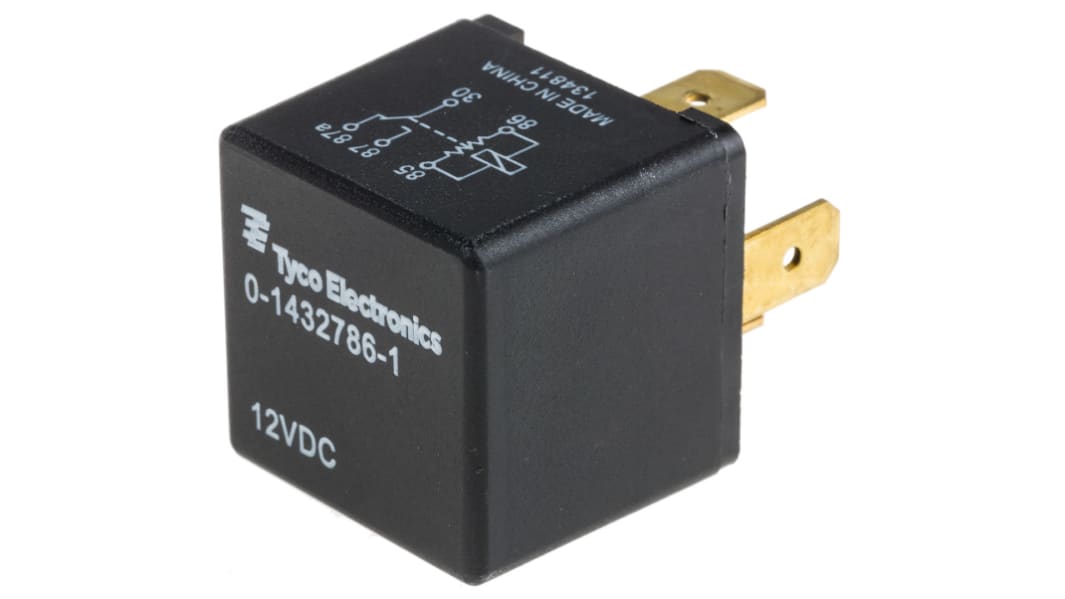

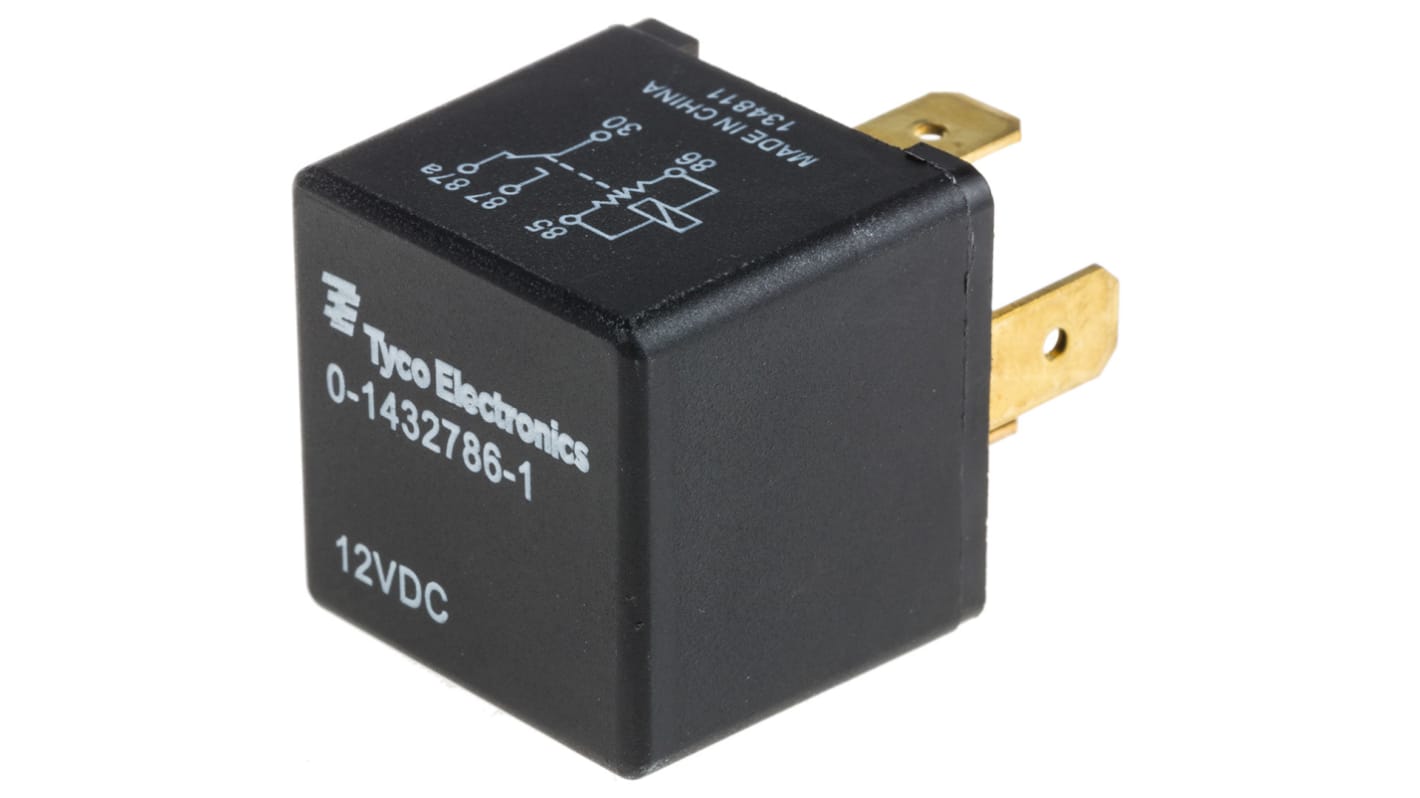

TE Connectivity Plug In Automotive Relay, 12V dc Coil Voltage, 30A Switching Current, SPDT
- RS Stock No.:
- 783-0303
- Mfr. Part No.:
- 1432786-1
- Brand:
- TE Connectivity
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price Each
£4.30
(exc. VAT)
£5.16
(inc. VAT)
Units | Per unit |
---|---|
1 + | £4.30 |
- RS Stock No.:
- 783-0303
- Mfr. Part No.:
- 1432786-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
TE Connectivity Mini ISO PI Automotive Relays
TE Connectivity Mini ISO series automotive relays feature a non-latching coil with a high expected life cycle. The VF4 series is available in a variety of mounting and terminal types, suitable for automotive applications including headlamps, ignition load etc
Features and Benefits
12V / 24V variants available
Plated brass terminals
PCB pin or plug in QC terminal options
socket, through hole, and chassis mount options
PCB pin or plug in QC terminal options
socket, through hole, and chassis mount options
Specifications
Attribute | Value |
---|---|
Coil Voltage | 12V dc |
Coil Resistance | 79.5Ω |
Contact Configuration | SPDT |
Number of Poles | 1 |
Switching Current | 30A |
Maximum Switching Current DC | 40 A |
Maximum Switching Voltage DC | 14V dc |
Mounting Type | Plug In |
Terminal Type | Quick Connect |
Life | 105Cycles |
Length | 26.5mm |
Isolation Coil To Contact | 500V rms |
Maximum Operating Temperature | +85°C |
Series | VF4 |
Minimum Operating Temperature | -40°C |
Contact Material | Silver Tin Oxide |
Depth | 26.5mm |
Height | 24.5mm |
