- RS Stock No.:
- 782-1211
- Mfr. Part No.:
- 1432797-1
- Brand:
- TE Connectivity
Available to back order for despatch when stock is available
Added
Price Each
£2.67
(exc. VAT)
£3.20
(inc. VAT)
Units | Per unit |
1 - 4 | £2.67 |
5 - 9 | £2.56 |
10 - 14 | £2.51 |
15 - 24 | £2.44 |
25 + | £2.38 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 782-1211
- Mfr. Part No.:
- 1432797-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details

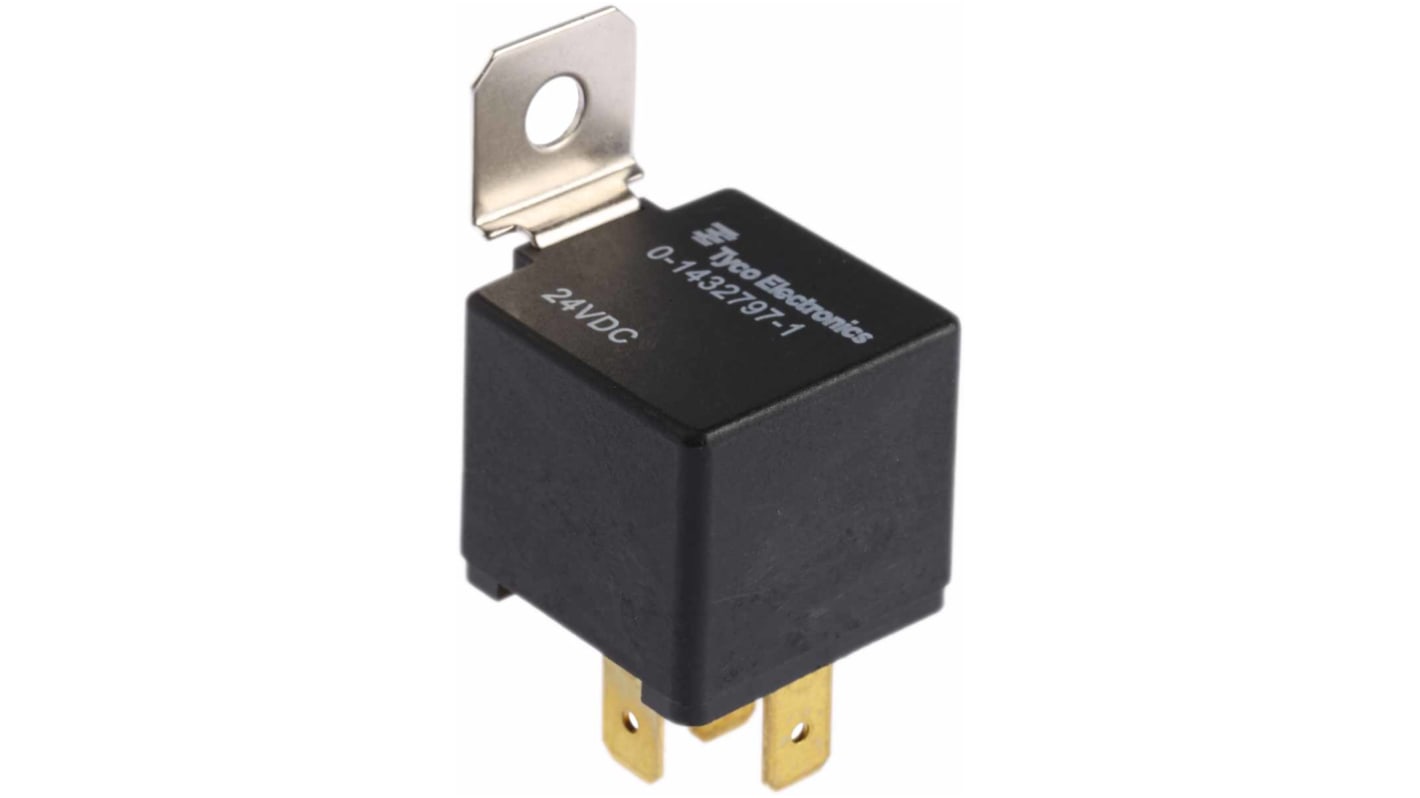

TE Connectivity Non-latching Relay
The TE Connectivity VF4 series panel mount non-latching relay has contact configuration of SPDT. It is actuated with 24VDC coil voltage. This automotive relay non-latching coil and high life expectancy.
Features and Benefits
24V variants available
Coil resistance is 360ohm
Operating time is 8 milliseconds
PCB pin or plug-in QC terminal options
Plated brass terminals
Release time is 5 milliseconds
Coil resistance is 360ohm
Operating time is 8 milliseconds
PCB pin or plug-in QC terminal options
Plated brass terminals
Release time is 5 milliseconds
Applications
Automotive applications
Headlamps
Ignition load
Headlamps
Ignition load
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Coil Resistance | 360Ω |
Contact Configuration | SPDT |
Number of Poles | 1 |
Switching Current | 30A |
Maximum Switching Current DC | 40 A |
Maximum Switching Voltage DC | 14V dc |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Contact Material | Silver Tin Oxide |
Depth | 26.5mm |
Minimum Operating Temperature | -40°C |
Series | VF4 |
Maximum Operating Temperature | +85°C |
Isolation Coil To Contact | 500V rms |
Life | 105Cycles |
Length | 26.5mm |
Height | 24.5mm |
