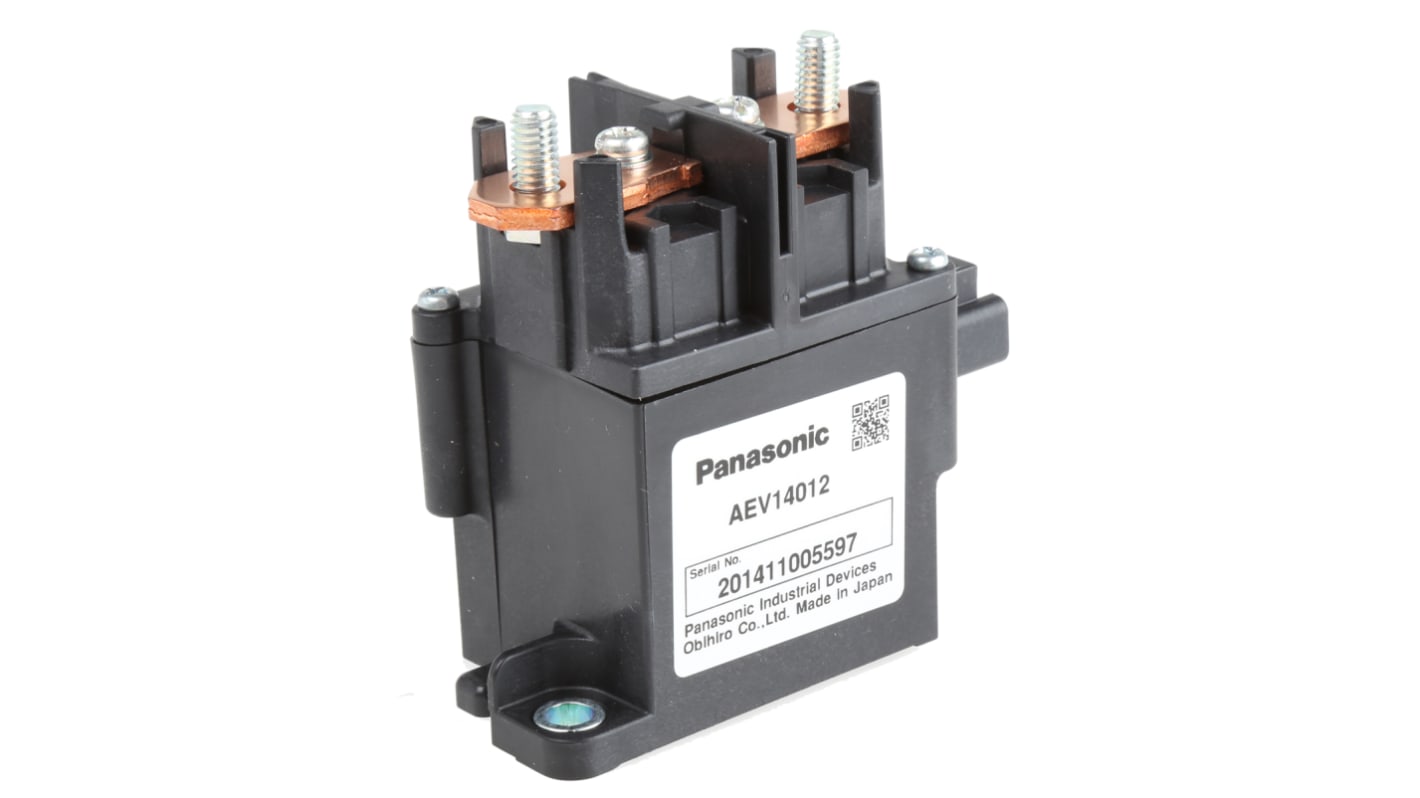

Panasonic Flange Mount Automotive Relay, 12V dc Coil Voltage, 120A Switching Current, SPST
- RS Stock No.:
- 699-5484
- Mfr. Part No.:
- AEV14012
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 unit)*
£228.26
(exc. VAT)
£273.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £228.26 |
25 - 49 | £216.85 |
50 - 99 | £205.89 |
100 - 249 | £195.62 |
250 + | £186.03 |
*price indicative
- RS Stock No.:
- 699-5484
- Mfr. Part No.:
- AEV14012
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Coil Voltage | 12V dc | |
Coil Resistance | 34 Ω | |
Contact Configuration | SPST | |
Number of Poles | 1 | |
Switching Current | 120A | |
Mounting Type | Flange Mount | |
Terminal Type | Screw | |
Height | 80mm | |
Maximum Switching Power DC | 4.2 W | |
Life | 200000 (Electrical) cycles | |
Depth | 40mm | |
Isolation Coil To Contact | 2.5kV | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -40°C | |
Length | 82.75mm | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Coil Voltage 12V dc | ||
Coil Resistance 34 Ω | ||
Contact Configuration SPST | ||
Number of Poles 1 | ||
Switching Current 120A | ||
Mounting Type Flange Mount | ||
Terminal Type Screw | ||
Height 80mm | ||
Maximum Switching Power DC 4.2 W | ||
Life 200000 (Electrical) cycles | ||
Depth 40mm | ||
Isolation Coil To Contact 2.5kV | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Length 82.75mm | ||
- COO (Country of Origin):
- JP
Panasonic High Capacity AEV Series Automotive Relays
Automotive power relays come in many different shapes, sizes, styles, and ratings. They can be found in almost every car, truck, tractor or boat. Relays enable low amperage circuits to switch circuits with higher amperages. Most automotive relays will have either Single-Pole, Single-Throw (SPST) or Single-Pole, Double-Throw (SPDT) arrangements that draw minimal current. In addition, they will have either N/O (Normally Open) or N/C (Normally Closed) contacts
From Panasonic the AEV series of high current automotive relays designed for chassis or flange mounting. Featuring a sealed capsule mechanism, the contact portion is sealed in hydrogen gas, so no contact oxidation occurs. Thus, promoting high contact reliability. Extremely reliable and efficient the AEV series of automotive relays typically used for switching high current circuits or high DC voltage applications.
Compact and lightweight the Panasonic AEV automotive relays are often used in designs where space saving is a priority. Manufactured from high-quality materials the Panasonic AEV series relays have a long life and can be relied upon for all your design, maintenance, and repair needs.
Features and Benefits
- Robust and reliable
- Compact case for space-saving
- Lightweight
- Dust and waterproof
- SPNO contact configuration
- Form A with screw terminals and terminal protection cover
- Copper alloy contacts
- 12 V dc and 24 V dc coils
- 80 A 120A and 300 A capacity
- Wide temperature range, -40 to +80˚C
Applications
High current automotive relays are used in a wide range of switching applications across many different types of environments and sectors. Automotive relays are one of the most common components used in electrical and electronic power circuits. Some of the most common are;
- Electric Vehicles
- Auto Electrical
- Hybrid Vehicles
- Fuel-cell Vehicles
- Battery charge and discharge systems
- General Automotive or motor use
- Construction equipment
