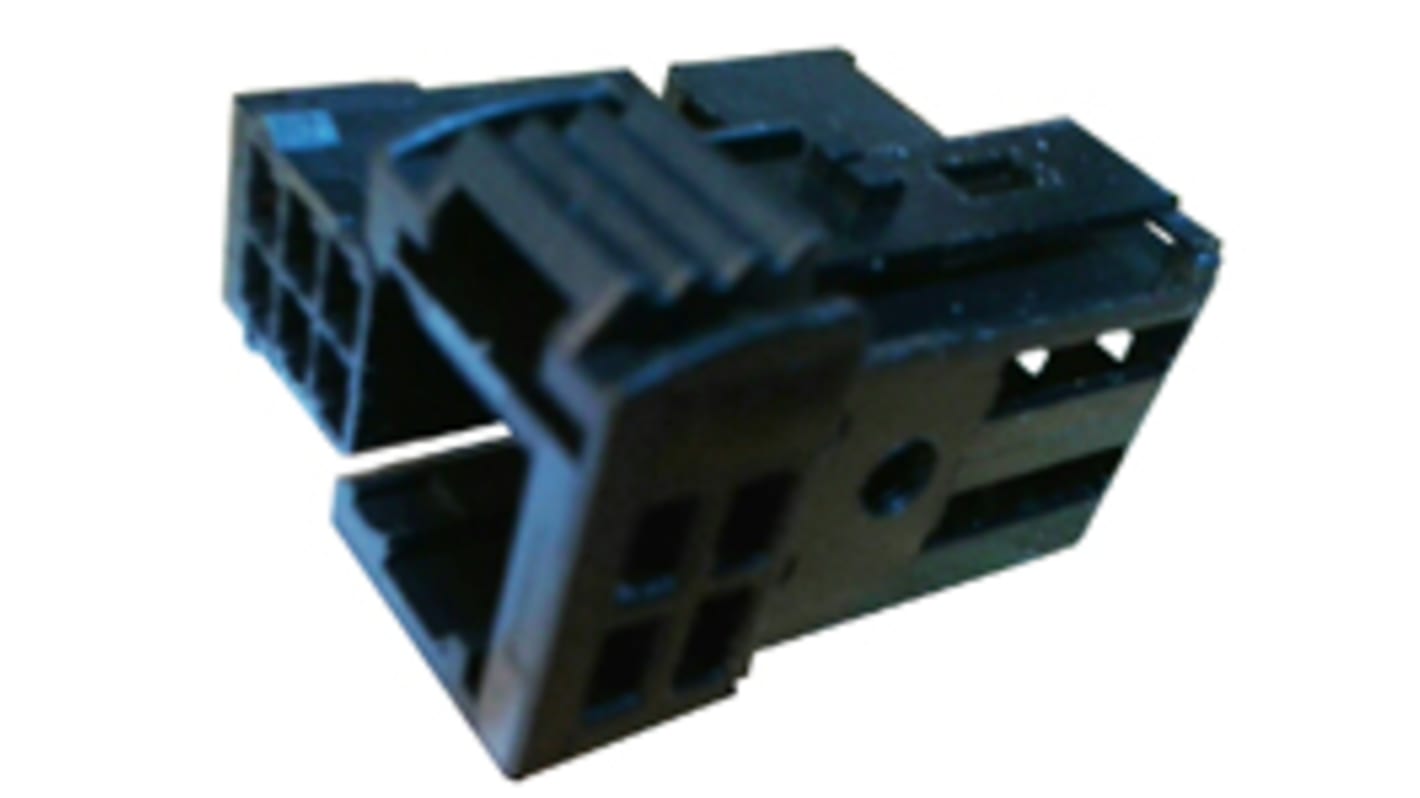

Molex, MOX Automotive Connector Socket Black Cable Mount 6 Way, Crimp Termination 98298-0001
- RS Stock No.:
- 841-1849
- Mfr. Part No.:
- 98298-0001
- Brand:
- Molex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 841-1849
- Mfr. Part No.:
- 98298-0001
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Type | Crimp Housing | |
Number of Contacts | 6 | |
Gender | Female | |
Number of Rows | 2 | |
Current Rating | 6A | |
Mounting Type | Cable Mount | |
Series | MOX | |
Colour | Black | |
Termination Method | Crimp | |
Height | 15.3mm | |
Width | 19.75mm | |
Housing Material | PET | |
Depth | 23.7mm | |
Contact Plating | Gold, Tin | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -40°C | |
Series Number | 98298 | |
Select all | ||
---|---|---|
Brand Molex | ||
Type Crimp Housing | ||
Number of Contacts 6 | ||
Gender Female | ||
Number of Rows 2 | ||
Current Rating 6A | ||
Mounting Type Cable Mount | ||
Series MOX | ||
Colour Black | ||
Termination Method Crimp | ||
Height 15.3mm | ||
Width 19.75mm | ||
Housing Material PET | ||
Depth 23.7mm | ||
Contact Plating Gold, Tin | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Series Number 98298 | ||
Micro Omega Molex (MOX) Receptacle Housings, 98298 Series
The Molex 2-by-3 MOX Connector series 98298 Receptacles are a 'breakable' one-piece moulded, snap design using MOX Terminals (stock number 720-6684 ) to provide easier handling and reductions in harness assembly times. The colour coding of the 2-by-3 MOX Connector series 98298 Receptacles avoids mismatching of connectors.
Micro Omega Molex (MOX) Range
The MOX (Micro Omega Molex) connector family is unsealed but designed for use in harsh automotive applications. The MOX system is a 64 circuit by 2-row, 0.635mm (.025") pitch for wire-to-board connections. Applications include: airbag controllers, body electronics and comfort-and-convenience systems for which the MOX family provide a proven and cost effective solution. All MOX connectors use the MicroQuadlok System (MQS) cavity and are fully compatible with the standard MQS/MOX interfaces.
The MOX Crimp Terminal is a universal contact system for automotive electronics and typical features include: high-density packaging of 2.54 by 2.54mm (.100 by .100") centerline with a robust and reliable design.
