Molex, Mizu-P25 Automotive Connector Socket Cable Mount 2 Way 52117-0241
- RS Stock No.:
- 797-8880
- Distrelec Article No.:
- 304-57-406
- Mfr. Part No.:
- 52117-0241
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 5 units)*
£10.70
(exc. VAT)
£12.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 395 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.14 | £10.70 |
| 25 - 95 | £1.892 | £9.46 |
| 100 + | £1.504 | £7.52 |
*price indicative
- RS Stock No.:
- 797-8880
- Distrelec Article No.:
- 304-57-406
- Mfr. Part No.:
- 52117-0241
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 2 | |
| Type | Automotive Connector | |
| Gender | Female | |
| Number of Rows | 1 | |
| Mounting Type | Cable Mount | |
| Series | Mizu-P25 | |
| Width | 9.7mm | |
| Housing Material | PET | |
| Depth | 15.7mm | |
| Series Number | 52117 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 2 | ||
Type Automotive Connector | ||
Gender Female | ||
Number of Rows 1 | ||
Mounting Type Cable Mount | ||
Series Mizu-P25 | ||
Width 9.7mm | ||
Housing Material PET | ||
Depth 15.7mm | ||
Series Number 52117 | ||
- COO (Country of Origin):
- JP

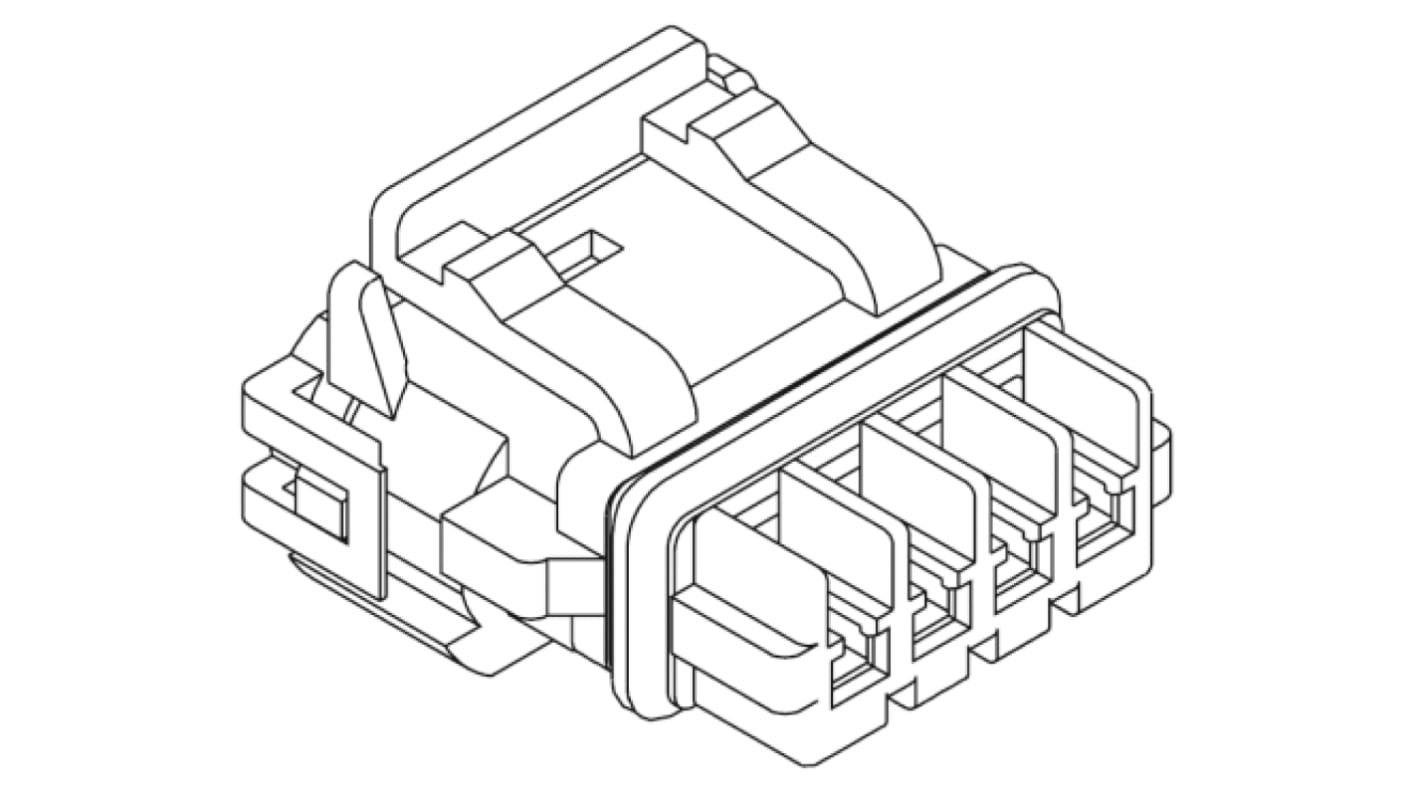

Mizu-P25 250 Volts Type IP67 Waterproof Receptacle - 52117 Series
These Molex Mizu-P25 IP67 72117 series Sealed Receptacles have an inner positive lock to provide secure connection.
For female Crimp Terminal contacts see stock number 797-8711 .
For female Crimp Terminal contacts see stock number 797-8711 .
White Mizu-P25 part numbers end in 72117-xxx0
Black Mizu-P25 part numbers end in 72117-xxx1
Black Mizu-P25 part numbers end in 72117-xxx1
Molex Splash Proof Range
The Molex Mizu-P25 Sealed Wire-to-Wire range of automotive connectors features a unique seal stopper to provide waterproof protection coupled with a low-insertion force. These Mizu-P25 connectors have friction locks to save space and protect the latch plus polarizing ribs for correct mating on assembly. The Mizu-P25 terminals have a spring-beam design to provide high-pressure with a small-deflection ideal for high-vibration applications. These Mizu-P25 connectors also meet the JIS DO203S2 waterproof compliant standards.
