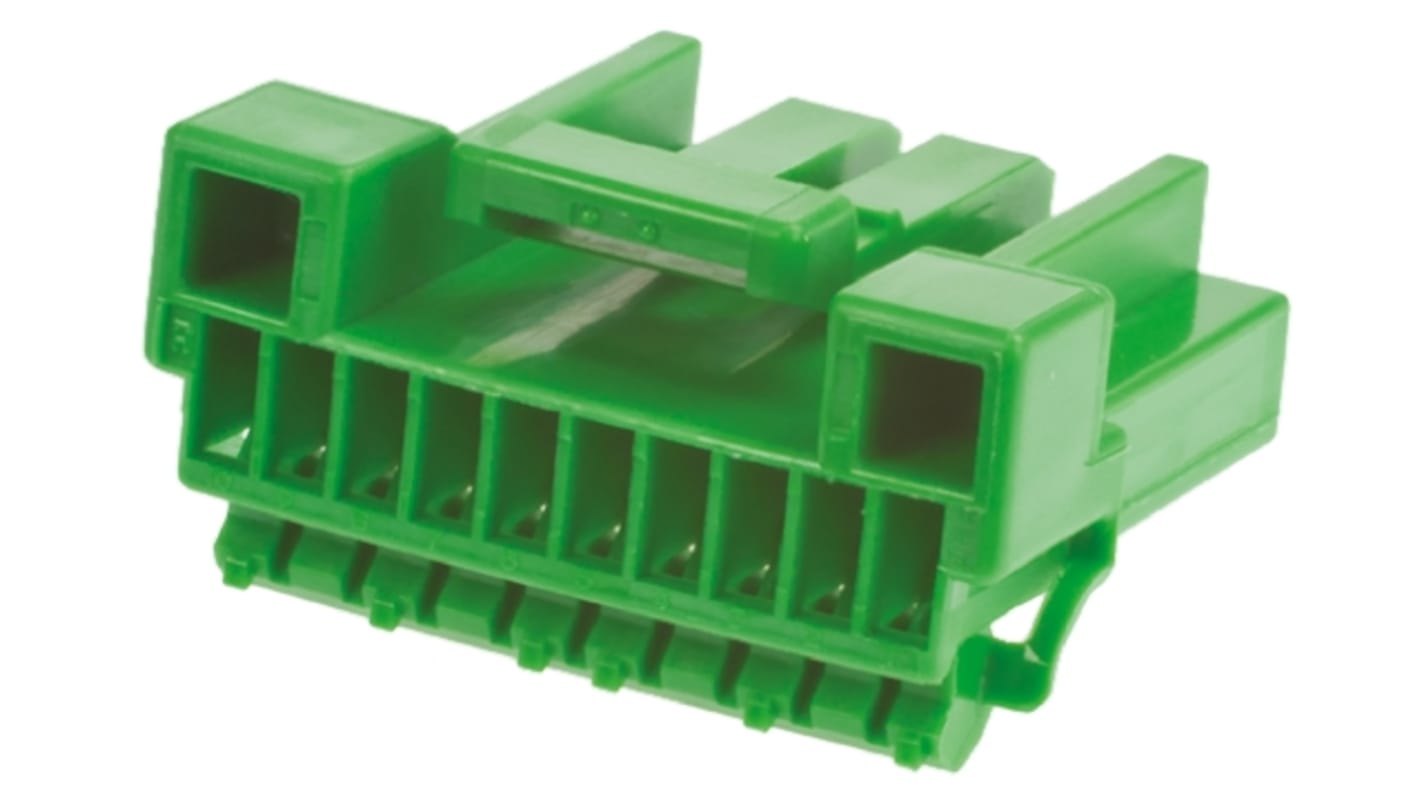

JAE, IL-AG5 Automotive Connector Socket 10 Way
- RS Stock No.:
- 727-5753
- Mfr. Part No.:
- IL-AG5-10S-S3C1
- Brand:
- JAE
90 In stock - FREE next working day delivery available
Added
Price Each
£0.14
(exc. VAT)
£0.17
(inc. VAT)
| Units | Per unit |
| 1 + | £0.14 |
- RS Stock No.:
- 727-5753
- Mfr. Part No.:
- IL-AG5-10S-S3C1
- Brand:
- JAE
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Socket Housing 1 and 2 Row Standard socket contact
Note
JAE IL-AG5 Series Automotive Connectors
Designed for automotive instrument panel applications
Mechanical lock assures positive mating
Unique housing configuration helps prevent mismating
Double lock mechanism prevents dislodging of contacts
A polarized version is available (for single row, 5 and 6 contacts only)
High reliable socket contacts
Simplified crimp-type termination
Mechanical lock assures positive mating
Unique housing configuration helps prevent mismating
Double lock mechanism prevents dislodging of contacts
A polarized version is available (for single row, 5 and 6 contacts only)
High reliable socket contacts
Simplified crimp-type termination
Specifications
Attribute | Value |
|---|---|
| Type | Socket Housing |
| Number of Contacts | 10 |
| Gender | Female |
| Number of Rows | 1 |
| Current Rating | 3A |
| Mounting Type | Cable Mount |
| Series | IL-AG5 |
| Colour | Yellow |
| Height | 12.8mm |
| Width | 28.6mm |
| Housing Material | PBT |
| Depth | 24.6mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
