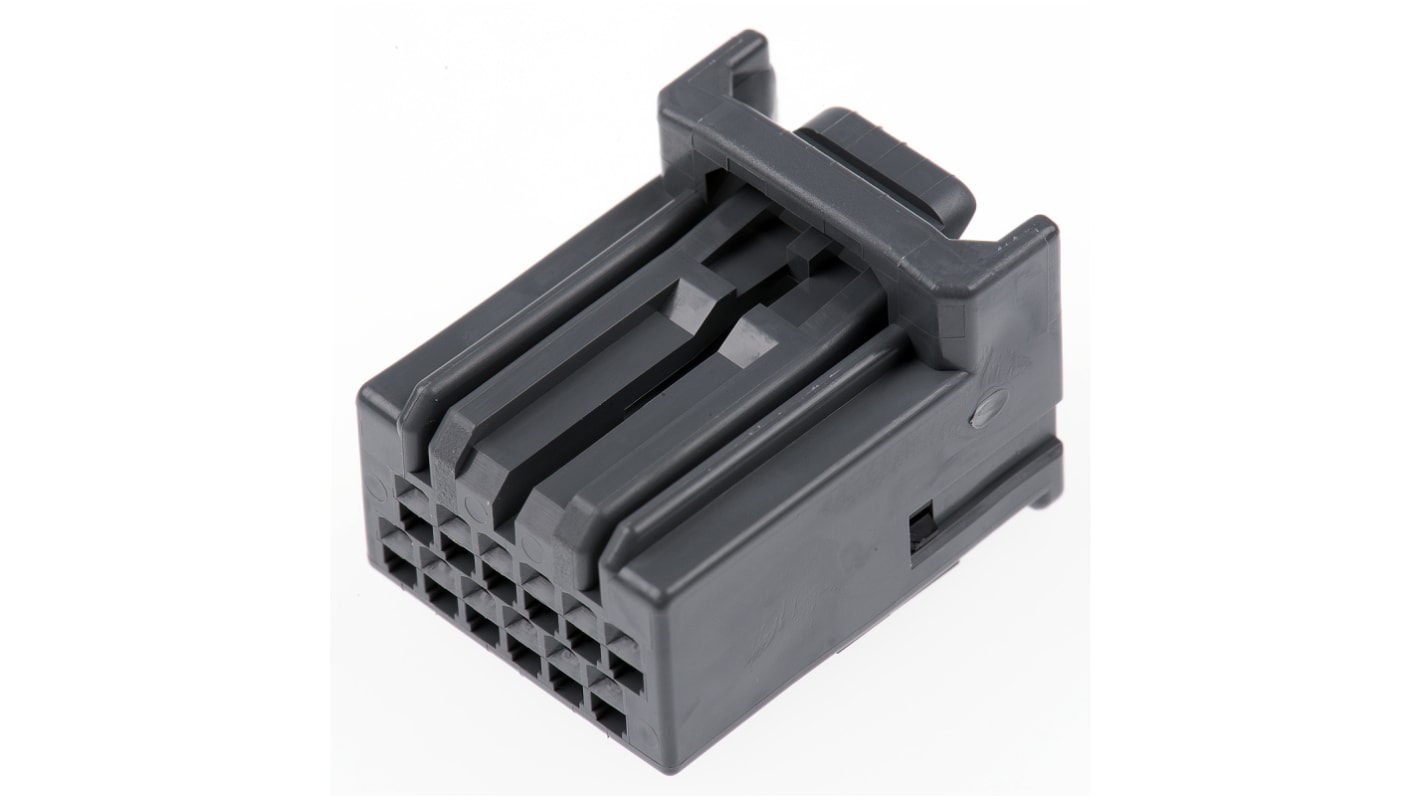

JAE, MX34 Automotive Connector Socket Grey Cable Mount 12 Way MX34012SF1
- RS Stock No.:
- 690-9877
- Mfr. Part No.:
- MX34012SF1
- Brand:
- JAE
Save 18% when you buy 100 units
Subtotal (1 unit)*
£0.83
(exc. VAT)
£1.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 948 unit(s) ready to ship
- Plus 265 unit(s) ready to ship from another location
- Plus 915 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.83 |
| 10 - 99 | £0.77 |
| 100 + | £0.68 |
*price indicative
- RS Stock No.:
- 690-9877
- Mfr. Part No.:
- MX34012SF1
- Brand:
- JAE
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JAE | |
| Number of Contacts | 12 | |
| Type | Socket Housing | |
| Gender | Female | |
| Number of Rows | 2 | |
| Current Rating | 3A | |
| Mounting Type | Cable Mount | |
| Series | MX34 | |
| Colour | Grey | |
| Height | 14mm | |
| Width | 16.3mm | |
| Housing Material | Nylon, PPE | |
| Depth | 21.3mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand JAE | ||
Number of Contacts 12 | ||
Type Socket Housing | ||
Gender Female | ||
Number of Rows 2 | ||
Current Rating 3A | ||
Mounting Type Cable Mount | ||
Series MX34 | ||
Colour Grey | ||
Height 14mm | ||
Width 16.3mm | ||
Housing Material Nylon, PPE | ||
Depth 21.3mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
MX34 Socket Housing 2 Row
JAE MX34 Series Automotive Connectors
The MX34 series connectors are compact, non-waterproof board-to-cable connectors, and are developed for automotive use.,The up to 40 poles reduces mating and unmating force to 80N or less and improves workability. Furthermore, automotive connector requirements such as the preset type of double locking mechanism and box type of pin header are satisfied
Socket contact with box-type pin header provides a durable combination to external forces
Contacts are highly resistant to twisting and equipped with a proven double leaf spring
The preset-type retainer needs to be completely inserted into the housing for the connector to be engaged, therefore any incomplete contact insertion is detected
The Lock spring is equipped with a bridge which protects the contact from external load
Contacts are highly resistant to twisting and equipped with a proven double leaf spring
The preset-type retainer needs to be completely inserted into the housing for the connector to be engaged, therefore any incomplete contact insertion is detected
The Lock spring is equipped with a bridge which protects the contact from external load
