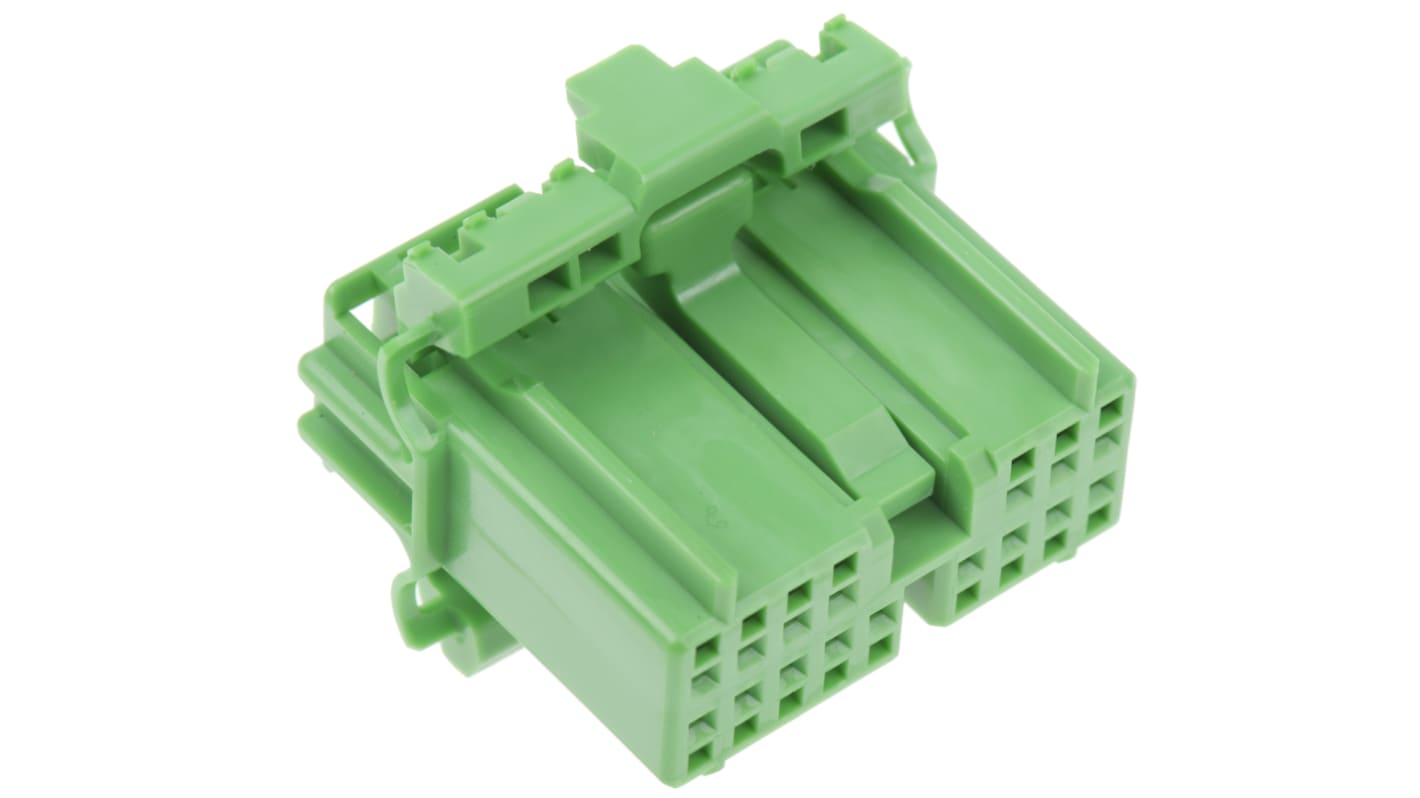

JAE, IL-AG5 Automotive Connector Socket 16 Way
- RS Stock No.:
- 690-9809
- Mfr. Part No.:
- IL-AG5-16S-D3C1-A
- Brand:
- JAE
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 690-9809
- Mfr. Part No.:
- IL-AG5-16S-D3C1-A
- Brand:
- JAE
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JAE | |
| Number of Contacts | 16 | |
| Type | Automotive connector housing | |
| Gender | Female | |
| Number of Rows | 2 | |
| Current Rating | 3A | |
| Mounting Type | Cable Mount | |
| Series | IL-AG5 | |
| Colour | Green | |
| Height | 16.6mm | |
| Width | 29.2mm | |
| Depth | 24.6mm | |
| Housing Material | PBT | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand JAE | ||
Number of Contacts 16 | ||
Type Automotive connector housing | ||
Gender Female | ||
Number of Rows 2 | ||
Current Rating 3A | ||
Mounting Type Cable Mount | ||
Series IL-AG5 | ||
Colour Green | ||
Height 16.6mm | ||
Width 29.2mm | ||
Depth 24.6mm | ||
Housing Material PBT | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Not Applicable
Socket Housing 2 Row Standard socket contact
Note
JAE IL-AG5 Series Automotive Connectors
Designed for automotive instrument panel applications
Mechanical lock assures positive mating
Unique housing configuration helps prevent mismating
Double lock mechanism prevents dislodging of contacts
A polarized version is available (for single row, 5 and 6 contacts only)
High reliable socket contacts
Simplified crimp-type termination
Mechanical lock assures positive mating
Unique housing configuration helps prevent mismating
Double lock mechanism prevents dislodging of contacts
A polarized version is available (for single row, 5 and 6 contacts only)
High reliable socket contacts
Simplified crimp-type termination
