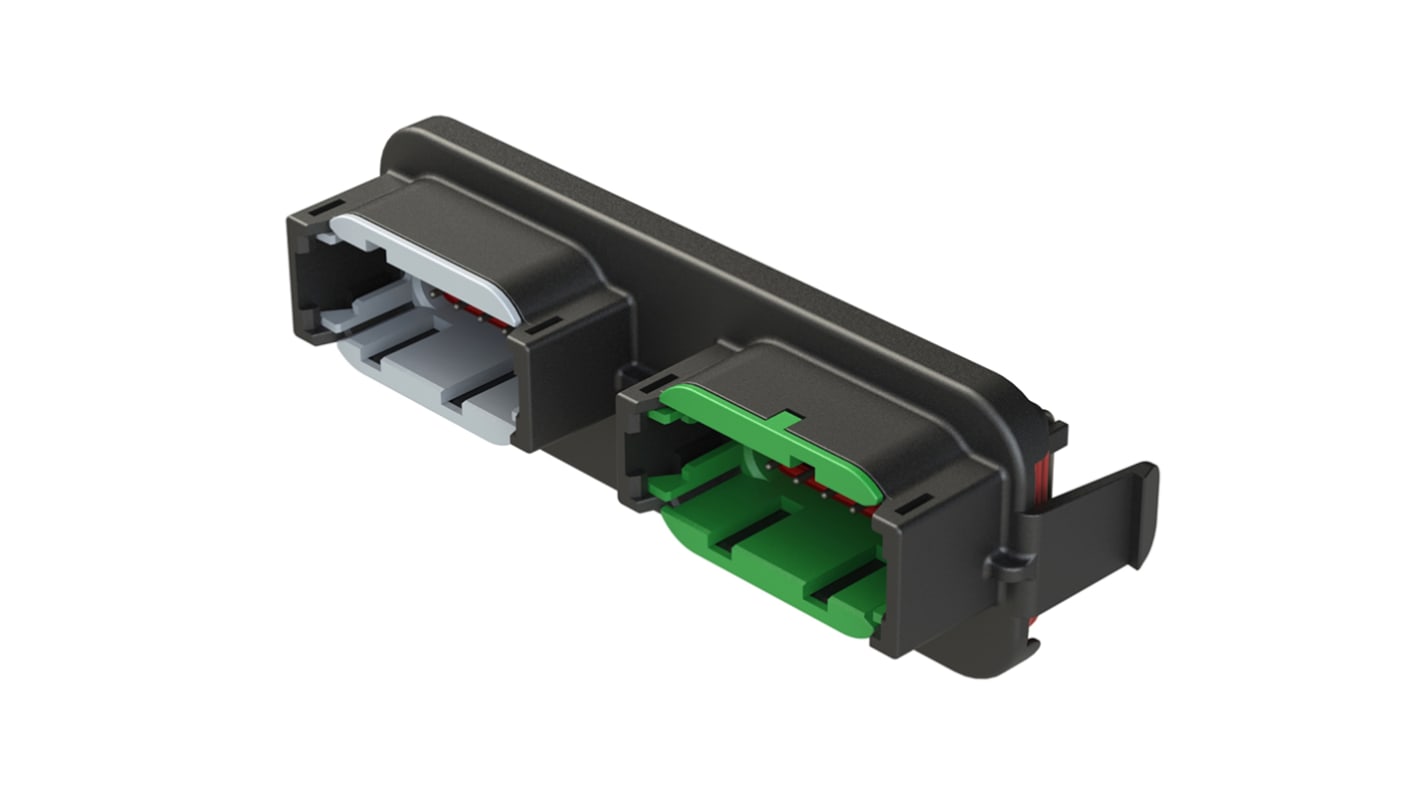

Amphenol Industrial, Armor IPX Automotive Connector Plug Black PCB 24 Way, Solder Termination ATM13-12PA-12PC-BM03
- RS Stock No.:
- 195-6042
- Mfr. Part No.:
- ATM13-12PA-12PC-BM03
- Brand:
- Amphenol Industrial
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 195-6042
- Mfr. Part No.:
- ATM13-12PA-12PC-BM03
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Type | Header | |
| Number of Contacts | 24 | |
| Gender | Male | |
| Number of Rows | 2 | |
| Current Rating | 7.5A | |
| Mounting Type | PCB | |
| Series | Armor IPX | |
| Colour | Black | |
| IP Rating | IP69K | |
| Termination Method | Solder | |
| Height | 35mm | |
| Width | 101mm | |
| Depth | 36.9mm | |
| Housing Material | Thermoplastic | |
| Maximum Operating Temperature | +125°C | |
| Series Number | ATM13 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Type Header | ||
Number of Contacts 24 | ||
Gender Male | ||
Number of Rows 2 | ||
Current Rating 7.5A | ||
Mounting Type PCB | ||
Series Armor IPX | ||
Colour Black | ||
IP Rating IP69K | ||
Termination Method Solder | ||
Height 35mm | ||
Width 101mm | ||
Depth 36.9mm | ||
Housing Material Thermoplastic | ||
Maximum Operating Temperature +125°C | ||
Series Number ATM13 | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- CN
ATM™ Header, Thermoplastic, (2) 12 Position size 20, A&C Key - Tin Plating. Comparable to PN# DTM13-12PA-12PC-R008
