Amphenol Industrial, AT Automotive Connector Plug 12 Way
- RS Stock No.:
- 195-5885
- Mfr. Part No.:
- AT04-12PA-BL08
- Brand:
- Amphenol Industrial
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Box of 50)
£5.909
(exc. VAT)
£7.091
(inc. VAT)
| Units | Per unit | Per Box* |
| 50 - 50 | £5.909 | £295.45 |
| 100 + | £5.614 | £280.70 |
| *price indicative | ||
- RS Stock No.:
- 195-5885
- Mfr. Part No.:
- AT04-12PA-BL08
- Brand:
- Amphenol Industrial
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Available in positions 2, 3, 4, 6, 8, 12
Size 16 contacts with 13A continuous capacity
Silicone elastomer rear seals
Rectangular, thermoplastic housing
Secondary wedge locks secure contacts (sold separately)
Thermoplastic housing with integrated latch for mating
Applications
Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy, Agricultural and other demanding interconnect architectures
Size 16 contacts with 13A continuous capacity
Silicone elastomer rear seals
Rectangular, thermoplastic housing
Secondary wedge locks secure contacts (sold separately)
Thermoplastic housing with integrated latch for mating
Applications
Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy, Agricultural and other demanding interconnect architectures

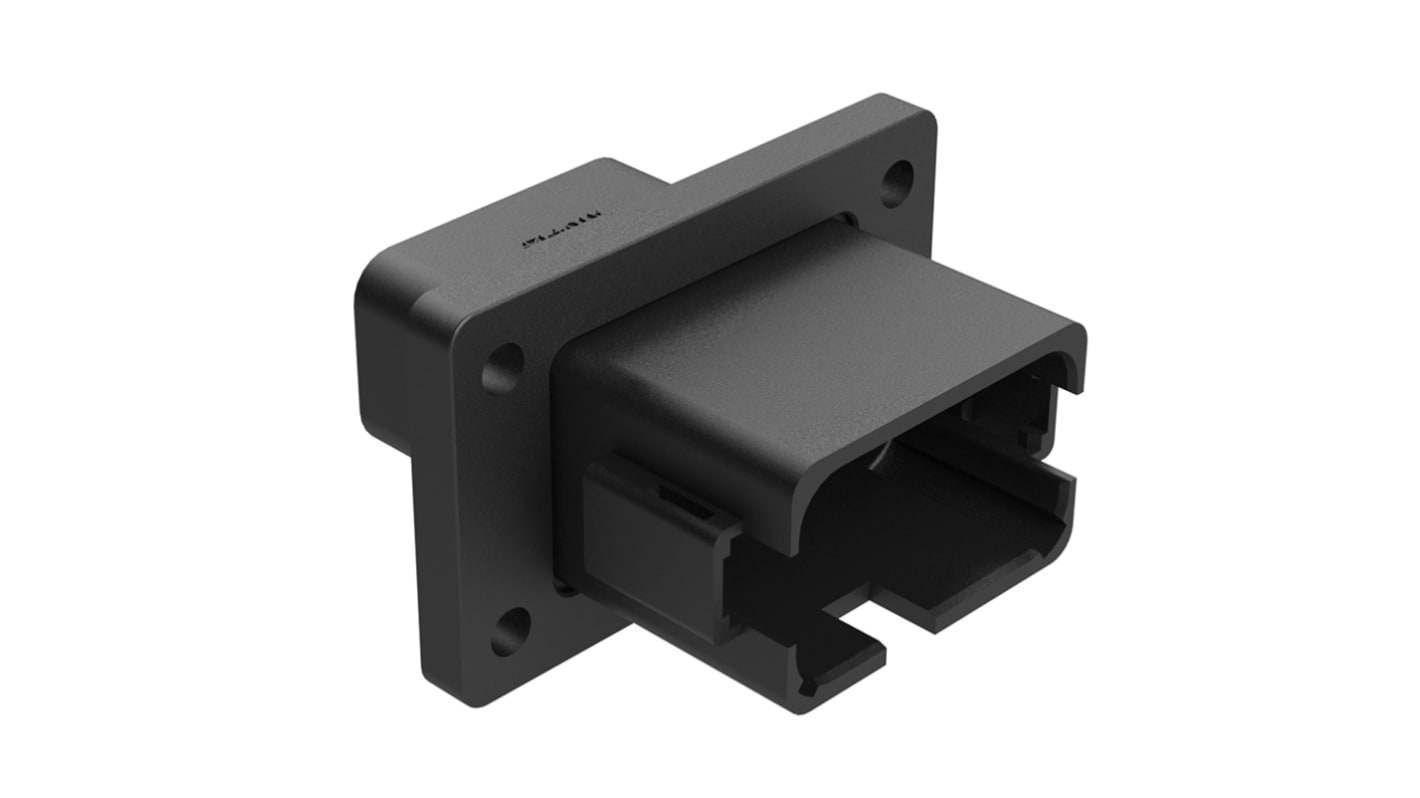

12 Position Receptacle Flange Mount Connector, Pin, Black, Keyed A, Enhanced Key
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 12 |
| Type | Automotive Connector |
| Gender | Male |
| Number of Rows | 2 |
| Current Rating | 13A |
| Mounting Type | Panel Mount |
| Series | AT |
| Colour | Black |
| IP Rating | IP67 |
| Height | 35.6mm |
| Width | 55.4mm |
| Housing Material | Thermoplastic |
| Depth | 50.6mm |
| Minimum Operating Temperature | -55°C |
| Series Number | AT04 |
| Maximum Operating Temperature | +125°C |
