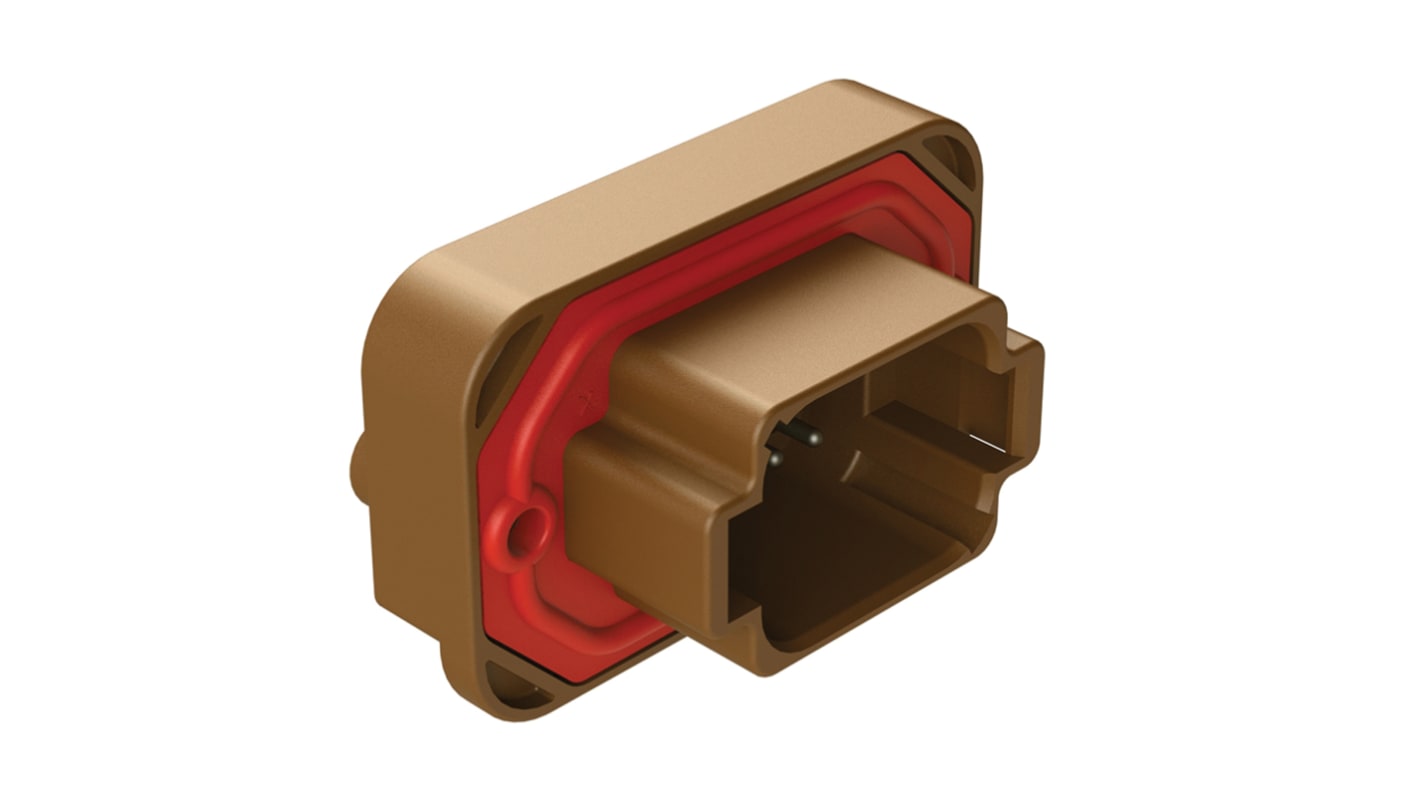

Amphenol Industrial, AT Automotive Connector Plug Brown Flange Mount 8 Way AT15-08PD-BM03
- RS Stock No.:
- 195-5829
- Mfr. Part No.:
- AT15-08PD-BM03
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£5.54
(exc. VAT)
£6.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 138 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.54 |
| 10 - 24 | £5.40 |
| 25 + | £5.26 |
*price indicative
- RS Stock No.:
- 195-5829
- Mfr. Part No.:
- AT15-08PD-BM03
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Number of Contacts | 8 | |
| Type | Automotive Connector | |
| Gender | Male | |
| Number of Rows | 2 | |
| Current Rating | 13A | |
| Mounting Type | Flange Mount | |
| Series | AT | |
| Colour | Brown | |
| IP Rating | IP67 | |
| Height | 35.3mm | |
| Width | 55.1mm | |
| Housing Material | Thermoplastic | |
| Depth | 30mm | |
| Maximum Operating Temperature | +125°C | |
| Contact Plating | Tin | |
| Series Number | AT15 | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 8 | ||
Type Automotive Connector | ||
Gender Male | ||
Number of Rows 2 | ||
Current Rating 13A | ||
Mounting Type Flange Mount | ||
Series AT | ||
Colour Brown | ||
IP Rating IP67 | ||
Height 35.3mm | ||
Width 55.1mm | ||
Housing Material Thermoplastic | ||
Depth 30mm | ||
Maximum Operating Temperature +125°C | ||
Contact Plating Tin | ||
Series Number AT15 | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- CN
Amphenol Sine Systems’ BoardLock™ AT13/15 Series is a flanged, 90° right angle or 180° straight, wire-to-board environmentally-sealed thermoplastic connection system with a maximum current rating of 13A. Featuring a compact, durable, low-profile and lightweight design, perfect for power or data signal applications in Heavy Equipment, Transportation, Industrial, Off-Road and Harsh Environments. All BoardLock™ product lines accept A Series components and are compatible with other industry standard mating connectors. Potential Applications: Power & Signal Connectivity, Data Acquisition, HVAC Systems, Farming Implementation, Boating, Sealed Environments
Snap-Lock or Screw-Lock Mounting
Potted or Unpotted
Flanged or Flangeless
180° Straight or 90° Right Angle Pin Orientation
Applications
Power & Signal Connectivity, Data Acquisition, HVAC Systems, Farming Implementation, Boating, Sealed Environments, Heavy Equipment, Transportation, Industrial, Off-Road and Harsh Environments
Potted or Unpotted
Flanged or Flangeless
180° Straight or 90° Right Angle Pin Orientation
Applications
Power & Signal Connectivity, Data Acquisition, HVAC Systems, Farming Implementation, Boating, Sealed Environments, Heavy Equipment, Transportation, Industrial, Off-Road and Harsh Environments
8 Position Straight Flange Mount PCB Receptacle, Brown, Tin Plated Contacts Included. Keyed D
