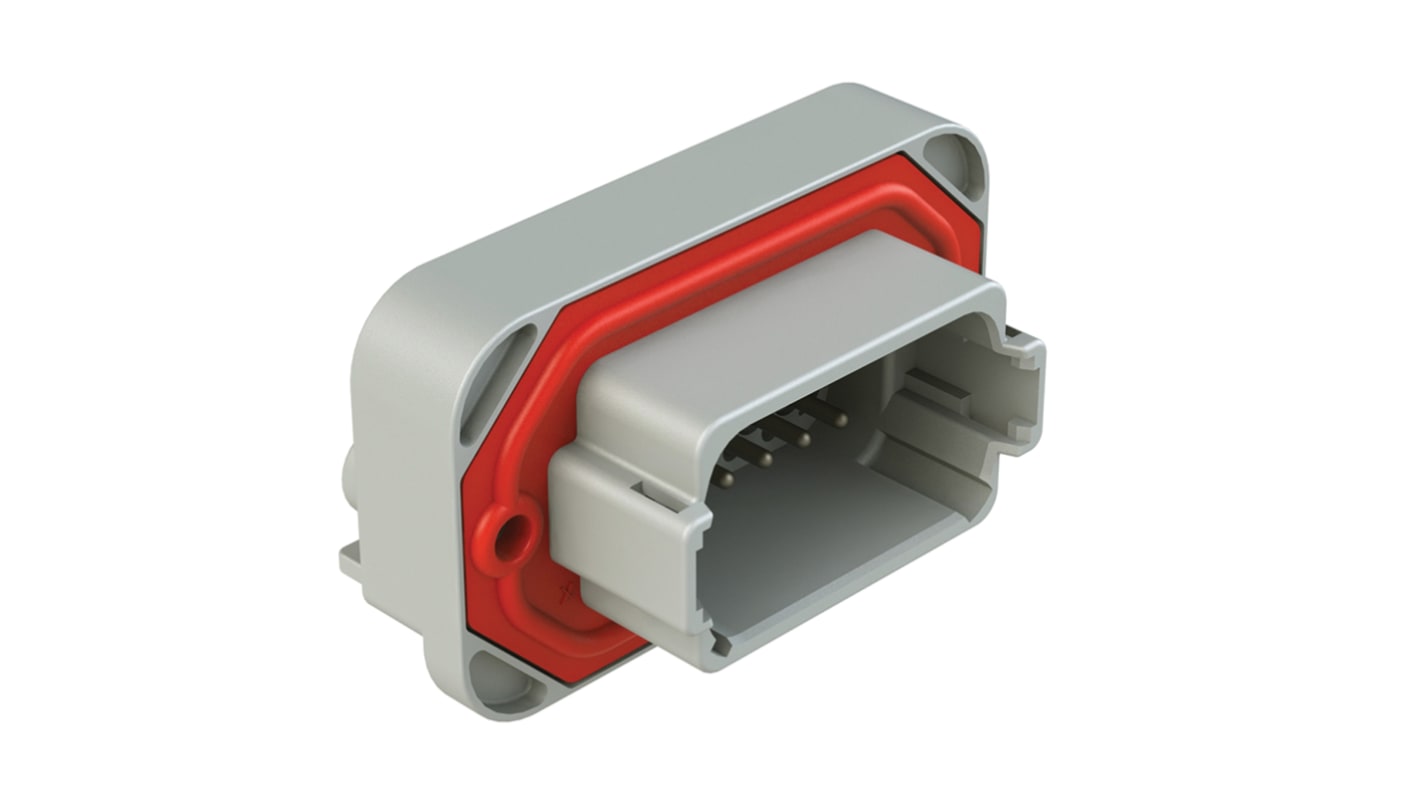

Amphenol Industrial, AT Automotive Connector Plug Grey Flange Mount 12 Way AT13-12PA-BM03
- RS Stock No.:
- 195-5810
- Mfr. Part No.:
- AT13-12PA-BM03
- Brand:
- Amphenol Industrial
Save 2% when you buy 100 units
Subtotal (1 box of 20 units)*
£173.26
(exc. VAT)
£207.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 80 | £8.663 | £173.26 |
| 100 + | £8.422 | £168.44 |
*price indicative
- RS Stock No.:
- 195-5810
- Mfr. Part No.:
- AT13-12PA-BM03
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Number of Contacts | 12 | |
| Type | Automotive Connector | |
| Gender | Male | |
| Number of Rows | 2 | |
| Current Rating | 13A | |
| Mounting Type | Flange Mount | |
| Series | AT | |
| Colour | Grey | |
| IP Rating | IP67 | |
| Height | 35.3mm | |
| Width | 59.2mm | |
| Depth | 39.5mm | |
| Housing Material | Thermoplastic | |
| Minimum Operating Temperature | -55°C | |
| Contact Material | Copper Alloy | |
| Series Number | AT13 | |
| Maximum Operating Temperature | +125°C | |
| Contact Plating | Tin | |
Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 12 | ||
Type Automotive Connector | ||
Gender Male | ||
Number of Rows 2 | ||
Current Rating 13A | ||
Mounting Type Flange Mount | ||
Series AT | ||
Colour Grey | ||
IP Rating IP67 | ||
Height 35.3mm | ||
Width 59.2mm | ||
Depth 39.5mm | ||
Housing Material Thermoplastic | ||
Minimum Operating Temperature -55°C | ||
Contact Material Copper Alloy | ||
Series Number AT13 | ||
Maximum Operating Temperature +125°C | ||
Contact Plating Tin | ||
- COO (Country of Origin):
- CN
Amphenol Sine Systems’ BoardLock™ AT13/15 Series is a flanged, 90° right angle or 180° straight, wire-to-board environmentally-sealed thermoplastic connection system with a maximum current rating of 13A. Featuring a compact, durable, low-profile and lightweight design, perfect for power or data signal applications in Heavy Equipment, Transportation, Industrial, Off-Road and Harsh Environments. All BoardLock™ product lines accept A Series components and are compatible with other industry standard mating connectors. Potential Applications: Power & Signal Connectivity, Data Acquisition, HVAC Systems, Farming Implementation, Boating, Sealed Environments
Snap-Lock or Screw-Lock Mounting
Potted or Unpotted
Flanged or Flangeless
180° Straight or 90° Right Angle Pin Orientation
Applications
Power & Signal Connectivity, Data Acquisition, HVAC Systems, Farming Implementation, Boating, Sealed Environments, Heavy Equipment, Transportation, Industrial, Off-Road and Harsh Environments
Potted or Unpotted
Flanged or Flangeless
180° Straight or 90° Right Angle Pin Orientation
Applications
Power & Signal Connectivity, Data Acquisition, HVAC Systems, Farming Implementation, Boating, Sealed Environments, Heavy Equipment, Transportation, Industrial, Off-Road and Harsh Environments
12 Position Right Angle Flange Mount PCB Receptacle, Gray, Tin Plated Contacts Included. Keyed A
