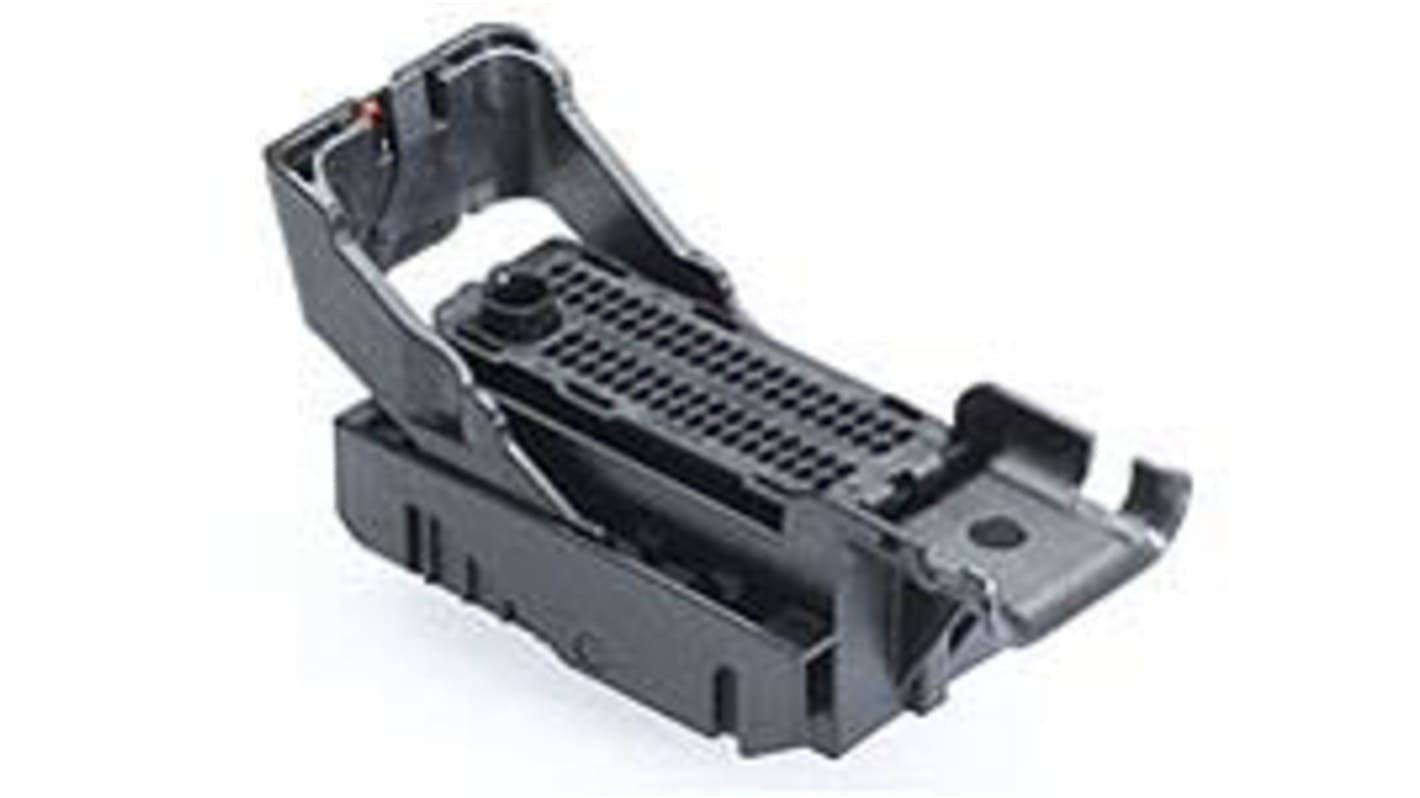

Molex, MX123 Automotive Connector Socket Black Cable Mount 66 Way, Crimp Termination 34822-0013
- RS Stock No.:
- 178-9517
- Mfr. Part No.:
- 34822-0013
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£16.59
(exc. VAT)
£19.91
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 59 left, ready to ship
- Plus 51 left, ready to ship from another location
- Plus 15 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £16.59 |
10 - 24 | £13.81 |
25 + | £12.89 |
*price indicative
- RS Stock No.:
- 178-9517
- Mfr. Part No.:
- 34822-0013
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 66 | |
Type | Receptacle Housing | |
Gender | Female | |
Number of Rows | 4 | |
Current Rating | 11A | |
Mounting Type | Cable Mount | |
Series | MX123 | |
Colour | Black | |
IP Rating | IP67, IPx9K | |
Termination Method | Crimp | |
Height | 47.92mm | |
Width | 40.4mm | |
Depth | 100.8mm | |
Housing Material | Nylon | |
Series Number | 34822 | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 66 | ||
Type Receptacle Housing | ||
Gender Female | ||
Number of Rows 4 | ||
Current Rating 11A | ||
Mounting Type Cable Mount | ||
Series MX123 | ||
Colour Black | ||
IP Rating IP67, IPx9K | ||
Termination Method Crimp | ||
Height 47.92mm | ||
Width 40.4mm | ||
Depth 100.8mm | ||
Housing Material Nylon | ||
Series Number 34822 | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Molex 34822 Series Automotive Connector, 66 Contacts, Receptacle Housing Type - 34822-0013
This automotive connector is designed to provide secure and efficient connectivity in a range of vehicles and equipment. Featuring a robust receptacle housing with 66 contacts and a cable mount design, this connector meets IP67 and IPx9K ratings, ensuring strong protection against environmental factors. Constructed from durable nylon, this connector performs reliably across a temperature range from -40°C to +125°C.
Features & Benefits
• Resistant to water and dust, ensuring longevity in harsh environments
• Designed with 66 contacts, accommodating high-current demands
• Crimp termination method simplifies wiring processes
• Lightweight nylon construction provides added durability
• Multiple rows enhance organisation for complex connections
• Reliable performance under extreme temperature variations
• Designed with 66 contacts, accommodating high-current demands
• Crimp termination method simplifies wiring processes
• Lightweight nylon construction provides added durability
• Multiple rows enhance organisation for complex connections
• Reliable performance under extreme temperature variations
Applications
• Utilised in automotive harness assemblies for secure connections
• Integrated into electrical systems for efficient power distribution
• Suitable for requiring robust, weatherproof connectivity
• Commonly employed in vehicles exposed to harsh environmental conditions
• Integrated into electrical systems for efficient power distribution
• Suitable for requiring robust, weatherproof connectivity
• Commonly employed in vehicles exposed to harsh environmental conditions
How does the design contribute to protection against environmental factors?
This connector features a reliable sealing mechanism, rated to IP67 and IPx9K, ensuring complete protection against dust and immersion in water, as well as resistance to high-pressure cleaning.
What type of wire can be used with this connector?
A range of wires can be terminated with this connector, including ISO wires from 0.35mm² to 0.75mm² and 18-22 AWG crimp terminal sizes, facilitating versatile applications.
How does this connector handle high-current applications?
It is engineered to support up to 11A current ratings, making it suitable for demanding automotive applications where reliability is critical.
