Molex, Mini50 Automotive Connector Plug 20 Way, SMT Termination
- RS Stock No.:
- 162-0992
- Mfr. Part No.:
- 34897-6200
- Brand:
- Molex
Available to back order for despatch 19/09/2024
Added
Price Each
£6.13
(exc. VAT)
£7.36
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £6.13 |
| 10 - 99 | £5.58 |
| 100 + | £5.02 |
- RS Stock No.:
- 162-0992
- Mfr. Part No.:
- 34897-6200
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

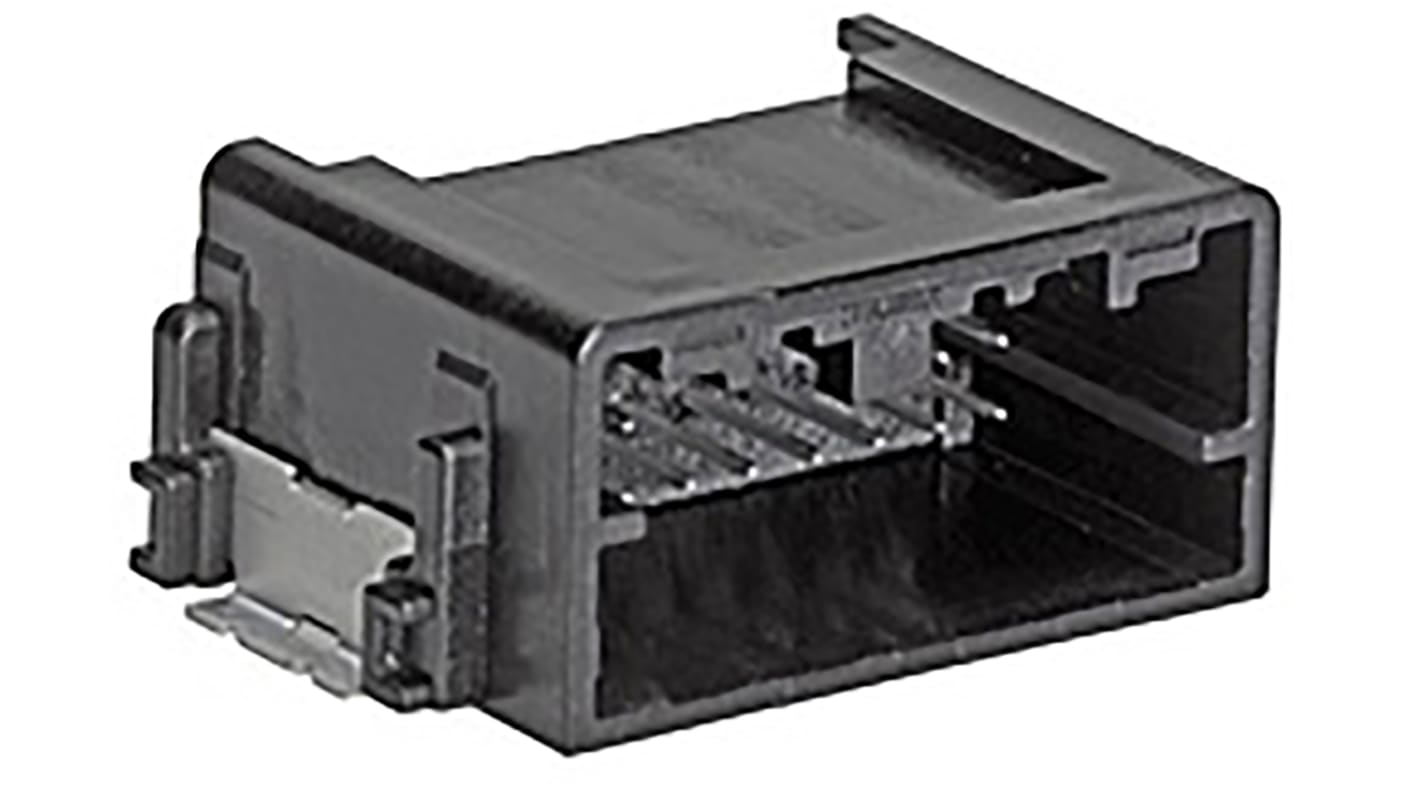

Mini50 Unsealed Header, Right Angle, SMT, Dual Row, 20 Circuits, Gold (Au) Plating, Polarization Option A, Black, Tape and Reel
50% smaller than USCAR 0.64mm unsealed interfaces
Independent secondary lock (ISL) terminal-retention feature
Orientation features molded into the header
Board alignment and retention features
High-temperature thermoplastic housings
CTX50 terminal wire grip design
Independent secondary lock (ISL) terminal-retention feature
Orientation features molded into the header
Board alignment and retention features
High-temperature thermoplastic housings
CTX50 terminal wire grip design
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 20 |
| Type | PCB Header |
| Gender | Male |
| Number of Rows | 2 |
| Current Rating | 5A |
| Mounting Type | Surface Mount |
| Series | Mini50 |
| Colour | Black |
| Termination Method | SMT |
| Width | 35.05mm |
| Depth | 18.8mm |
| Housing Material | Glass Filled SPS |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Contact Material | Brass |
| Series Number | 34897 |
