Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£0.964
(exc. VAT)
£1.157
(inc. VAT)
- RS Stock No.:
- 783-2817
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 2 | |
| Screened/Unscreened | Screened | |
| Insulation Material | PE | |
| Outer Diameter | 6.6mm | |
| Length | 100m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
| Sheath Colour | Blue | |
| Conductor Resistance | 55.5 Ω/km | |
| Conductor Material | Tinned Copper | |
| Voltage Rating | 60 V | |
| Size of Strands | 0.12 mm | |
| Conductor Strand Type | Stranded | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Capacitance Core To Core | 165pF/m | |
| Drain Wire | Yes | |
| Cable Shape | Multicore | |
| Number of Strands | 32 | |
| Core Strands | 32/0.12 mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 2 | ||
Screened/Unscreened Screened | ||
Insulation Material PE | ||
Outer Diameter 6.6mm | ||
Length 100m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Sheath Colour Blue | ||
Conductor Resistance 55.5 Ω/km | ||
Conductor Material Tinned Copper | ||
Voltage Rating 60 V | ||
Size of Strands 0.12 mm | ||
Conductor Strand Type Stranded | ||
Sheath Material Polyvinyl Chloride PVC | ||
Capacitance Core To Core 165pF/m | ||
Drain Wire Yes | ||
Cable Shape Multicore | ||
Number of Strands 32 | ||
Core Strands 32/0.12 mm | ||
- COO (Country of Origin):
- CN

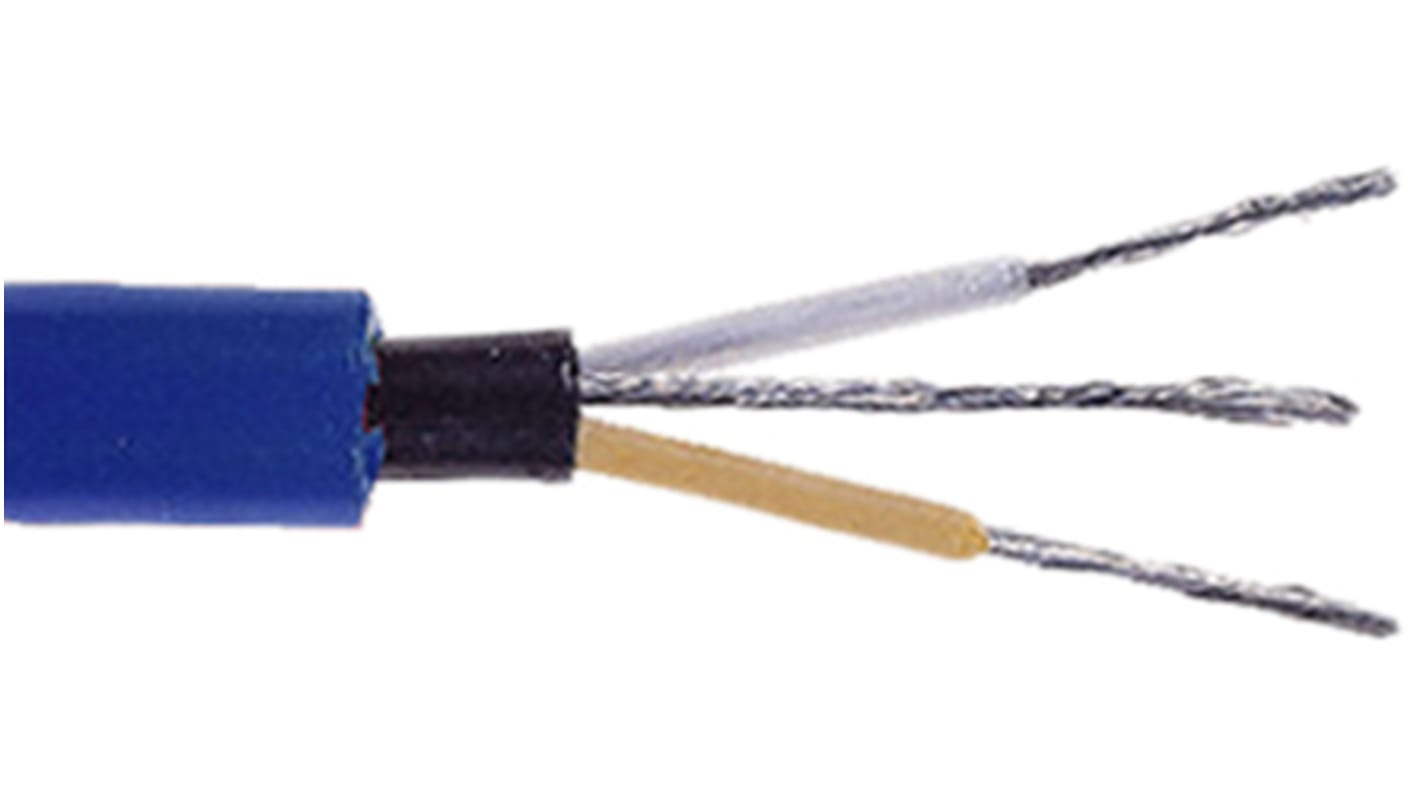

RS PRO Flexible Semi-Conductive Microphone Cable - Type 2
From the trusted RS PRO brand, this high-quality insulated cable is ideal for use with live or studio microphones. The XLR cable has the excellent transmission properties required for many professional audio applications. Balanced for a reliable sound, the XLR cable features semi-conductive PE insulation for excellent performance characteristics.
This microphone cable features a PVC sheath which offers an excellent standard of flexibility over a wide temperature range. This helps protect the cable from damage by twisting and bending. As such, the cable is suitable for use in most professional and heavy-duty applications.
Features and Benefits
• Two core shielded audio cable
• Tinned copper cores
• Semiconducting thermoplastic insulation
• Flexible PVC outer jacket
• Capacitance 165pF/m
• Reel Weight 5.6kg.
Applications
This multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers. This high-quality audio cable is suitable for;
• Live stages and theatres
• Professional studio setups
• Hobbyist and custom audio setups
Why RS PRO?
RS PRO provides high-quality cables, connectors, and adapters to meet any need. With vigorous in-house testing of all our products, RS PRO aims to be your vendor of choice when reliability and affordability are a must.
Whether you're in the studio, recording on location or simply relaxing at home, RS PRO has an audio connection solution to suit your needs.
This microphone cable features a PVC sheath which offers an excellent standard of flexibility over a wide temperature range. This helps protect the cable from damage by twisting and bending. As such, the cable is suitable for use in most professional and heavy-duty applications.
Features and Benefits
• Two core shielded audio cable
• Tinned copper cores
• Semiconducting thermoplastic insulation
• Flexible PVC outer jacket
• Capacitance 165pF/m
• Reel Weight 5.6kg.
Applications
This multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers. This high-quality audio cable is suitable for;
• Live stages and theatres
• Professional studio setups
• Hobbyist and custom audio setups
Why RS PRO?
RS PRO provides high-quality cables, connectors, and adapters to meet any need. With vigorous in-house testing of all our products, RS PRO aims to be your vendor of choice when reliability and affordability are a must.
Whether you're in the studio, recording on location or simply relaxing at home, RS PRO has an audio connection solution to suit your needs.
