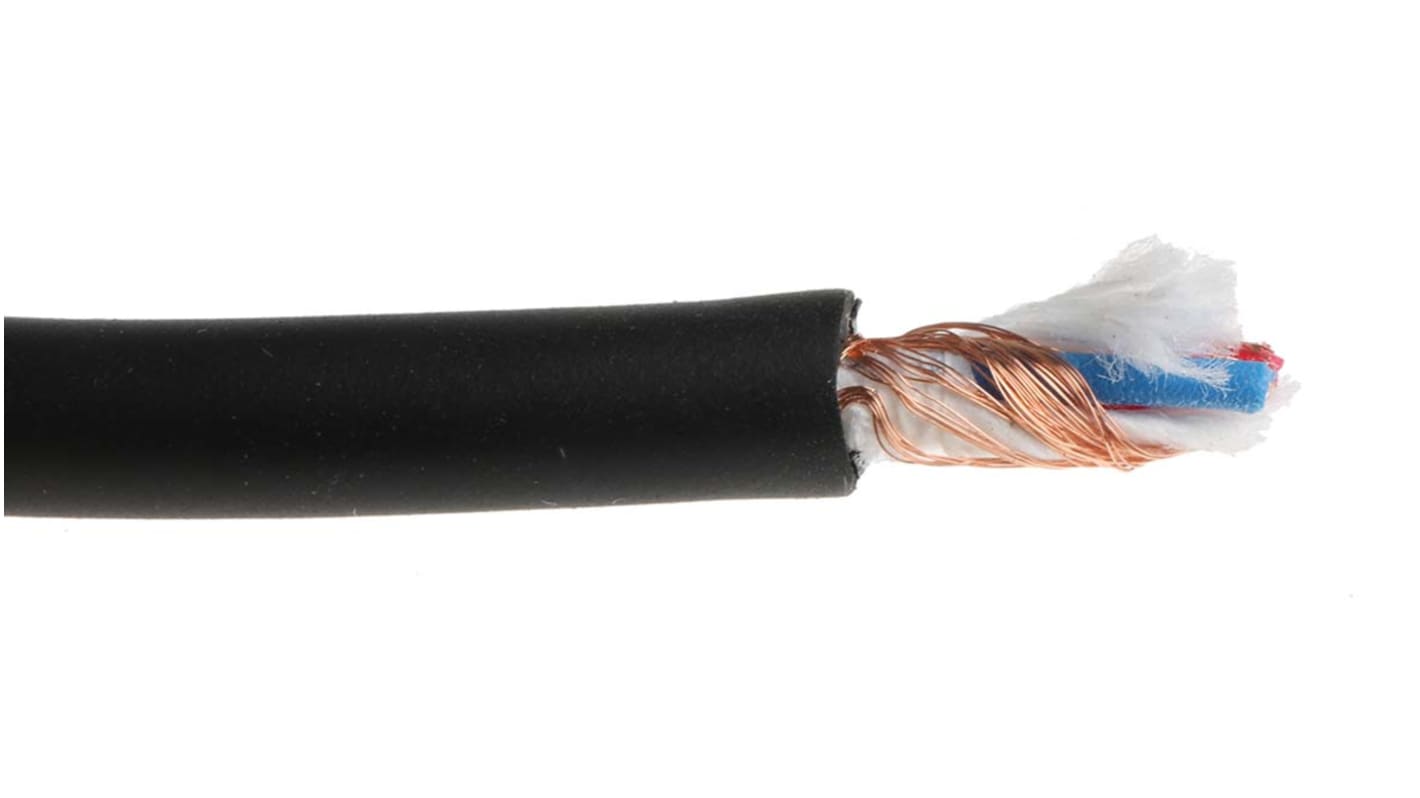

Van Damme Screened Microphone Cable, 0.22 mm² CSA, 6.35mm od, 100m, Black
- RS Stock No.:
- 365-8703
- Mfr. Part No.:
- 268-020-000
- Brand:
- Van Damme
14 In stock - FREE next working day delivery available
Added
Price 1 Reel of 100 Metre(s)
£168.16
(exc. VAT)
£201.79
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £168.16 | £1.682 |
| *price indicative | ||
- RS Stock No.:
- 365-8703
- Mfr. Part No.:
- 268-020-000
- Brand:
- Van Damme
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Tour Grade Classic XKE Spiral Screen Cable
Heavy-duty multipurpose twin core standard microphone cable designed for balanced audio signals
The tightly lapped oxygen free copper screen coupled with the natural cotton filler prevents capacitance changes and eliminates internally generated noise
Highly flexible noiseless cable with excellent handling qualities
Quick and easy to terminate
80/0.10mm spiral lap screen for excellent screening properties
Matt finish anti-kink highly flexible sheath
The tightly lapped oxygen free copper screen coupled with the natural cotton filler prevents capacitance changes and eliminates internally generated noise
Highly flexible noiseless cable with excellent handling qualities
Quick and easy to terminate
80/0.10mm spiral lap screen for excellent screening properties
Matt finish anti-kink highly flexible sheath
Specifications
Attribute | Value |
|---|---|
| Audio Cable Type | Microphone Cable |
| Cross Sectional Area | 0.22 mm² |
| Screened/Unscreened | Screened |
| Insulation Material | PE |
| Outer Diameter | 6.35mm |
| Length | 100m |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Sheath Colour | Black |
| American Wire Gauge | 24 AWG |
| Conductor Strand Type | Stranded |
| Core Strands | 7 x 0.1 mm, 21 x 0.1 mm |
| Balanced | Yes |
| Number of Strands | 28 |
| Screen Type | Close Lap |
| Capacitance Core To Screen | 165pF/m |
| Capacitance Core To Core | 56pF/m |
| Size of Strands | 0.1 mm |
| Voltage Rating | 250 V |
| Cable Shape | Multicore |
| Filler Material | Cotton |
| Conductor Resistance | 85 Ω/km |
| Conductor Material | Copper |
| Sheath Material | PVC/Neoprene |
