- RS Stock No.:
- 291-6581
- Mfr. Part No.:
- 10740900.25M
- Brand:
- Quadrant Connectors
2 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Reel of 25 Metre(s)
£135.28
(exc. VAT)
£162.34
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £135.28 | £5.411 |
| *price indicative | ||
- RS Stock No.:
- 291-6581
- Mfr. Part No.:
- 10740900.25M
- Brand:
- Quadrant Connectors
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

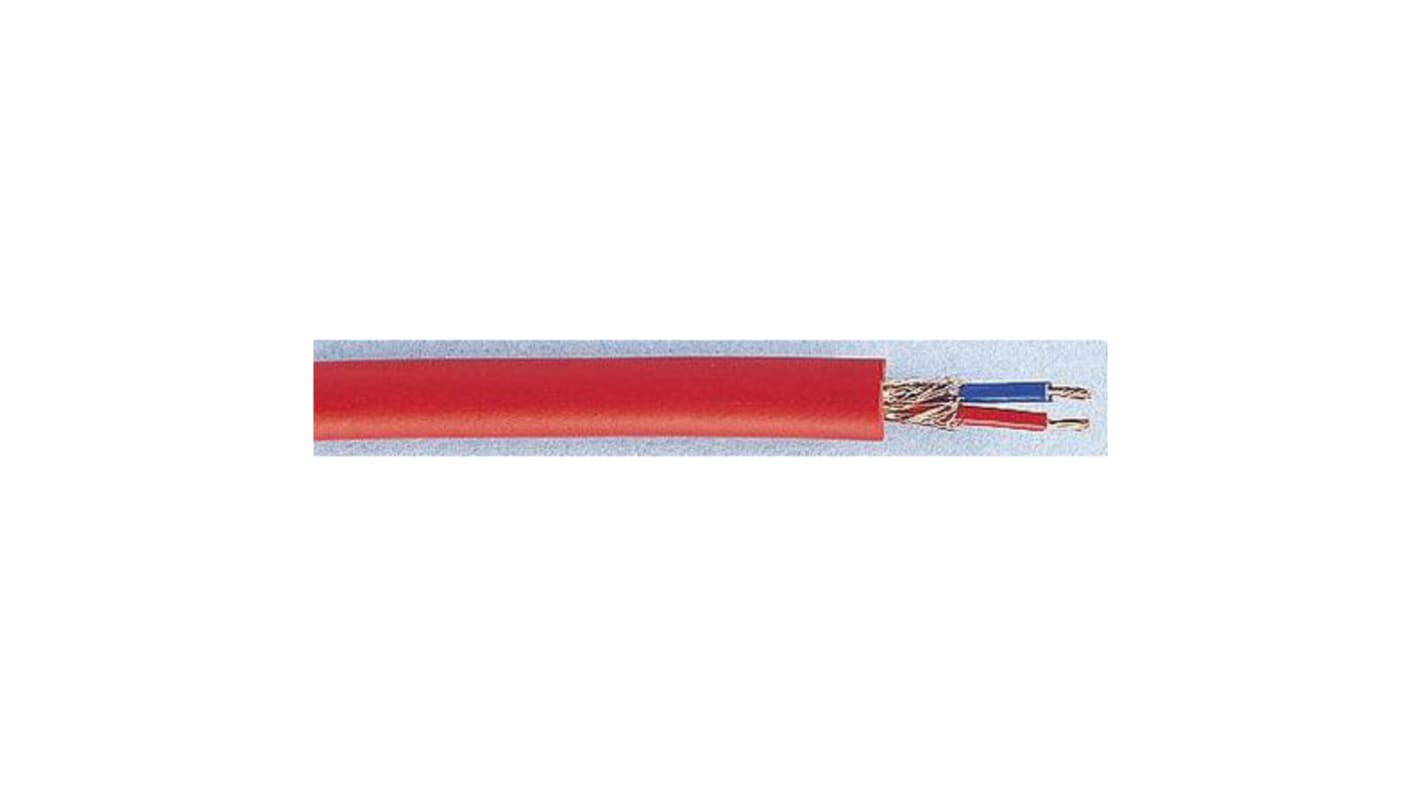

Microphone Cable, 2-Core, 0.22 mm² (28 x 0.1 mm), d = 6 mm
The standard microphone cable for the stage offers high flexibility thanks to the copper conductor with Ø 0.1 mm. The various cables are for differentiating and decoding the cable. The outer diameter of the soft PVC sheath, Ø 6.0 mm, is designed for XLR connectors in accordance with current industry standards. The cotton filler ensures a homogeneous, round cable jacket and noiseless operation.
Specifications
Attribute | Value |
|---|---|
| Audio Cable Type | Microphone Cable |
| Number of Cores | 2 |
| Cross Sectional Area | 0.22 mm² |
| Screened/Unscreened | Screened |
| Outer Diameter | 6mm |
| Length | 25m |
| Sheath Colour | Black |
| Size of Strands | 0.1 mm |
| Capacitance Core To Core | 120pF/m |
| Conductor Material | Copper |
| Balanced | Yes |
| Sheath Material | PVC |
| Number of Strands | 28 |
| Screen Type | Cu-Blank Spiral |
| Cable Shape | Multicore |
| Conductor Strand Type | Stranded |
| Capacitance Core To Screen | 200pF/m |
| Filler Material | Cotton |
| Core Strands | 28/0.1 mm |
