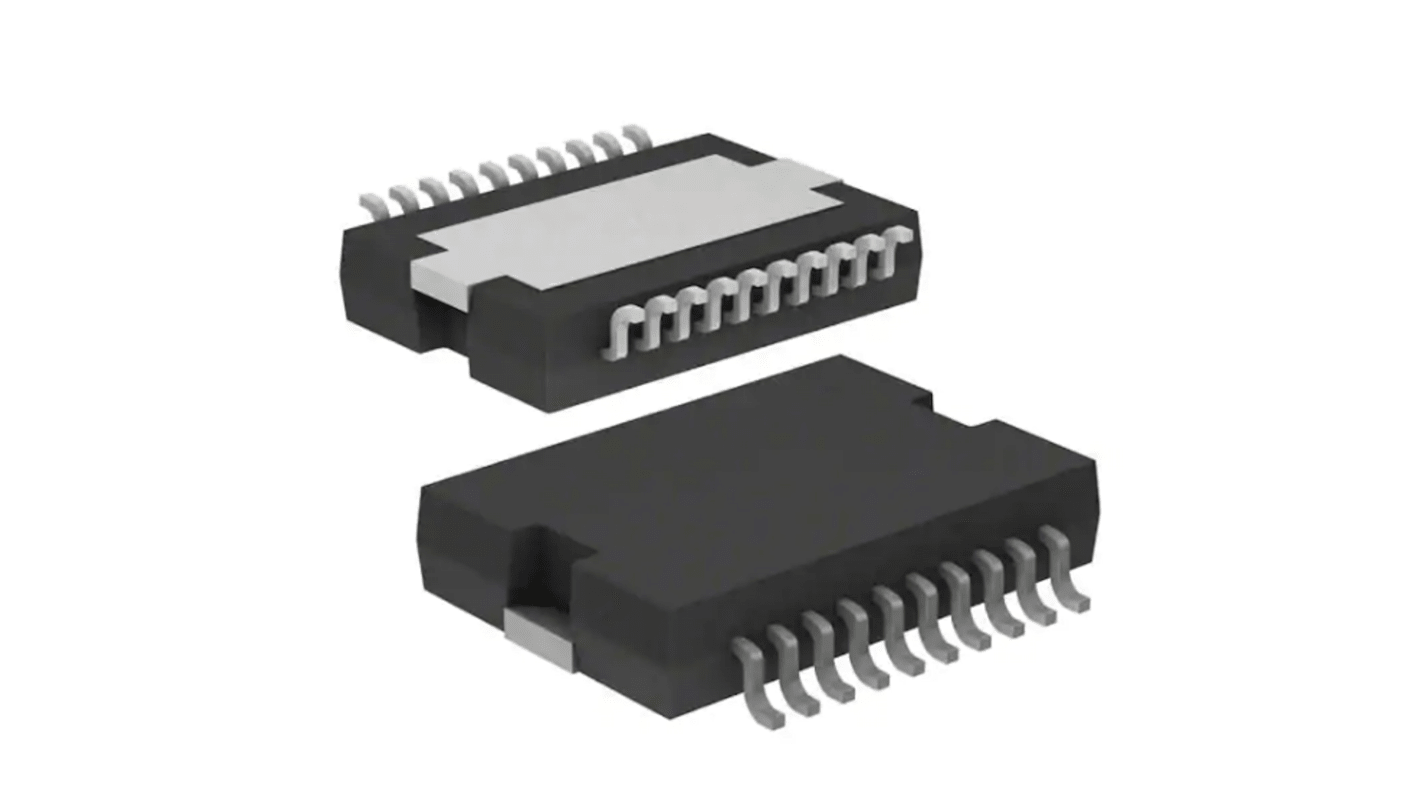

STMicroelectronics Bridge Amplifier, 20-Pin, 32W PowerSO-20
- RS Stock No.:
- 190-6839P
- Mfr. Part No.:
- E-TDA7391PDTR
- Brand:
- STMicroelectronics
Subtotal 5 units (supplied on a continuous strip)*
£13.40
(exc. VAT)
£16.10
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 995 unit(s), ready to ship
Units | Per unit |
|---|---|
| 5 + | £2.68 |
*price indicative
- RS Stock No.:
- 190-6839P
- Mfr. Part No.:
- E-TDA7391PDTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Audio Amplifier IC | |
| Amplifier Type | Bridge Amplifier | |
| Application | Car Radio | |
| Output Power | 32W | |
| Amplifier Class | Class A-B | |
| Mount Type | Surface | |
| Number of Channels | 1 | |
| Package Type | PowerSO-20 | |
| Pin Count | 20 | |
| Minimum Operating Temperature | -40°C | |
| Width | 11.1mm | |
| Series | TDA7391P | |
| Standards/Approvals | No | |
| Height | 3.3mm | |
| Length | 16mm | |
| Maximum Supply Voltage | 18V | |
| Minimum Supply Voltage | 18V | |
| Automotive Standard | No | |
| Maximum Operating Temperature | 150°C | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Audio Amplifier IC | ||
Amplifier Type Bridge Amplifier | ||
Application Car Radio | ||
Output Power 32W | ||
Amplifier Class Class A-B | ||
Mount Type Surface | ||
Number of Channels 1 | ||
Package Type PowerSO-20 | ||
Pin Count 20 | ||
Minimum Operating Temperature -40°C | ||
Width 11.1mm | ||
Series TDA7391P | ||
Standards/Approvals No | ||
Height 3.3mm | ||
Length 16mm | ||
Maximum Supply Voltage 18V | ||
Minimum Supply Voltage 18V | ||
Automotive Standard No | ||
Maximum Operating Temperature 150°C | ||
- COO (Country of Origin):
- MY
The STMicroelectronics TDA7391PD is a bridge class AB audio power amplifier specially intended for car radio high power applications. The high power capability together with the possibility to operate either in differential input mode or single ended input mode makes it suitable for boosters and high end car radio equipment. The exclusive fully complementary output stage and the internal fixed gain configuration drop the external component count. The on board clipping detector allows easy implementation of gain compression systems.
Programmable turn-on/off delay
No audible pop during mute and stand-by operations
Very inductive loads
Chip over temperature
Load dump
