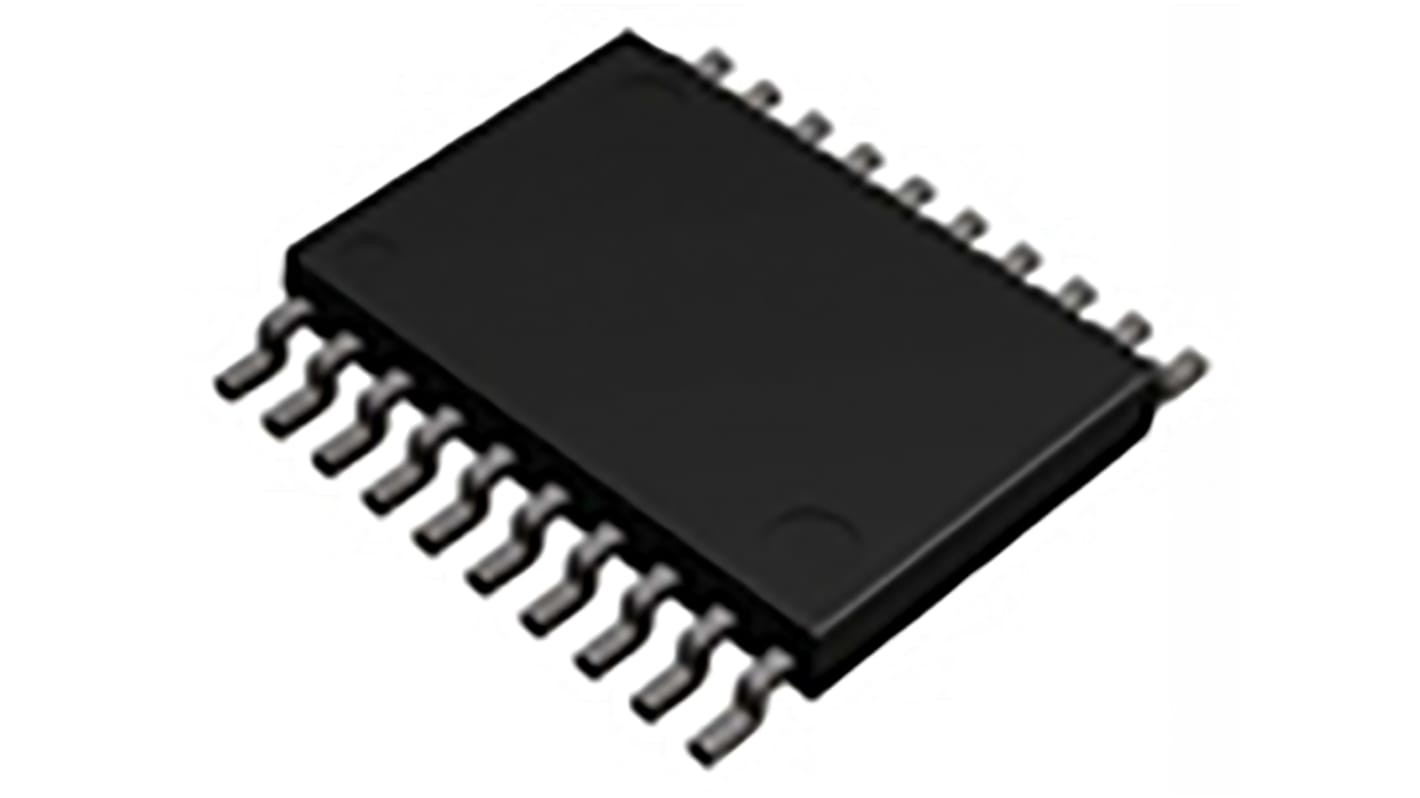

ROHM, 2-ChannelAudio1.9W, 20-Pin HTSSOP BD7836EFV-E2
- RS Stock No.:
- 184-8754
- Mfr. Part No.:
- BD7836EFV-E2
- Brand:
- ROHM
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 184-8754
- Mfr. Part No.:
- BD7836EFV-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Amplifier Type | Audio | |
| Output Type | 2 Channel Stereo | |
| Maximum Power | 1.9W | |
| Application | Speaker | |
| Mounting Type | Surface Mount | |
| Amplifier Class | Class A-B | |
| Typical Single Supply Voltage | 4.5 → 5.5 V | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 2 | |
| Package Type | HTSSOP | |
| Pin Count | 20 | |
| Input Signal Type | Single | |
| Output Signal Type | Single | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Dimensions | 6.5 x 4.4 x 0.85mm | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Amplifier Type Audio | ||
Output Type 2 Channel Stereo | ||
Maximum Power 1.9W | ||
Application Speaker | ||
Mounting Type Surface Mount | ||
Amplifier Class Class A-B | ||
Typical Single Supply Voltage 4.5 → 5.5 V | ||
Power Supply Type Single | ||
Number of Channels per Chip 2 | ||
Package Type HTSSOP | ||
Pin Count 20 | ||
Input Signal Type Single | ||
Output Signal Type Single | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Dimensions 6.5 x 4.4 x 0.85mm | ||
BD7836EFV is a low voltage drive class-AB stereo speaker amplifier, developed for note-book PC, desktop PC, portable devices and others. Class-AB amplifier has no EMI noise. Adopting power package realize high output power. Low shutdown mode electricity reduce consumption of battery. Shutdown current is 0μA typically. BD7836EFV can use for some applications that change mode between "shutdown state" and "active state".
High power 1.9W typ. (VDD=5V, RL=4Ω, THD+N=1%, stereo input)
High power 1.2W typ. (VDD=5V, RL=8Ω, THD+N=1%, stereo input)
Gain selectable by the external control (6, 10, 15.6, 21.6dB)
Pop noise suppression circuitry
Shutdown function (Mute function) [Isd=0μA]
Protection circuitry (Thermal shutdown. Under voltage lockout)
Power Package with thermal pad HTSSOP-B20
High power 1.2W typ. (VDD=5V, RL=8Ω, THD+N=1%, stereo input)
Gain selectable by the external control (6, 10, 15.6, 21.6dB)
Pop noise suppression circuitry
Shutdown function (Mute function) [Isd=0μA]
Protection circuitry (Thermal shutdown. Under voltage lockout)
Power Package with thermal pad HTSSOP-B20
