RS PRO SDG1062X Arbitrary Waveform Generator 60MHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

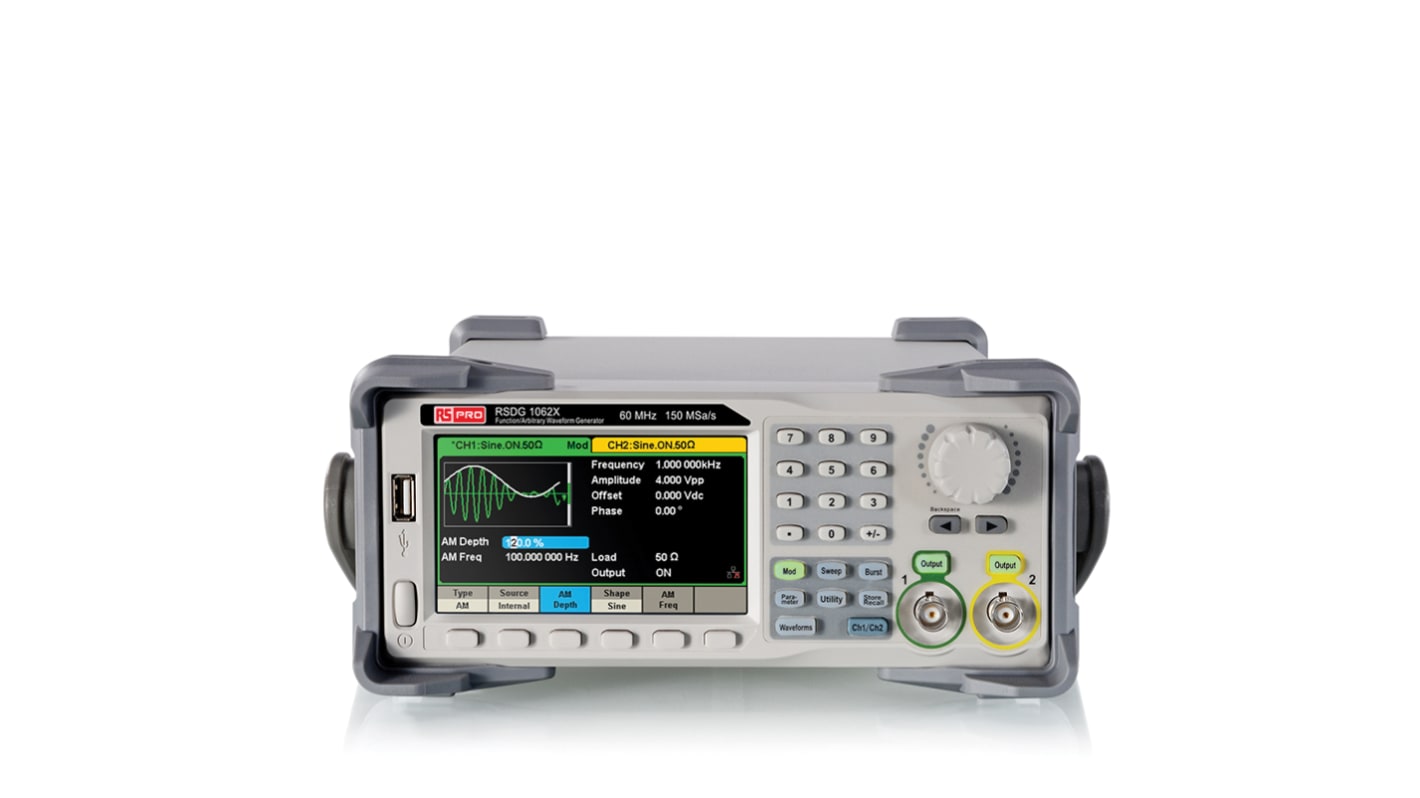

RS PRO RSDG1062X Function/Arbitrary Waveform Generator 60 MHz

The RS PRO RSDG1062X function/arbitrary waveform generator offers a range of excellent features including a maximum bandwidth of up to 60 MHz, 150 MSa/s sampling rate and 14-bit vertical resolution. The proprietary EasyPulse & TrueArb technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse and arbitrary waveforms, and the special square generator is capable of generating square waveforms up to 60 MHz in frequency with low jitter. With these advantages, the RSDG1062X can provide users with a variety of high fidelity / low jitter signals while meeting the growing requirements of a wide range of complex and varied applications. The RS PRO RSDG1062X also features a clear and precise 4.3" display with USB host, USB device and LAN interface, offering an excellent user-friendly experience.

Features and benefits

• Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
• 150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
• Innovative EasyPulse technology, capable of generating lower jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
• Innovative TrueArb technology, based on a point-by-point architecture, supports any 2 pts ∼ 16 kpts Arb waveform with a sampling rate in range of 1 μSa/s ∼ 30 MSa/s
• Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
• Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
• Sweep and Burst functions
• Harmonics Generator function
• Waveform Combining function
• High precision Frequency Counter
• Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
• 4.3” TFT-LCD display

Applications

In many professions, the need to create an electrical waveform measurement is essential, this is where an arbitrary waveform generator comes into play. Arbitrary waveform generators allow the user to generate a custom waveform of any size and can offer a variety of analog and digital features, with enhanced specifications such as bandwidth, sampling rates, pulse, burst mode and more.
Waveform generators are commonly used in areas such as:

• Research
• Development
• Medical
• Education
• Electronic repairs
• Electronic hobbyists

FAQs

Is this calibrated?

This particular model is available with the following calibration:
Stock no. 1882697 - RSCAL (RS Calibration)
Stock no. 1882699
Stock no. 1882700

What is supplied with the unit?

Quick Start x 1
Power Cord x 1
Calibration Certificate x1
USB Cable x 1

Specifications
Attribute Value
Maximum Frequency 60MHz
Maximum Frequency Triangle Ramps 500kHz
Minimum Frequency Triangle Ramps 1µHz
Maximum Sampling Frequency 150Msps
Resolution 1 μHz
Minimum Pulse Width 32.6ns
Arbitrary Waveforms Yes
Rise - Fall Time 4.2 (Square) ns, 22.4 (Pulse) s
Maximum Output Amplitude 20V Pk-Pk
Interface Type LAN, USB Device, USB Host
Dimensions 260.3 x 295.7 x 107.2mm
Maximum Operating Temperature +40°C
Length 260.3mm
Model Number p SDG1062X
Minimum Operating Temperature 0°C
Weight 3.4kg
Sweep Linear, Logarithmic
Width 295.7mm
Connector Type USB
Height 107.2mm
Available to back order for despatch 18/12/2019
Price Each
£ 743.67
(exc. VAT)
£ 892.40
(inc. VAT)
Units
Per unit
1 +
£743.67
Not available for guaranteed pre 9am/10am delivery
