RS PRO Arbitrary Waveform Generator 30MHz RS Calibration

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

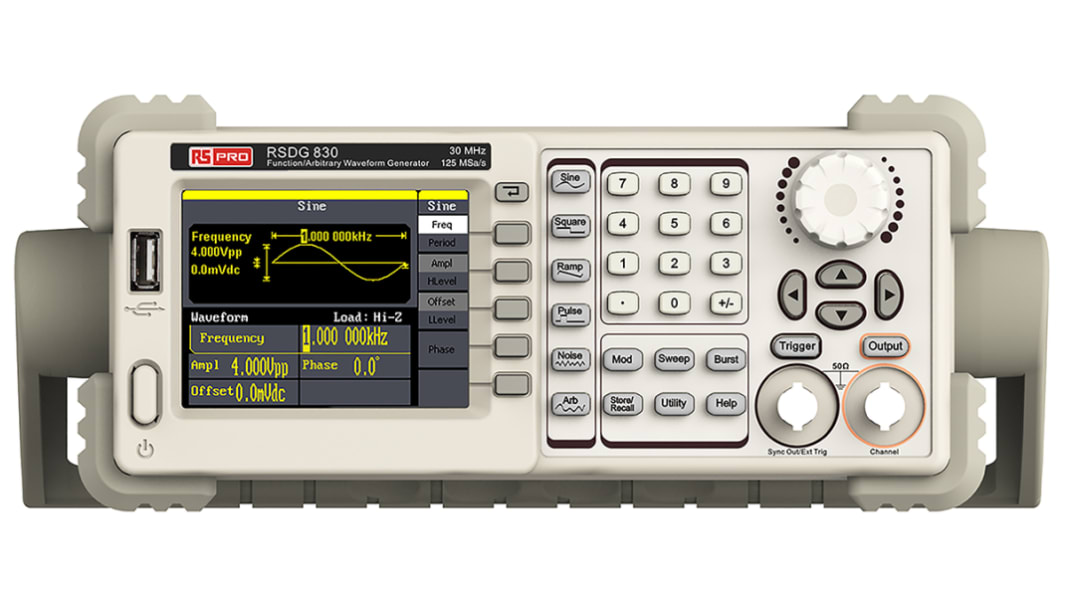

RS Pro RSDG800 Series Function/Arbitrary Waveform Generators

RS Pro RSDG800 Series function/arbitrary waveform generators output Sine, Square, Ramp, Pulse, Noise and Arbitrary waveform functions. The RSDG800 models are powered with EasyPulse technology which produces low jitter, fast rising/falling edges unaffected by frequency, even at low duty cycle settings. The advantage is that the operator has a wide range of pulse widths and transition times. This results in a more versatile generator than similar DDS designs.

Features and Benefits

DDS technology, single-channel output
125 MSa/s sample rate, 14 bit vertical resolution
5 types of standard output waveform, built-in 46 arbitrary waveforms
Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
Input/output - waveform output, synchronous signal output, external trigger input
Standard interfaces USB Device, USB Host
Supplied with powerful arbitrary editing software
Support remote control
Dimensions 229 x 105 x 281 mm
Weight 3.4 kg

Areas of Application

Analog sensor
Simulation environment signals
Circuit function test
IC test
Research & Development
Training

Supplied with

Quick start guide, CD(including EasyWave computer software system), power cord, USB cable

Specifications
Attribute Value
Maximum Frequency 30MHz
Minimum Frequency 0 MHz
Maximum Frequency Triangle Ramps 300kHz
Minimum Frequency Triangle Ramps 1µHz
Resolution 1 μHz
Calibrated RSCAL
Minimum Pulse Width 50ns
Arbitrary Waveforms Yes
Rise - Fall Time 1.6ks
Length 229mm
Maximum Operating Temperature +40°C
Minimum Operating Temperature 0°C
Maximum Output Amplitude 10V Pk-Pk
Interface Type USB Device, USB Host
Dimensions 229 x 281 x 105mm
Weight 2.6kg
Sweep Linear, Logarithmic
Data Entry Keyboard
Connector Type BNC
Height 105mm
Inputs External Trigger
Display Type TFT LCD
Maximum Storage 10
Width 281mm
33 In stock for delivery within 2 working days
Price Each
£ 381.00
(exc. VAT)
£ 457.20
(inc. VAT)
Units
Per unit
1 +
£381.00
