Paulstra Hutchinson PAULSTRA Round M12 Anti-Vibration Mount, Male Buffer Foot with 250 daN Compression Load
- RS Stock No.:
- 434-2156
- Mfr. Part No.:
- 53924355
- Brand:
- Paulstra Hutchinson
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 434-2156
- Mfr. Part No.:
- 53924355
- Brand:
- Paulstra Hutchinson
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Paulstra Hutchinson | |
| Anti Vibration Mount Type | Male Buffer Foot | |
| Product Type | Anti-Vibration Mount | |
| Thread Size | M12 | |
| Trade Name | PAULSTRA | |
| Foot Height | 34mm | |
| Overall Height | 65mm | |
| Static Load Rating | 200daN | |
| Material | Rubber | |
| Standards/Approvals | No | |
| Shore Hardness | 45/40/60/50 Shore A | |
| Foot Shape | Round | |
| Compression Load | 250daN | |
| Compression Deflection | 5mm | |
| Select all | ||
|---|---|---|
Brand Paulstra Hutchinson | ||
Anti Vibration Mount Type Male Buffer Foot | ||
Product Type Anti-Vibration Mount | ||
Thread Size M12 | ||
Trade Name PAULSTRA | ||
Foot Height 34mm | ||
Overall Height 65mm | ||
Static Load Rating 200daN | ||
Material Rubber | ||
Standards/Approvals No | ||
Shore Hardness 45/40/60/50 Shore A | ||
Foot Shape Round | ||
Compression Load 250daN | ||
Compression Deflection 5mm | ||
- COO (Country of Origin):
- FR

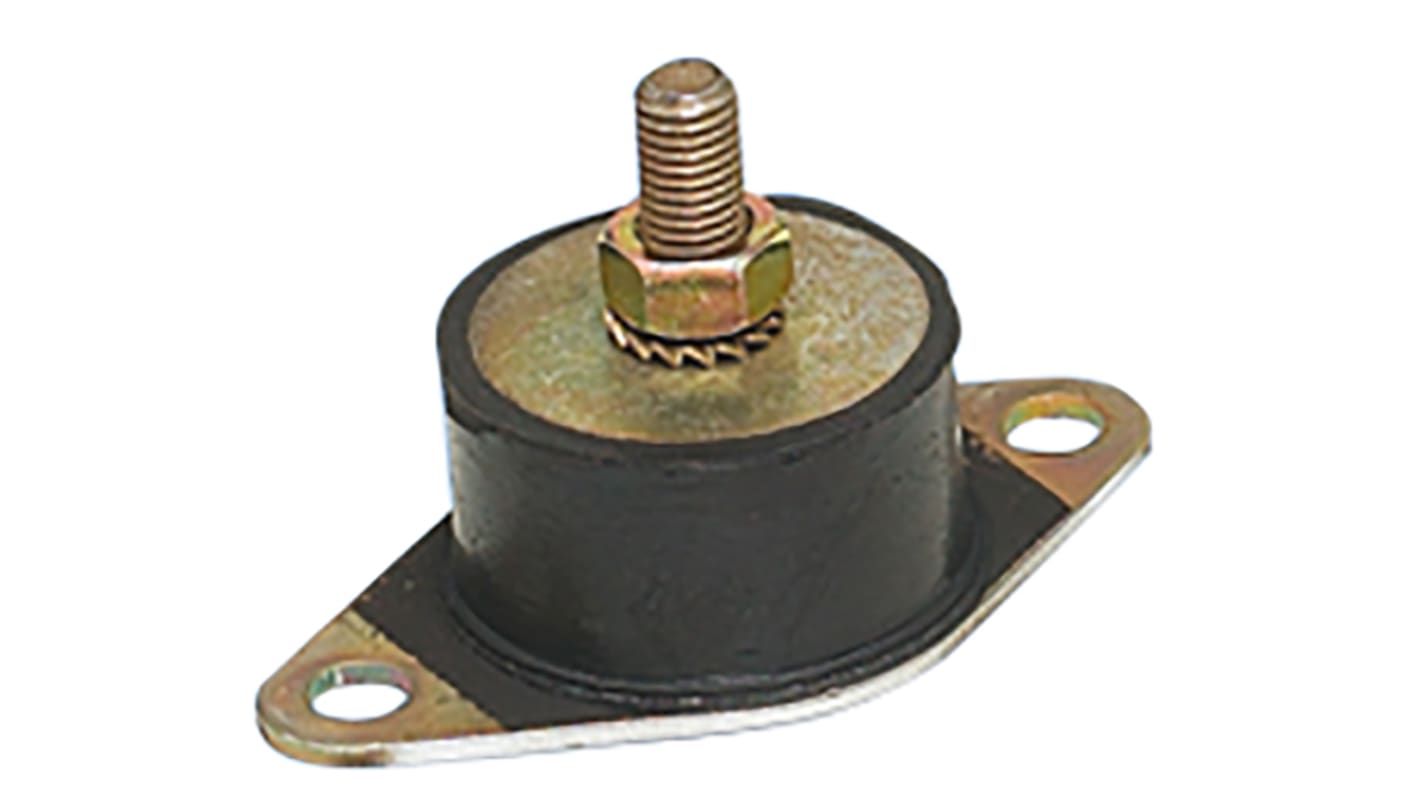

Multi-Purpose Mount
Flexible mount made of natural rubber bonded to metal
Easily fixed via single M10 or M12 stud and base with 2 fixing holes
Suitable for static and mobile applications - compressors, pumps, fans, air conditioning, etc
Load range from 50kg to 800kg in static compression
