RS PRO Cylindrical M8 Anti Vibration Mount, Female to Female Bobbin with 48.64kg Compression Load

RS Stock No.:: 185-4493
Brand:: RS PRO

RS PRO Cylindrical M8 Anti Vibration Mount, Female to Female Bobbin with 48.64kg Compression Load

21 In stock - FREE next working day delivery available

Added

Price Each

£16.22

(exc. VAT)

£19.46

(inc. VAT)

Units	Per unit
1 +	£16.22

RS Stock No.:: 185-4493
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: IN

Product Details

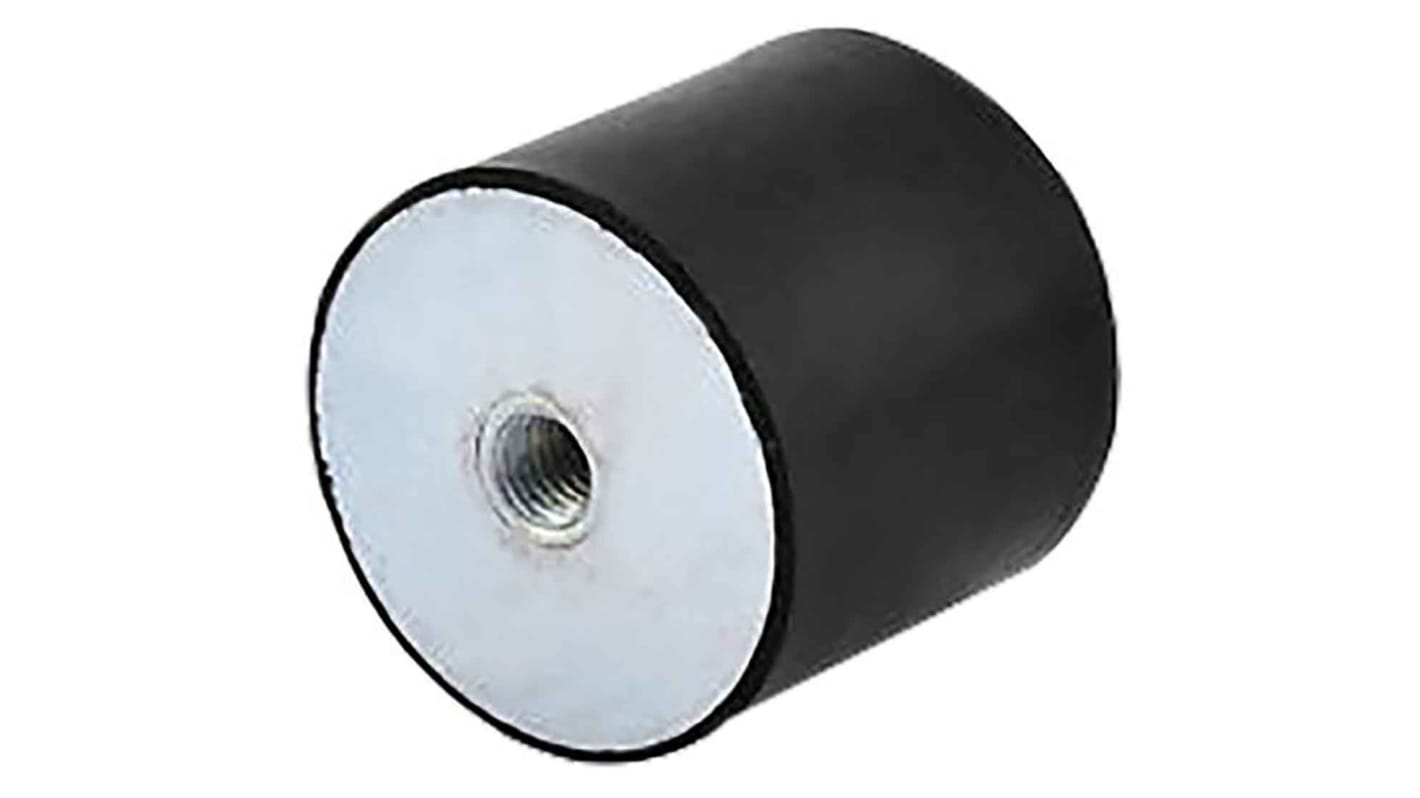

RS PRO Cylindrical Bobbin Mount

The RS PRO female/female cylindrical bobbin mount has a thread size of M8 and dimensions of 30mm x 30mm (diameter x height). This stainless steel (316 grade) bobbin mount has a shore hardness of 55ShoreA and can be used in either compression and/or shear.

Features and Benefits

• Simple and cost-effective vibration isolators
• Compression load: 48.64kg
• Maximum shear load: 18.30kg

Applications

• Static generator engines
• Compressors
• Motors

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Specifications

Attribute	Value
Anti Vibration Mount Type	Female to Female Bobbin
Thread Size	M8
Diameter	30mm
Overall Height	30mm
Material	Stainless Steel
Compression Load	48.64kg
Metalwork	Stainless Steel
Shore Hardness	55 Shore A
Foot Shape	Cylindrical
