Bulk discount available
Subtotal (1 bag of 2 units)*
£26.77
(exc. VAT)
£32.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 9 unit(s) shipping from 05 January 2026
- Plus 58 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £26.77 | £13.385 |
| 5 - 9 | £25.40 | £12.70 |
| 10 + | £24.90 | £12.45 |
*price indicative
- RS Stock No.:
- 171-2642
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thread Size | M6 | |
| Diameter | 64mm | |
| Foot Height | 20mm | |
| Overall Height | 20mm | |
| Static Load Capacity | 9kg | |
| Material | Natural Rubber | |
| Mounting Type | Screw-in | |
| Metalwork | Stainless Steel | |
| Foot Shape | Square | |
| Shore Hardness | 60 Shore A | |
| Compression Load | 9kg | |
| Compression Deflection | 3mm | |
| Series | SCM | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Thread Size M6 | ||
Diameter 64mm | ||
Foot Height 20mm | ||
Overall Height 20mm | ||
Static Load Capacity 9kg | ||
Material Natural Rubber | ||
Mounting Type Screw-in | ||
Metalwork Stainless Steel | ||
Foot Shape Square | ||
Shore Hardness 60 Shore A | ||
Compression Load 9kg | ||
Compression Deflection 3mm | ||
Series SCM | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- IN

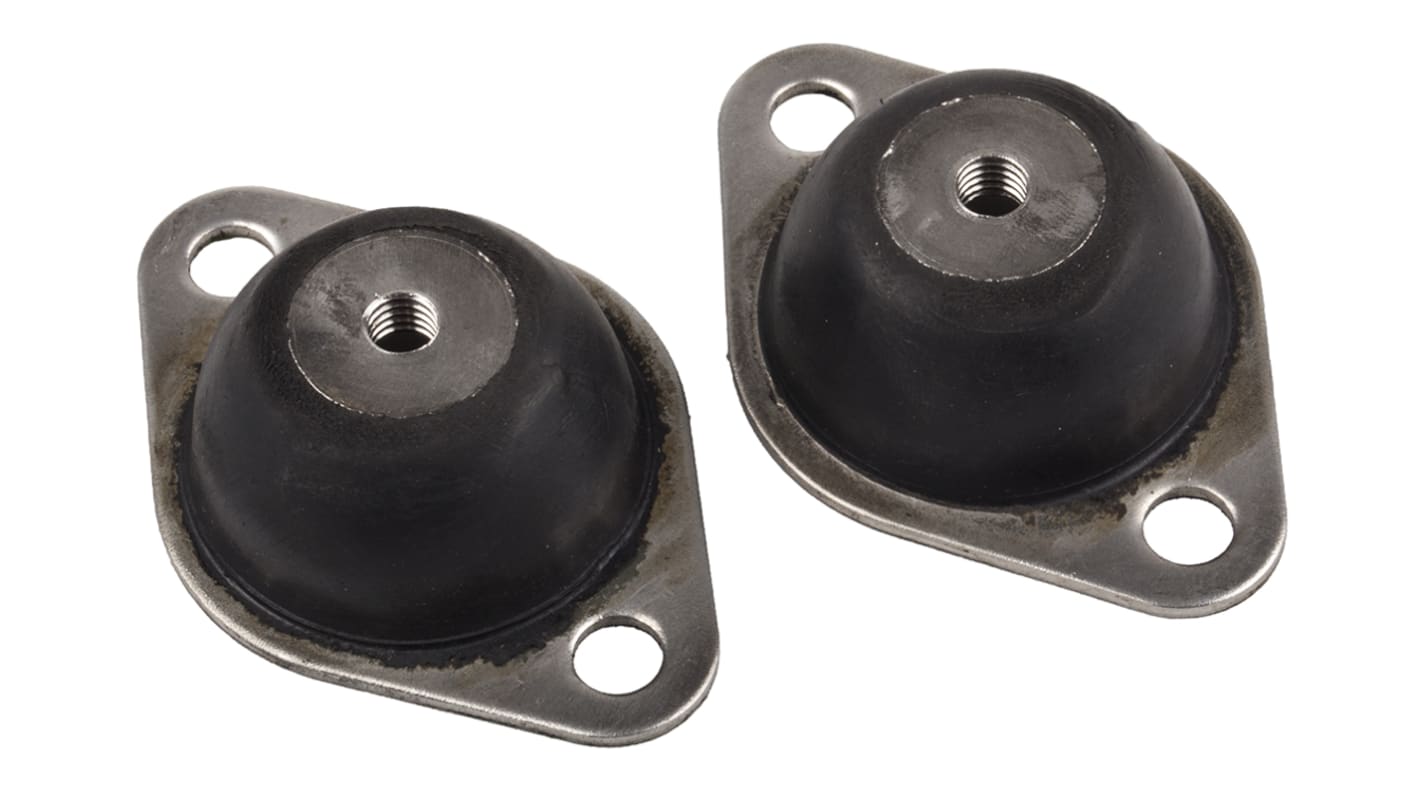

RS PRO Anti-Vibration Mount
The RS PRO M6 metal anti-vibration mount can bear 3.5kg at 45 shore A and 9kg at 60 shore A compression load. Its diameter is 64mm and made from natural rubber. It uses stainless steel for metal work and has a screw-in mounting type.
Features and Benefits
• Achieves high isolation values (active and passive) of low frequency vibration
• Attenuates shock loads due to its deflection capacity
• Available in stainless steel metal for food and mining industry applications
• Attenuates shock loads due to its deflection capacity
• Available in stainless steel metal for food and mining industry applications
Applications
• Bulk bin load
• Computers
• Discharge units
• Fans
• Pumps
• Security cameras
• Stationary generator sets
• Vibrating screens
• Computers
• Discharge units
• Fans
• Pumps
• Security cameras
• Stationary generator sets
• Vibrating screens
