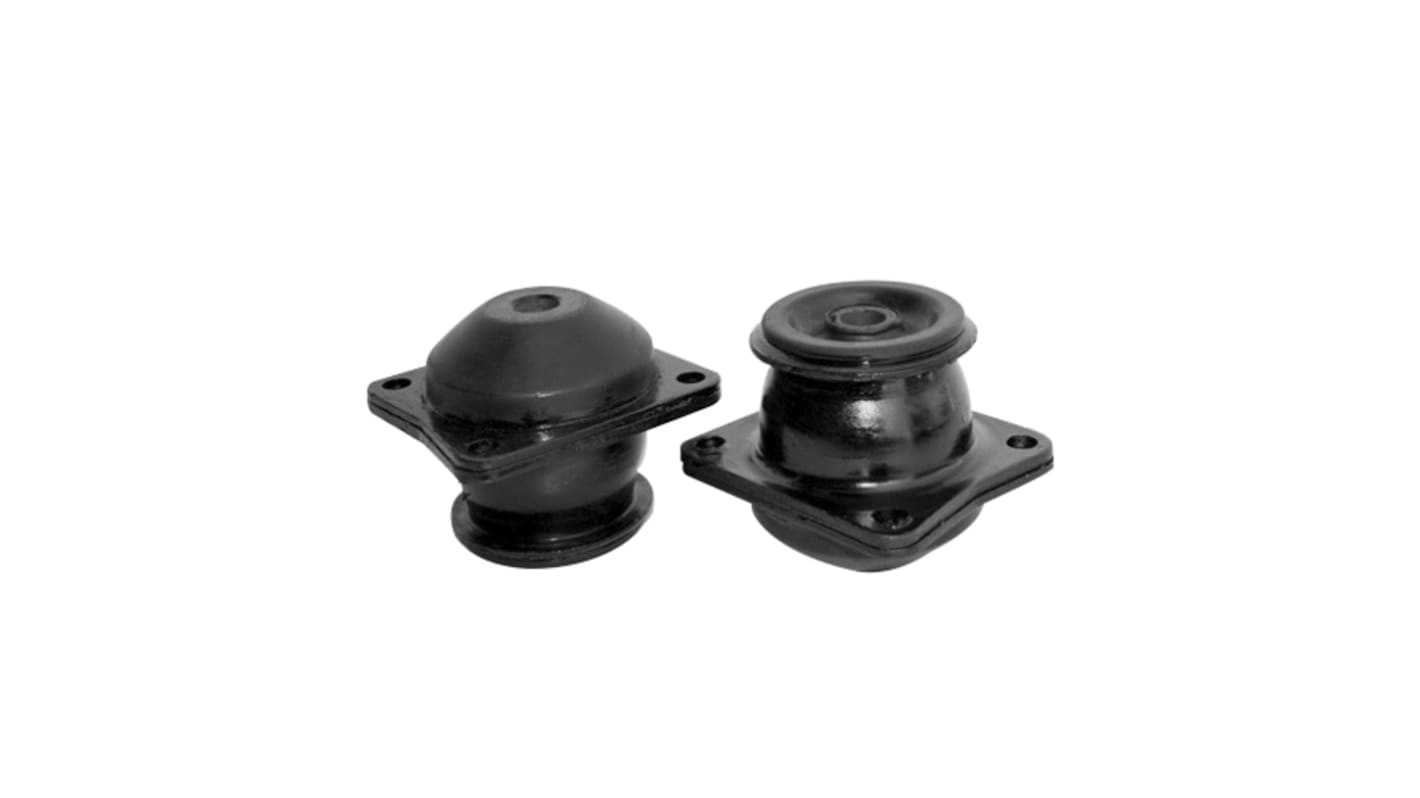

RS PRO Square M16 Anti Vibration Mount with 290kg Compression Load

View all Anti Vibration Mounts

Subtotal (1 unit)*

£45.63

(exc. VAT)

£54.76

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£45.63

*price indicative

RS Stock No.:
171-2666
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thread Size

M16

Diameter

75mm

Foot Height

72.5mm

Overall Height

74mm

Static Load Capacity

290kg

Material

Natural Rubber

Shore Hardness

45 Shore A

Compression Load

290kg

Metalwork

Zinc Plated Steel

Foot Shape

Square

Compression Deflection

6.4mm

Maximum Operating Temperature

+100°C

Series

KMC

COO (Country of Origin):
IN
The KMC mounts are designed for use on heavy machinery and plant equipment so they are very robust.

Compact fail-safe design
Mounts with cut-out in the rubber section are available where a different vertical/horizontal stiffness ratio is required
Applications:
Lorry or tractor cabs
Engine & transmission
Mobile generators
Suspension for:
Heavy vehicle equipment
Fuel tank suspension
Under-slung compressors
