RS PRO M5 Anti Vibration Mount, Male to Female Bobbin with 11.55kg Compression Load
- RS Stock No.:
- 126-4298
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 4 units)*
£17.17
(exc. VAT)
£20.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £17.17 | £4.293 |
| 5 - 9 | £16.26 | £4.065 |
| 10 + | £15.78 | £3.945 |
*price indicative
- RS Stock No.:
- 126-4298
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Anti Vibration Mount Type | Male to Female Bobbin | |
| Thread Size | M5 | |
| Diameter | 20mm | |
| Overall Height | 25mm | |
| Material | Natural Rubber | |
| Metalwork | Zinc Plated Steel | |
| Compression Load | 11.55kg | |
| Shore Hardness | 45 Shore A | |
| Compression Deflection | 2.5mm | |
| Series | AV Type B | |
| Shearing Load | 4.2kg | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Anti Vibration Mount Type Male to Female Bobbin | ||
Thread Size M5 | ||
Diameter 20mm | ||
Overall Height 25mm | ||
Material Natural Rubber | ||
Metalwork Zinc Plated Steel | ||
Compression Load 11.55kg | ||
Shore Hardness 45 Shore A | ||
Compression Deflection 2.5mm | ||
Series AV Type B | ||
Shearing Load 4.2kg | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- IN

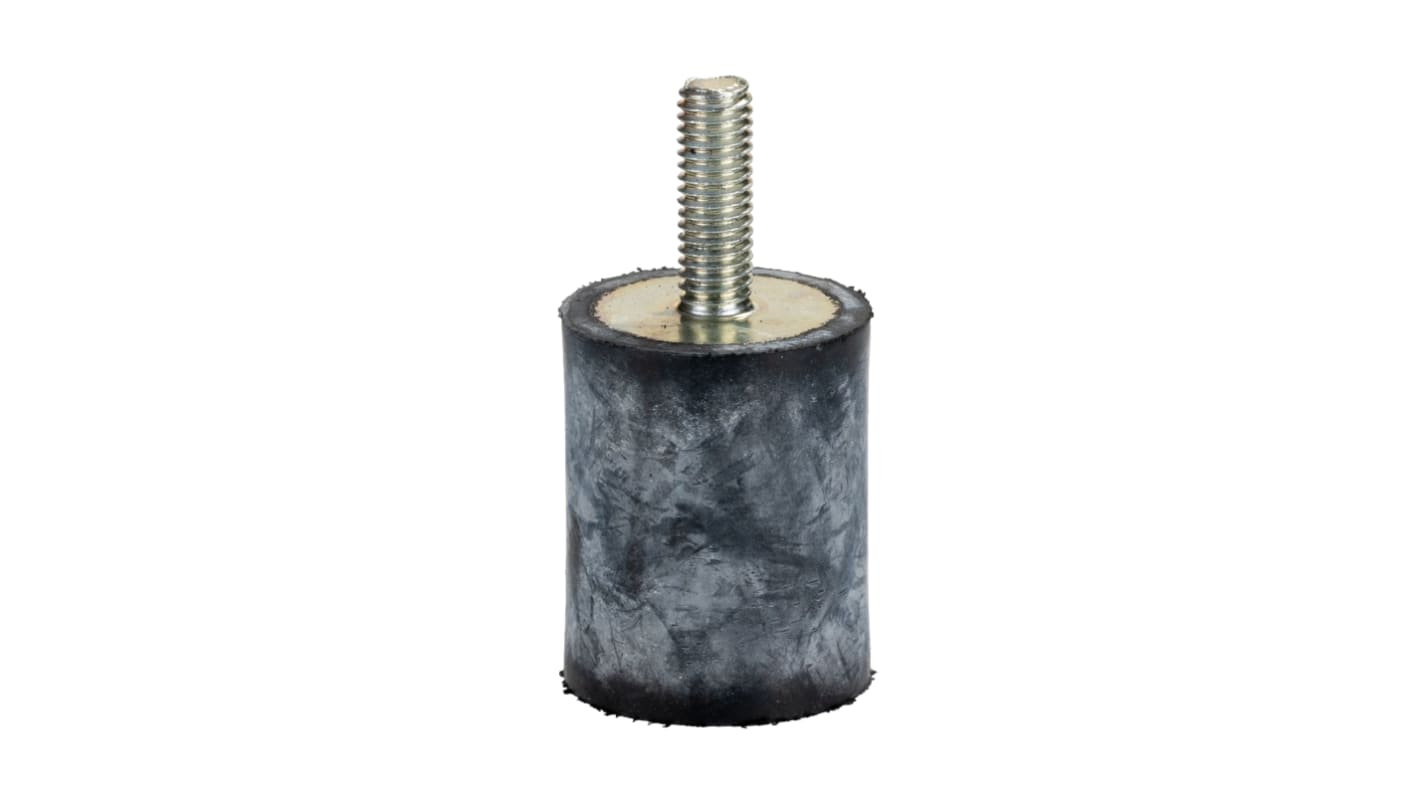

RS PRO Cylindrical Male - Female Anti-Vibration Mounts
RS PRO proudly presents a versatile and robust range of anti-vibration mounts, designed to take your projects to the next level. Engineered to dramatically reduce vibration and shield your equipment from wear and tear, these mounts are built to perform. They deliver exceptional vibration absorption for reliable, long-lasting protection and are featured in a durable cylindrical design, crafted from premium natural rubber, and equipped with both a male and female thread.
Features and Benefits
- Anti-vibration bobbin mount
- Male to female
- Various thread sizes available
- Natural rubber bobbin
Applications
- Large static generator engines
- Compressors
- Motors
- Electronic control panels
- Engine Mounts
RS Pro Anti-Vibration Mounts
