RS PRO M5 Anti Vibration Mount, Male to Female Bobbin with 16kg Compression Load

RS Stock No.:: 126-4292
Brand:: RS PRO

RS PRO M5 Anti Vibration Mount, Male to Female Bobbin with 16kg Compression Load

74 In stock - FREE next working day delivery available

4 available from Europe for delivery within 1 working day(s).

Added

Price 1 Bag of 4

£9.15

(exc. VAT)

£10.98

(inc. VAT)

Bag(s)	Per Bag	Per unit*
1 - 4	£9.15	£2.288
5 - 9	£8.68	£2.17
10 +	£8.40	£2.10
*price indicative

RS Stock No.:: 126-4292
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: IN

Product Details

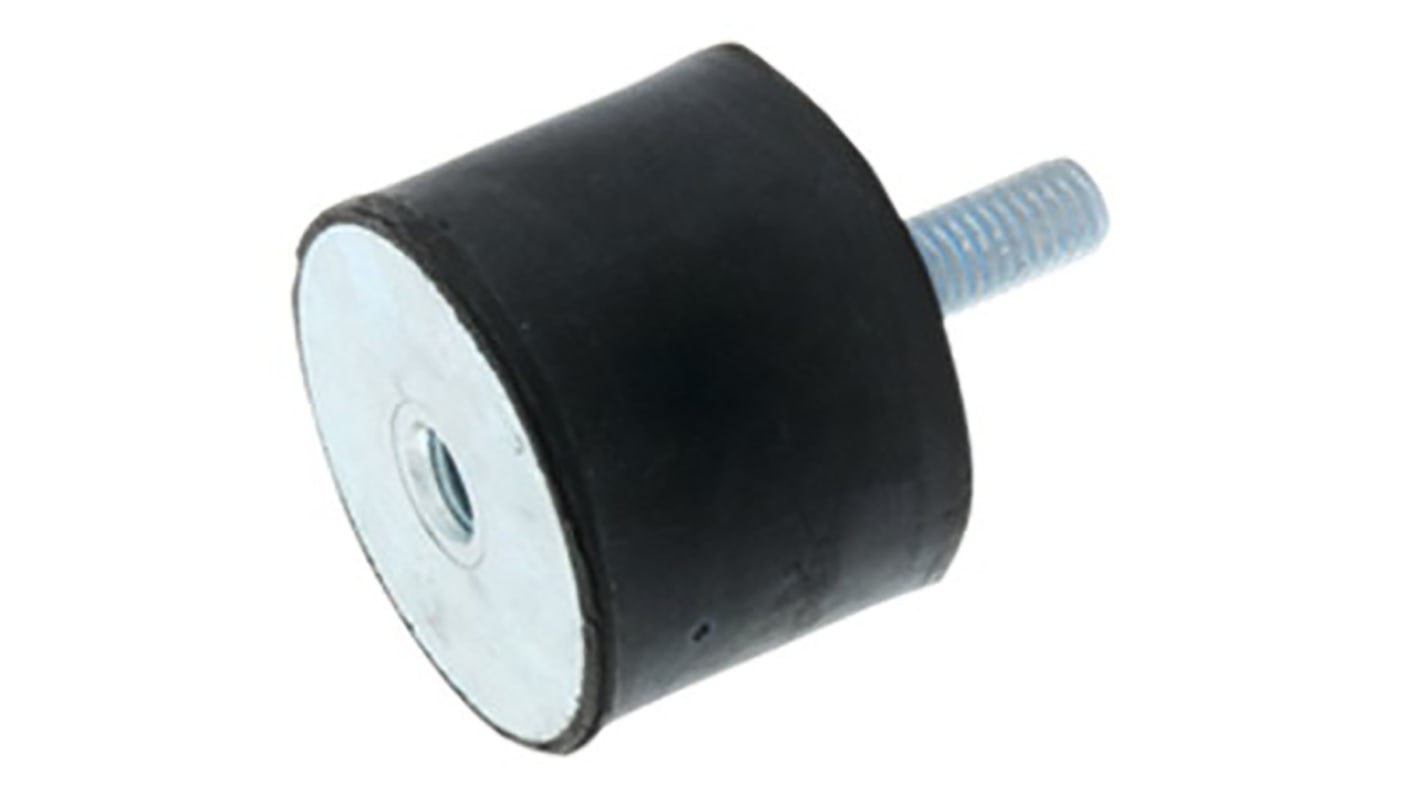

RS Pro Cylindrical Male - Female Anti-Vibration Mounts

RS Pro cylindrical male to female anti-vibration mounts made from a natural rubber designed to be simple and economical to fix. The anti-vibration mounts achieve high vibration damping in both shear and compression.

Suitable Applications:

Large static generator engines
Compressors
Motors
Electronic control panels
Engine Mounts

RS Pro Anti-Vibration Mounts

Specifications

Attribute	Value
Anti Vibration Mount Type	Male to Female Bobbin
Thread Size	M5
Diameter	16mm
Overall Height	15mm
Material	Natural Rubber
Metalwork	Zinc Plated Steel
Compression Load	16kg
Shore Hardness	55 Shore A
Series	AV Type B
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Compression Deflection	1.5mm
Shearing Load	5.7kg
