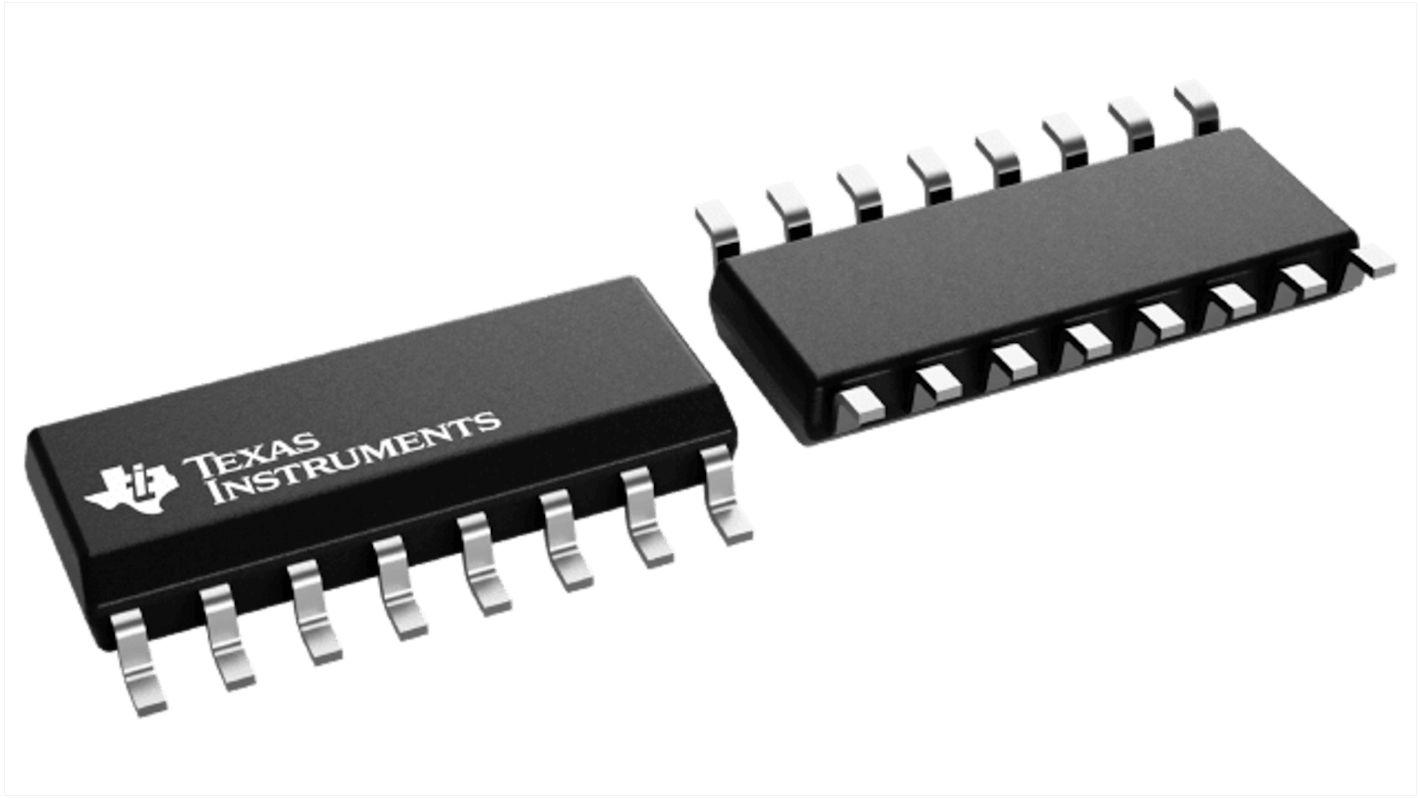

Texas Instruments 1 12 bit- ADC 200 ksps, 16-Pin SOIC
- RS Stock No.:
- 252-8897
- Mfr. Part No.:
- TLV2544ID
- Brand:
- Texas Instruments
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£23.43
(exc. VAT)
£28.12
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 28 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £23.43 |
| 5 - 9 | £22.26 |
| 10 - 24 | £20.01 |
| 25 - 49 | £18.02 |
| 50 + | £17.52 |
*price indicative
- RS Stock No.:
- 252-8897
- Mfr. Part No.:
- TLV2544ID
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | ADC | |
| Architecture | SAR | |
| Number of ADCs | 1 | |
| Resolution | 12 bit | |
| Sampling Rate | 200ksps | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 16 | |
| Minimum Operating Temperature | -40°C | |
| Interface Type | Serial | |
| Maximum Operating Temperature | 85°C | |
| Maximum Supply Voltage | 5.5V | |
| Standards/Approvals | REACH, RoHS | |
| Minimum Supply Voltage | 2.7V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type ADC | ||
Architecture SAR | ||
Number of ADCs 1 | ||
Resolution 12 bit | ||
Sampling Rate 200ksps | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 16 | ||
Minimum Operating Temperature -40°C | ||
Interface Type Serial | ||
Maximum Operating Temperature 85°C | ||
Maximum Supply Voltage 5.5V | ||
Standards/Approvals REACH, RoHS | ||
Minimum Supply Voltage 2.7V | ||
Automotive Standard No | ||
The Texas offers a TLV series are a family of high performance with 12-bit low power, CMOS analog-to-digital converters which operate from a single 2.7-V to 5.5-V power supply. In addition to a high-speed A/D converter and versatile control capability, these devices have an on-chip analog multiplexer that can select any analog inputs or one of three internal self-test voltages.
Maximum throughput 200 ksps
Single wide range supply 2.7 Vdc to 5.5 Vdc
Low operating current
