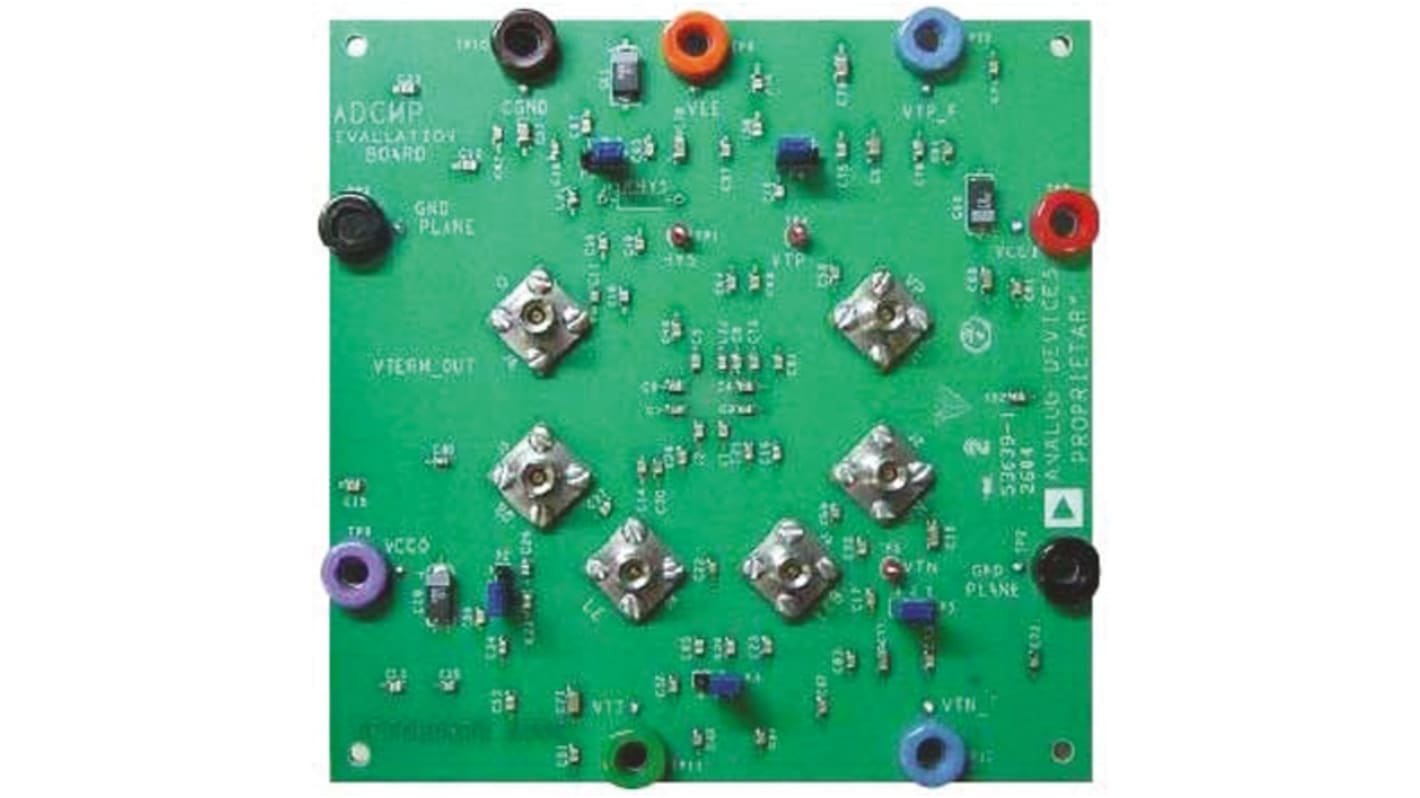

Analog Devices EVAL-ADCMP580BCPZ, Comparator Evaluation Board for ADCMP580
- RS Stock No.:
- 832-9494
- Mfr. Part No.:
- EVAL-ADCMP580BCPZ
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 832-9494
- Mfr. Part No.:
- EVAL-ADCMP580BCPZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Analogue Function | Comparator | |
| Kit Classification | Evaluation Board | |
| Featured Device | ADCMP580 | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Analogue Function Comparator | ||
Kit Classification Evaluation Board | ||
Featured Device ADCMP580 | ||
Evaluation Board for ADCMP572/573/580/581/582 Comparator, Analog Devices
The EVAL-ADCMP57xBCPZ and EVAL-ADCMP58xBCPZ evaluation boards, from Analog Devices, are designed to evaluate the ADCMP57x and ADCMP58x families. The ADCMP57x and ADCMP58x devices are ultrafast comparators. This range of comparators represents state of the art, general-purpose comparator technology. It is therefore important to evaluate their performance characteristics with the highest band-width components available.
The EVAL-ADCMP57xBCPZ and EVAL-ADCMP58xBCPZ boards are fabricated using a high quality dielectric material between the ground plane and signal layers in order to maintain high signal integrity. All input and output signals are brought on to the board with 2.9 mm RF connectors, and transmission line paths are kept as close to 50 Ω as possible.
The EVAL-ADCMP57xBCPZ and EVAL-ADCMP58xBCPZ boards are fabricated using a high quality dielectric material between the ground plane and signal layers in order to maintain high signal integrity. All input and output signals are brought on to the board with 2.9 mm RF connectors, and transmission line paths are kept as close to 50 Ω as possible.
