RS PRO Analogue Panel Ammeter DC, 68mm x 68mm, 1 % Moving Coil
- RS Stock No.:
- 186-2498
- Brand:
- RS PRO
Available to back order for despatch 09/07/2024
Added
Price Each
£20.85
(exc. VAT)
£25.02
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £20.85 |
| 5 - 9 | £19.81 |
| 10 + | £18.77 |
- RS Stock No.:
- 186-2498
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IN
Product Details

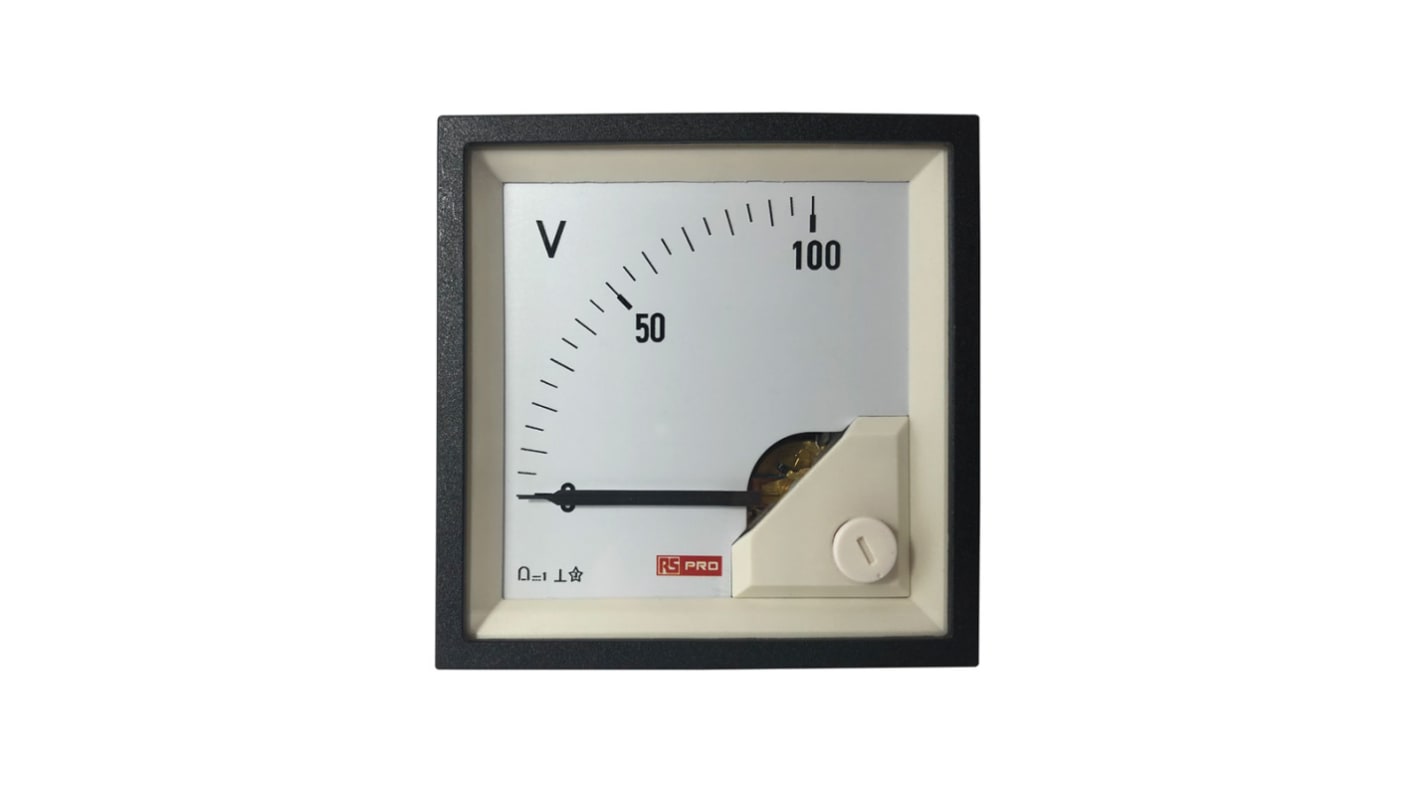

RS PRO DC Analogue Panel Voltmeter
The RS PRO 68mm x 68mm cut-out DC analogue panel voltmeter has a measurement range of 0V to 100V input. The DIN 72 style panel meter comprises permanent magnet moving coil movements and indicates an average value. The moving coil movement consists of a magnet, an aluminium coil suspended on pivots, a hairspring, and a jewel mechanism. The scales are linear and calibrated down to zero. High currents are measured with separate shunts attached on the rear side of the meter. The meter is housed in a moulded polycarbonate case.
Features and Benefits
• Operating temperature ranges between -10°C and 65°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: 0° to 90°
• DC voltmeter nominal range of use: 15mV to 600V
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: 0° to 90°
• DC voltmeter nominal range of use: 15mV to 600V
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 1.2 times nominal voltage (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
Specifications
Attribute | Value |
|---|---|
| Current Type | DC |
| Moving Element | Moving Coil |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
| Depth | 54 (<4 A) mm, 67 (5 → 60 A) mm, 67 (60 → 100 A) mm |
| Meter Accuracy | 1 % |
| Minimum Temperature | -10°C |
| Maximum Temperature | +65°C |
