RS PRO RS PRO Analogue Panel Ammeter 100 A DC, 68 mm x 68 mm, 1 % Moving Coil

View all Ammeters
Bulk discount available

Subtotal (1 unit)*

£21.69

(exc. VAT)

£26.03

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 18 unit(s) shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£21.69
5 - 9£20.60
10 +£19.52

*price indicative

RS Stock No.:
186-2497
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Analogue Panel Ammeter

Current Type

DC

Moving Element

Moving Coil

Cutout Height

68mm

Cutout Width

68mm

Depth

67mm

Meter Accuracy

1 %

Maximum Operating Temperature

65°C

Minimum Operating Temperature

-10°C

Maximum Ampere Value

100 A

Standards/Approvals

EN 61010, UL 94 V-0, VDE 0100-410:2018-10, DIN 43802, DIN 43701, DIN 43807, 2014/30/EC, IEC51/DINEN60051, DIN 46200/46282, DIN 43718, 2014/35/EC, DIN IEC 61554, ISO 20653:2006-08, IEC 529, CE, IEC 61010, 93/68/EEC, VDE / VDI 3540

Maximum Measurement

600 V dc, 1000 V ac

Series

RS PRO

RoHS Status: Exempt

COO (Country of Origin):
IN

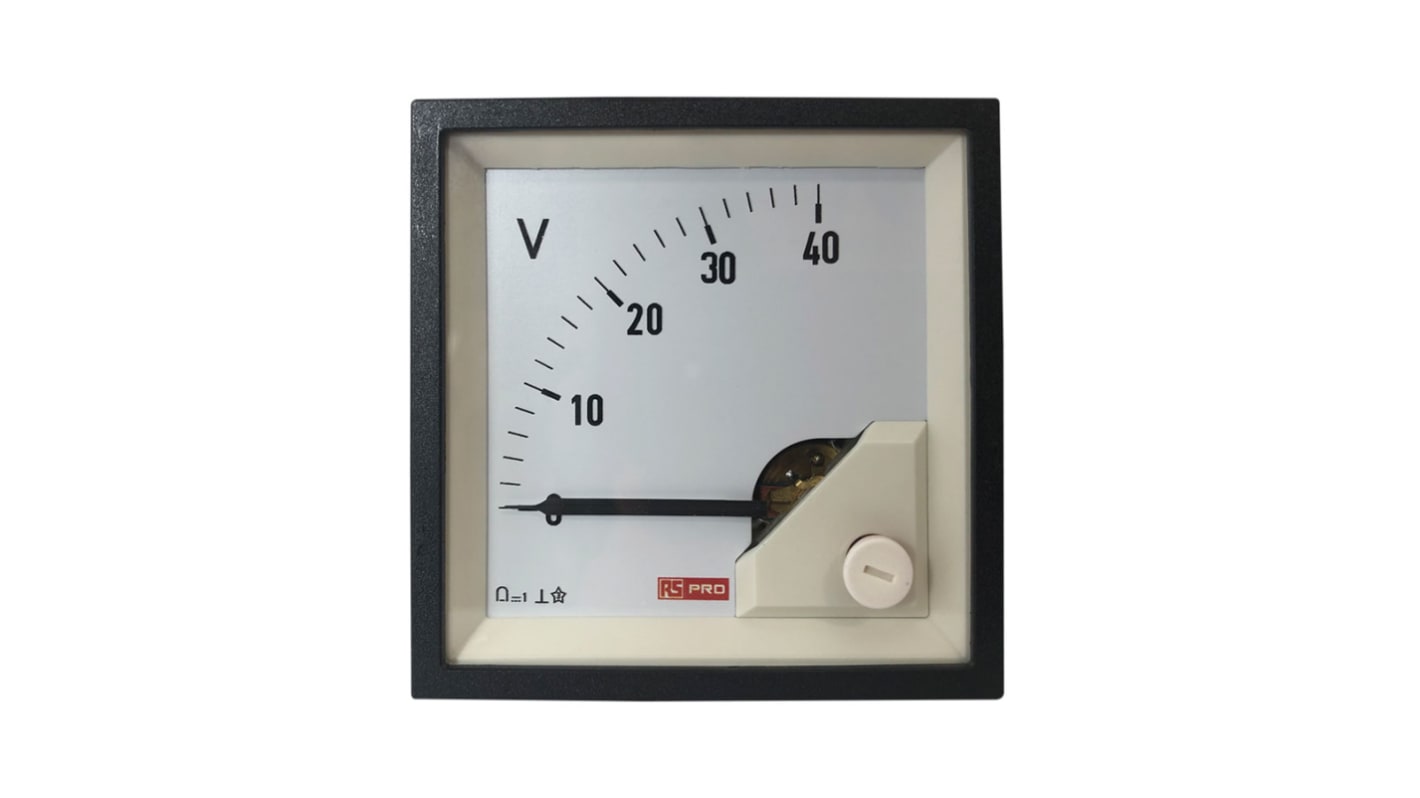

RS PRO DC Analogue Panel Voltmeter


The RS PRO 68mm x 68mm cut-out DC analogue panel voltmeter has a measurement range of 0V to 40V input. The DIN 72 style panel meter comprises permanent magnet moving coil movements and indicates an average value. The moving coil movement consists of a magnet, an aluminium coil suspended on pivots, a hairspring, and a jewel mechanism. The scales are linear and calibrated down to zero. High currents are measured with separate shunts attached on the rear side of the meter. The meter is housed in a moulded polycarbonate case.

Features and Benefits


• Operating temperature ranges between -10°C and 65°C

• Accuracy: 1%

• Pointer: Knife-edge type

• Pointer deflection: 0° to 90°

• DC voltmeter nominal range of use: 15mV to 600V

• Shock resistance: 15g for pulse duration 11 milliseconds

• Moulded square case suitable for mounting control/switchgear panels in machinery consoles

• Overload: 1.2 times nominal voltage (continuous)

• Relative humidity: Less than 75% annual average (noncondensing)

Certifications


• UL 94 V-0 approved

• 2014/30/EC (EMC directive)

• 2014/35/EC (low voltage directive)

• CE certified

• IP52 rated

• EN 61010

• VDE 0100-410: 2018-10 approved

• IEC 529

• IEC 61010

• ISO 20653: 2006-08
